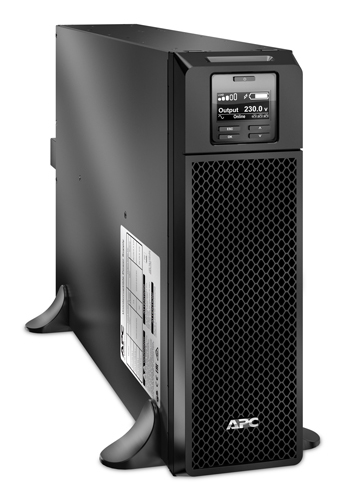

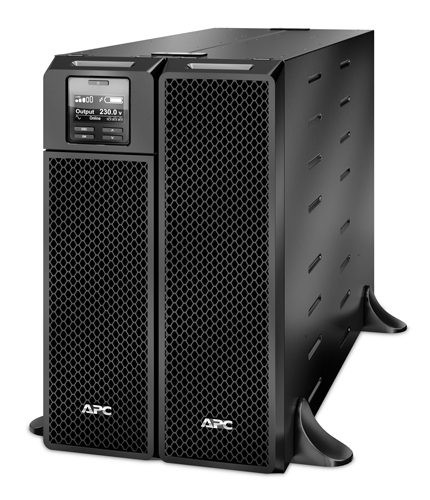

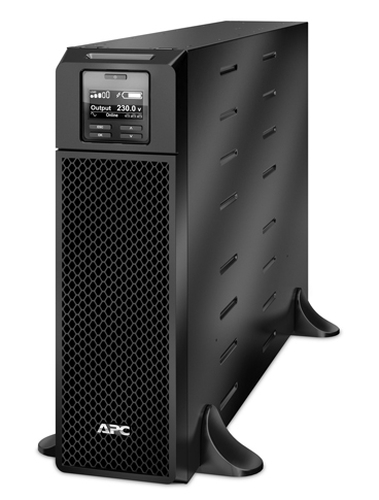

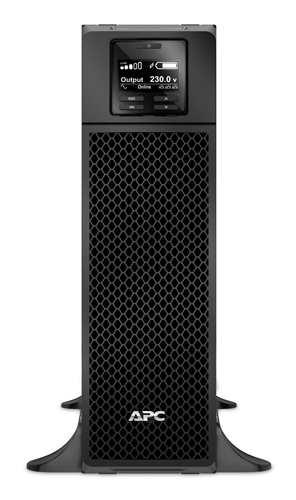

APC Smart-UPS On-Line uninterruptible power supply (UPS)
APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
- Brand
- APC HW
- Product code
- SRT5KXLI
- SKU
- MYWGQTXZ7MMB8
- EAN/GTIN
- 731304301615
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Sine
- 12 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Black
€5321.05
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 4500 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 480 J |
| Efficiency | 94.1% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |

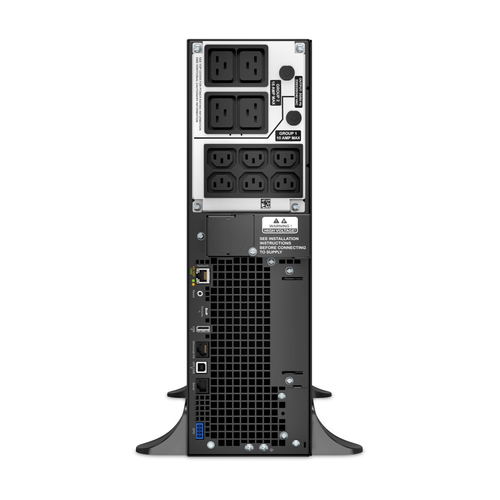

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Terminal |
| AC outlets quantity | 12 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 845 VAh |

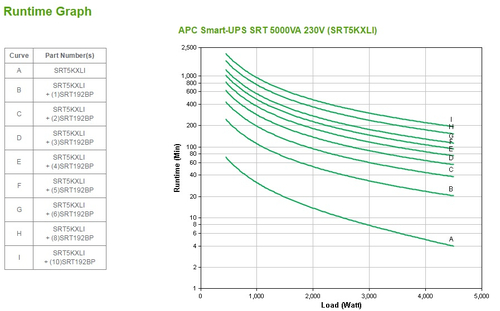

| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11.8 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| International Protection (IP) code | IP20 |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 719 mm |
| Height | 432 mm |
| Weight | 54.4 kg |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 63.6 kg |
| Packaging data | |
| Cables included | USB cable |
| Temperature sensor | Yes |
| Quick installation guide | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Packaging content | Comms cable Removable support feet Web/SNMP Management Card |
