APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
- Brand
- APC HW
- Product code
- BK500EI
- SKU
- ILQUIJ31UHPPQ
- EAN/GTIN
- 731304016359
- Standby (Offline)
- 0.5 kVA 300 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 7 Ah
- Tower Beige
Product Info
The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Key features:
- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Battery-protected and surge-only outlets
- Dataline Surge Protection
- Hot-swappable batteries
- LED status indicators
- Power conditioning
- Resettable circuit breakers
- Safety-agency approved
- Transformer-block spaced outlets
- User-replaceable batteries
| Features | |
|---|---|
| UPS topology | Standby (Offline) |
| Output power capacity | 0.5 kVA |
| Output power | 300 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 47 - 63 Hz |
| Surge energy rating | 310 J |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Efficiency | 99% |
| Noise level | 40 dB |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Ports & interfaces | |

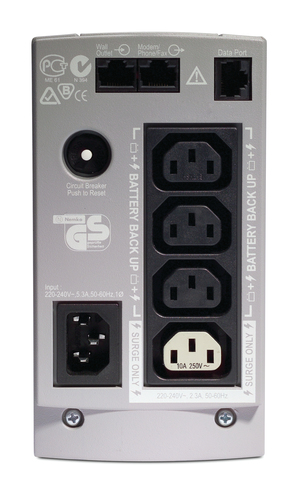

| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery capacity | 83 VAh |
| Battery voltage | 12 V |

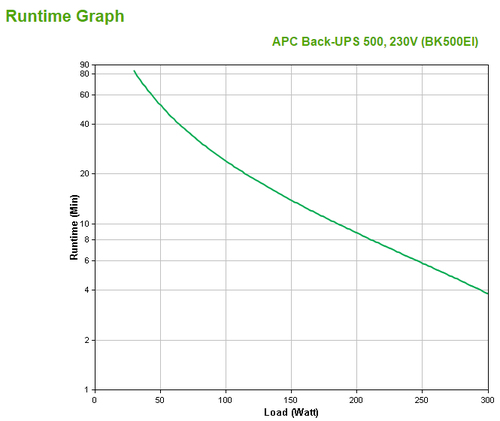

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 13.8 min |
| Battery life (max) | 6 year(s) |
| Battery recharge time | 8 h |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Cable length | 1.83 m |
| Product colour | Beige |
| LED indicators | Battery replacement |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR, Green Premium, RoHS |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 284 mm |
| Height | 165 mm |
| Weight | 6.32 kg |
| Package width | 241 mm |
| Package depth | 368 mm |
| Package height | 178 mm |
| Package weight | 7.05 kg |
| Packaging data | |
| Cables included | Phone (RJ-11), USB cable |
| Quick installation guide | Yes |
| Warranty card | Yes |
| Software CD | Yes |

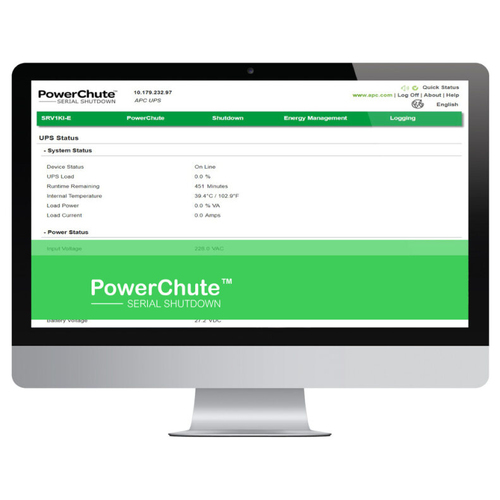

| Bundled software | PowerChute Personal Edition |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Filtering | Yes |
| Packaging content | Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord |
