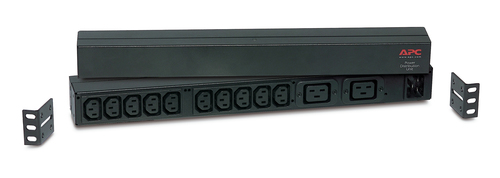

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black
- Brand
- APC HW
- Product code
- AP9559
- SKU
- WD8K6KFTDTV9W
- EAN/GTIN
- 731304123521
- Single-phase Basic 0U/1U Black
- 12 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
Product Info
Description:
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| I/O ports | Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20 |
| Features | |
| Cable length | 2.5 m |
| Power | |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 447 x 57.2 x 44.5 mm |
| Weight | 980 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
