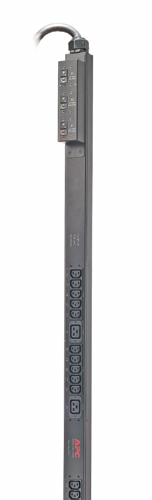

APC Rack PDU,Basic,Zero U,12.5kW power distribution unit (PDU)
AP7568 - 7313042268332
APC Rack PDU,Basic,Zero U,12.5kW power distribution unit (PDU) Black
- Brand
- APC HW
- Product code
- AP7568
- SKU
- ZSBBY7APZFTJE
- EAN/GTIN
- 7313042268332
€841.39
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Rack PDU,Basic,Zero U,12.5kW,208V,(30)C13,(6)C19;3' Cord
APC Rack PDU,Basic,Zero U,12.5kW. Product colour: Black. Input connection type: Hubbell CS8365C, Output connections: -(30) IEC 320 C13. -(6) IEC 320 C19. . Cable length: 0.91 m. Nominal input voltage: 208 V, Nominal output voltage: 208 V, Load capacity: 12500 VA. Certification: cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.

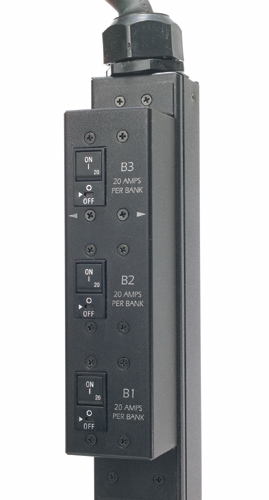

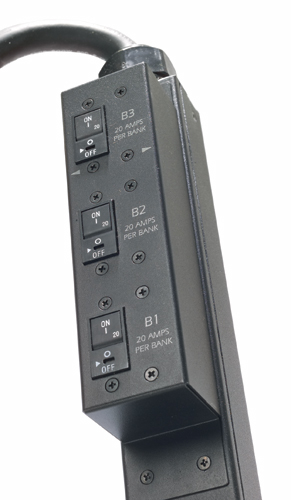

-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.
Specifications
Design
Product colour
Black
Ports & interfaces

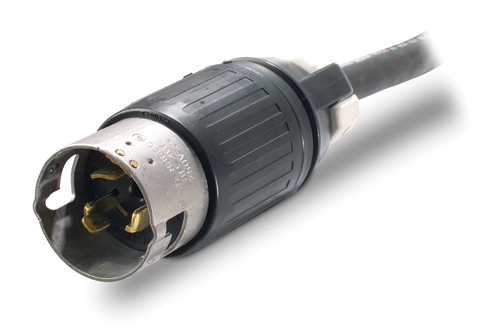

Input connection type
Hubbell CS8365C
Output connections

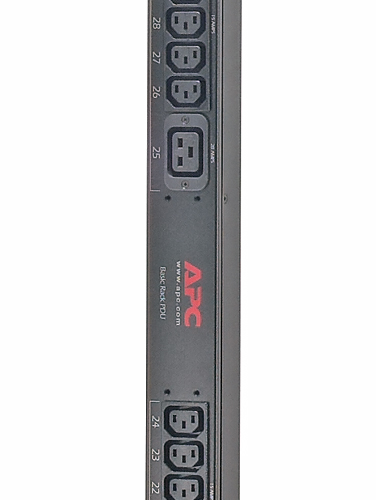

-(30) IEC 320 C13.
-(6) IEC 320 C19.
Features
Cable length
0.91 m
Certification
cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Power
Nominal input voltage
208 V
Nominal output voltage
208 V
Load capacity
12500 VA
Maximum input current per phase
35 A
Maximum total current draw per phase
35 A
Weight & dimensions
Dimensions (WxDxH)
56 x 89 x 1778 mm
Weight
6.95 kg
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
