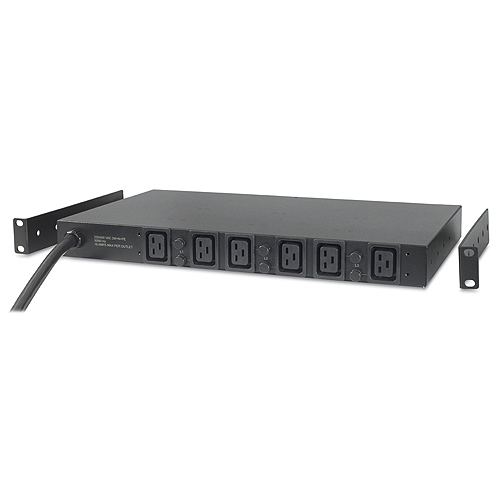

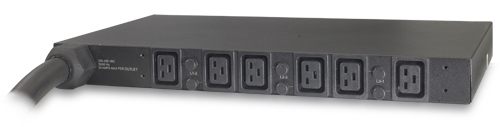

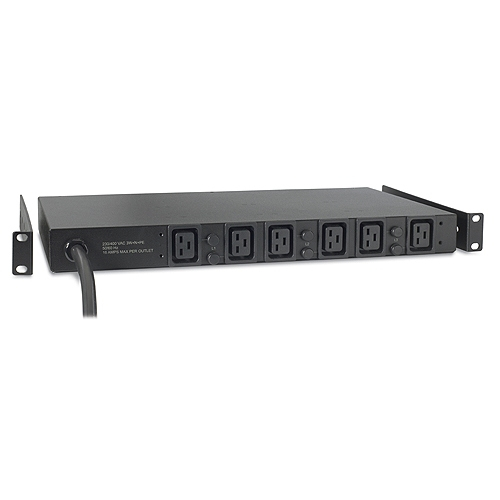

APC Basic Rack 14.4kW power distribution unit (PDU) Black
- Brand
- APC HW
- Product code
- AP7516
- SKU
- PMAVV10FA0G0W
- EAN/GTIN
- 731304232674
Product Info
-High Power Density.
-Horizontal mounting capability.

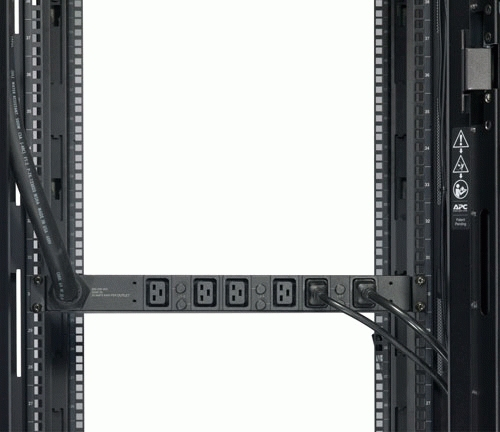

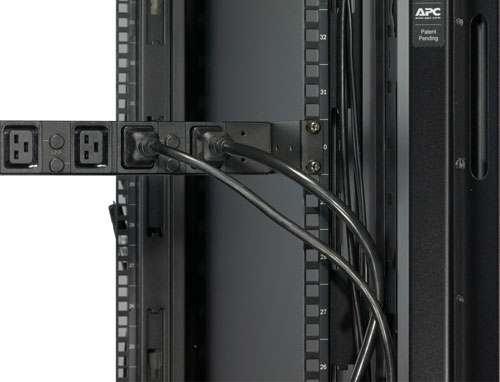

-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
| Input connection type | Hubbell CS8365C |
| Output connections | (6) IEC 320 C19 |
| Features | |
| Cable length | 2.44 m |
| Power | |
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current per phase | 50 A |
| Maximum total current draw per phase | 40 A |
| Weight & dimensions | |
| Dimensions (WxDxH) | 437 x 254 x 44 mm |
| Weight | 7.98 kg |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
