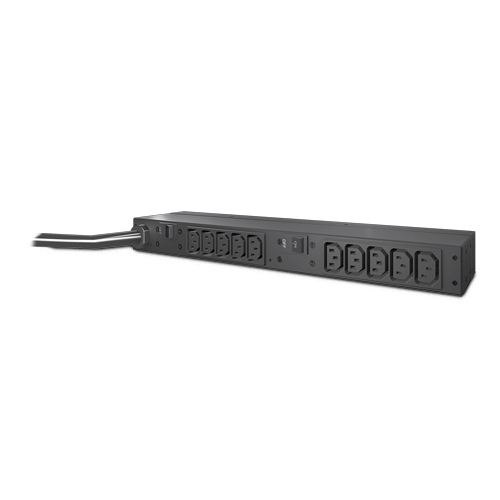

APC AP9571A power distribution unit (PDU)
AP9571A - 731304272755
APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13
- Brand
- APC HW
- Product code
- AP9571A
- SKU
- ORUBX3NKJVMKM
- EAN/GTIN
- 731304272755
€333.76
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Rack PDU, Basic, 1U, 30A, 208V, (10) C13
APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13. Product colour: Grey. Input connection type: NEMA L6-30P. Cable length: 3.66 m. AC input frequency: 60 Hz, Nominal output voltage: 208 V, Maximum total current draw per phase: 24 A. Width: 445 mm, Depth: 77 mm, Height: 44 mm
- Input: 200V, 208V, 230V
- Input Connections: NEMA L6-30P
- Cord Length: 12 feet ( 3.66 meters )
- Output: 208V
Specifications
Design
Product colour
Grey
Ports & interfaces
Input connection type
NEMA L6-30P
Features
Cable length
3.66 m
Power
AC input frequency
60 Hz
Nominal output voltage
208 V
Maximum total current draw per phase
24 A
Weight & dimensions
Dimensions (WxDxH)
445 x 77 x 44 mm
Weight
2.55 kg
Operational conditions
Operating temperature (T-T)
-15 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
