DELL 403-BBMF interface cards/adapter
DELL 403-BBMF interface cards/adapter Internal Fiber
- Brand
- Broadcom
- Product code
- LPE31002-M6
- SKU
- YXOYUE6FCU8A2
- EAN/GTIN
- 706947011351
- Internal
- Host interface: PCIe
- Output interface: Fiber
- Purpose: Server
- Green
€2255.57
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

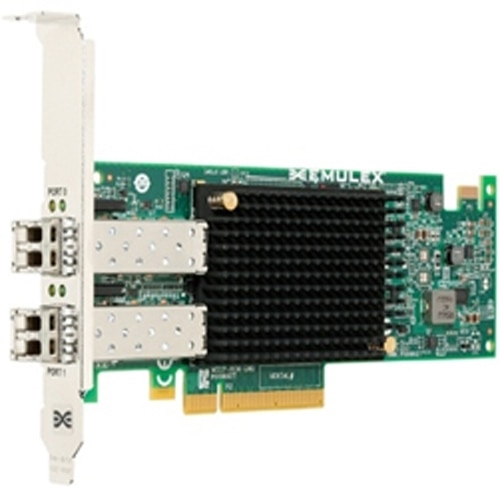

The Emulex LPe31002-M6-D Host Bus Adapter from Dell ™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with up to 2x better IOPS performance per watt, which makes Dell 16GB Fibre Channel (16GFC) host bus adapters the clear choice for the toughest virtualized, cloud and mission critical deployments.
- Doubling the maximum FC link rate 16GFC and enhanced virtualization capabilities help support IT "green" initiatives
- Frame-level multiplexing\increases link efficiency and maximizes HBA performance
- Accelerates network access to SSDs with NVMe over Fiber Channel ready feature- supports the upcoming NVMe over FC T11 standard
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Fiber |
| Expansion card standard | PCIe 3.0 |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Purpose | Server |
| Certification | CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Packaging data | |
| Quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Data transfer rate | 14.025 Mbit/s |
| Ports quantity | 2 |
| Data link protocols | 16Gb Fibre Channel |
| Connectivity technology | Wired |
| Compatible operating systems | SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Compatibility | - PowerEdge R630 - PowerEdge R730 - PowerEdge T630 - PowerEdge R730XD - PowerEdge R530 - PowerEdge R930 - PowerEdge R640 - PowerEdge R740 - PowerEdge R940 - PowerEdge R740XD - PowerEdge R440 - PowerEdge T640 - PowerEdge R540 - PowerEdge R7415 - PowerEdge R7425 - PowerEdge R840 - PowerEdge R940xa - PowerVault ME4012 - PowerVault ME4024 - PowerVault ME4084 - PowerEdge R7515 - PowerEdge R7525 |
