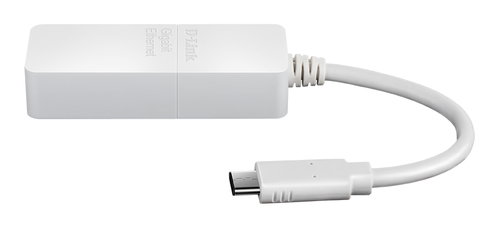

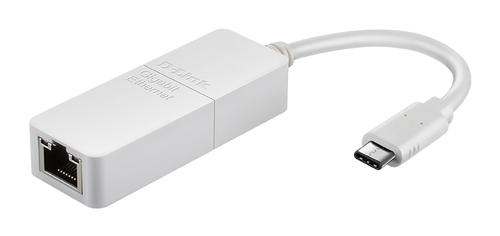

D-Link USB-C to Gigabit Ethernet Adapter
- Brand
- D-Link
- Product code
- DUB-E130
- SKU
- 4XAC71PF5GXTT
- EAN/GTIN
- 790069437786
- Achieve transfer speeds of up to 1Gbps
- Status LEDs for connection status and data transfer speed
- USB Type-C 3.0 with simple installation, no additional hardware or software installation required
- Dynamic Power Management - reduces power consumption during times of light traffic, when idle, or when the Ethernet cable is unplugged
Product Info
GIGABIT ETHERNET CONNECTIVITY
The DUB-E130 USB-C to Gigabit Ethernet Adapter plugs into any available USB Type-C port on your computer to enable you to connect to an Ethernet network at speeds up to 1Gbps which is up to ten times faster transfer speeds compared to previous standards. HIgh-speed Gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device.
EASY TO INSTALL AND USE

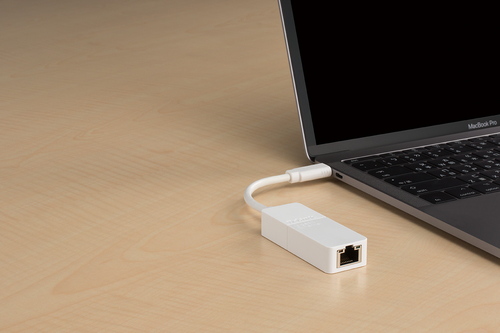

The DUB-E130 USB-C to Gigabit Ethernet Adaper connects to your computer's USB Type-C port and is ready to run as soon as it's plugged in. Plug-and-Play design ensures that there is no need to change any configuration settings or install any software on your computer.
ERERGY-SAVING FUNCTIONAILITY
Power to the DUB-E130 is provided directly by the USB Type-C port, eliminating the need for an external AC power adapter. The DUB-E130 not only supports the USB3.0 standard's power-saving features, but also incldues an energy-saving suspend and resume function to minimize power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. This feature is especially useful in helping to conserve battery life, allowing you to keep working for longer without needing to recharge.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Design | |
| Product colour | White |
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Link, Speed |
| Certification | CE, FCC |
| Power | |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Power consumption | 176 mA |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 26.5 mm |
| Depth | 205 mm |
| Height | 15 mm |
| Weight | 28 g |
| Packaging data | |
| Package width | 138 mm |
| Package depth | 138 mm |
| Package height | 30 mm |
| Package weight | 99 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Shipping (inner) case net weight | 1.4 kg |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case height | 30.2 cm |
| Shipping (inner) case width | 28.6 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Pallet gross weight (air) | 166.8 kg |
| Master (outer) cases per pallet (air) | 27 pc(s) |
| Products per pallet (air) | 1080 pc(s) |
| Pallet height (air) | 120 cm |
| Pallet gross weight (sea) | 298.8 kg |
| Master (outer) cases per pallet (sea) | 51 pc(s) |
| Products per pallet (sea) | 2040 pc(s) |
| Pallet height (sea) | 192 cm |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
