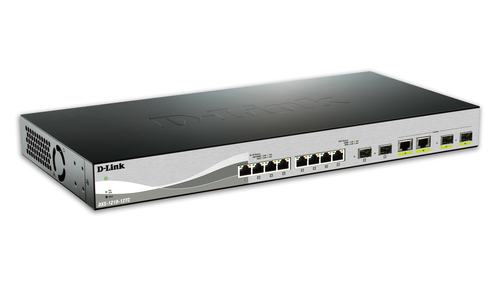

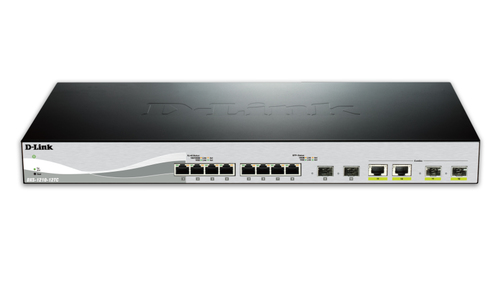

D-Link 8-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch
- Brand
- D-Link
- Product code
- DXS-1210-12TC
- SKU
- 7FASLNVNZ96DE
- EAN/GTIN
- 790069409332
- Managed L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12
- 10G support
- MAC address table: 16000 entries Switching capacity: 240 Gbit/s
- 1U Rack mounting
Product Info
10 Gigabit Ethernet For Everyone
10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link’s DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.
Enterprise Functionality at Small Business Prices
Our DXS-1210 switches are a cost-effective solution capable of servicing a range of network needs in businesses of any size.
Flexibility without Compromise
Supporting 10 GBASE-T / SFP+ combo ports, they provide flexibility across a network allowing easier network integration, and with high-performance and low latency they fulfil the need for virtualisation, cloud services and server-to-server applications - perfect for small to medium sized businesses.
High Performance and Low Latency
D-Link’s DXS-1210 Series specifically delivers up to 238* Mbps Maximum Packet Forwarding Rate enabling simultaneous traffic processing on all ports at line rate without any packet loss.
Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.
Advanced Green Technology
The DXS-1210 Switch Series offers advanced green technology without sacrificing performance or functionality. We take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 240 Gbit/s |
| Throughput | 178.56 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Safety | cUL, CB, CE, CCC, BSMI |
| Certification | CE, FCC, C-Ticket, VCCI, BSMI, CCC |
| Technical details | |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case net weight | 13.4 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 278.2 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 54 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 451.2 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Products per pallet (sea) | 90 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 14.4 kg |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 90.81 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 3.15 kg |
| Packaging data | |
| Package width | 349 mm |
| Package depth | 546 mm |
| Package height | 96 mm |
| Package weight | 4.48 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
