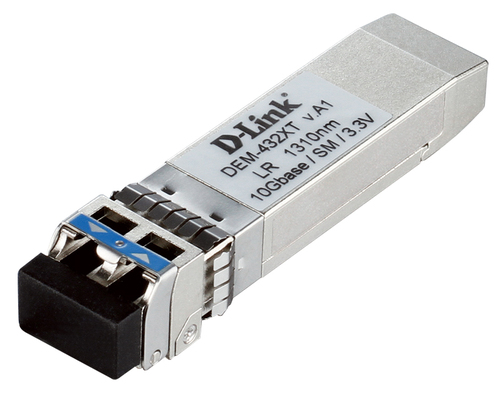

D-Link DEM-432XT network transceiver module
D-Link 10GBase-LR SFP+ Transceiver, 10km
- Brand
- D-Link
- Product code
- DEM-432XT
- SKU
- 68VM4UC9QX7DQ
- EAN/GTIN
- 790069353208
€289.53
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -8.5 dBmW |
| Tx power (max) | 0.5 dBmW |
| Rx power (min) | -12.6 dBmW |
| Rx power (max) | 0.5 dBmW |
| Networking standards | IEEE 802.3ae |
| Features | |
| Safety | UL, TUV, CDRH |
| Certification | CE, FCC, VCCI |
| Power | |
| Maximum voltage | 3.3 V |
| Maximum current | 300 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14.8 mm |
| Depth | 11.8 mm |
| Height | 56.5 mm |
| Weight | 19.5 g |
| Packaging data | |
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 272 kg |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 272 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85369010 |
