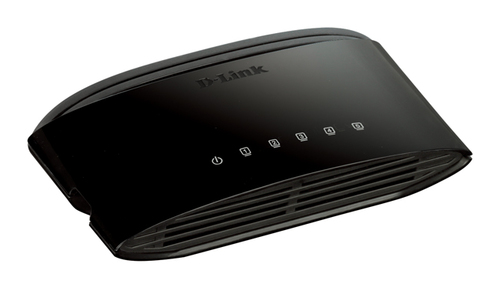

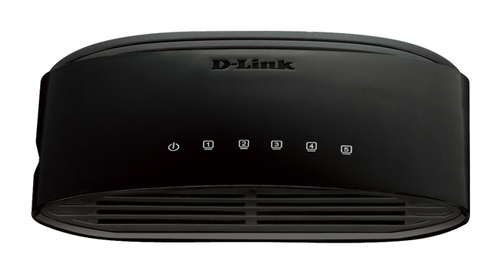

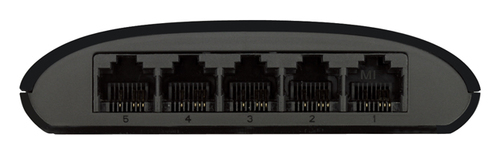

D-Link 5-Port Fast Ethernet Unmanaged Desktop Switch
- Brand
- D-Link
- Product code
- DES-1005D/B
- SKU
- G3Z8NLX7LYRZI
- EAN/GTIN
- 790069219887
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- 100BASE-TX, 10BASE-T
- MAC address table: 2000 entries Switching capacity: 1 Gbit/s
- AC Power supply included
Product Info
The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch is a five port fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1005D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Auto-Sensing 10/100 Ports
The DES-1005D 5-Port Fast Ethernet Unmanaged Desktop Switch uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| MAC address table | 2000 entries |
| Protocols | |
| Switching protocols | CSMA/CD |
| Data link protocols | Ethernet, Fast Ethernet |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Input current | 1.2 A |
| Input voltage | 5 V |
| Power consumption (max) | 3.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 125.3 mm |
| Depth | 83.4 mm |
| Height | 29.1 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
