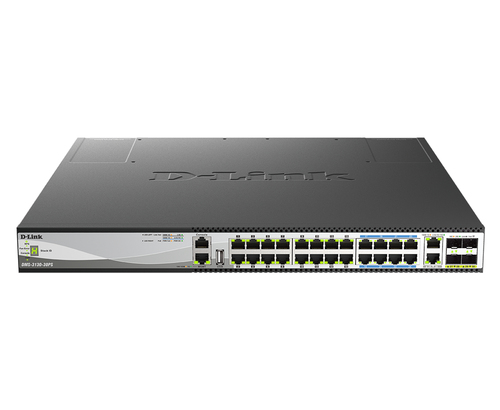

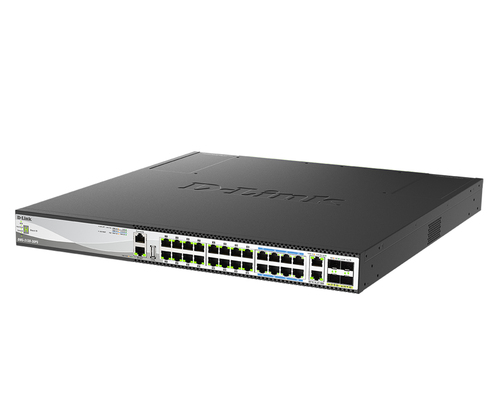

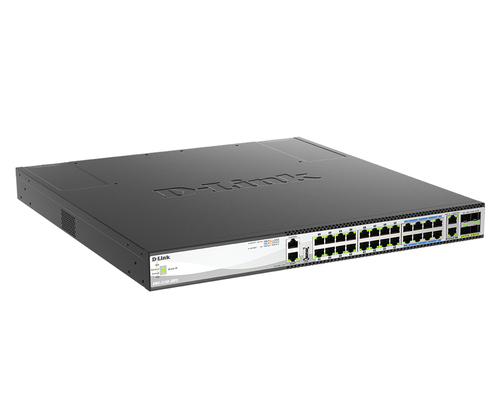

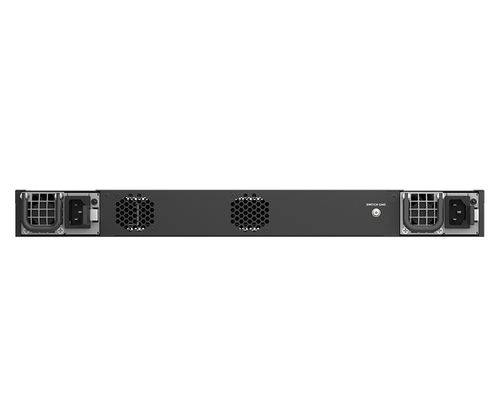

D-Link DMS-3130-30TS network switch

Management features

Switch type Managed

Switch layer L3

Quality of Service (QoS) support Yes

Web-based management Yes

System event log Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 2

Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)

10G Ethernet (copper) ports quantity 2

SFP module slots quantity 24

Console port RJ-45

USB 2.0 ports quantity 1

Power connector AC-in jack

Network

Networking standards IEEE 802.11ad, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1p, IEEE 802.11d, IEEE 802.1s, IEEE 802.1AX, IEEE 802.3x, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x

10G support Yes

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Spanning tree protocol Yes

Ethernet Ring Protection Switching (ERPS) Yes

Fast leave Yes

VLAN support Yes

Virtual LAN features Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, Voice VLAN, Multicast VLAN, Private VLAN

Number of VLANs 4000

Data transmission

Switching capacity 360 Gbit/s

Forwarding rate 268 Mpps

MAC address table 32768 entries

Number of queues 8

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping

Access Control List (ACL) Yes

Access Control List (ACL) egress 512

Access Control List (ACL) ingress 2048

IGMP snooping Yes

IGMP entries 1024

Static port security Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

Authentication Guest VLAN

Root protection Yes

DoS attack prevention Yes

Authentication type RADIUS, TACACS+

Queue scheduling algorithms Weighted Round Robin (WRR), Weighted random early detection (WRED), Strict Priority Queue (SPQ)

Packet filtering L3

Multicast features

Multicast support Yes

MLD entries 64

Protocols

GARP VLAN Registration Protocol (GVRP) Yes

Routing protocols OSPFv2, RIPng, OSPFv3, RIP-1, RIP-2

Design

Stackable Yes

Product colour Black

Number of fans 3 fan(s)

Safety CB, cUL, BSMI, CCC

Certification FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC

Performance

Physical stacking (units) 9

Virtual stacking (units) 32

Noise level 52.5 dB

sFlow Yes

Mean time between failures (MTBF) 270340 h

Power

Power source AC

Power supply included Yes

Redundant power supply (RPS) support Yes

AC input voltage 100 - 240 V

Power consumption (max) 74.26 W

Surge protection Yes

Surge protection voltage 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 253.38 BTU/h

Weight & dimensions

Width 440 mm

Depth 250 mm

Height 250 mm

Weight 3.63 kg
