• InfiniteFix Product Image

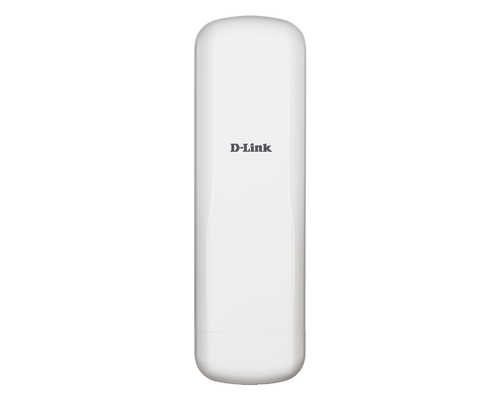

D-Link DAP-3711 wireless access point

D-Link 5km Long Range Wireless AC Bridge


Brand
D-Link
Product code
DAP-3711
SKU
WEJ0DVBMNY10J
EAN/GTIN
790069457272
  • Features high-gain 15 dBi directional antenna supplying high-speed, stable coverage to up to 5 km away
  • Integrated TDMA Technology cuts through interference to ensure high-speed, consistent coverage
  • Superior throughput with single-band transfer speeds of up to 867 Mbps
  • Refined design effortlessly blends into any setting
  • Supports WPA2™ - Wi-Fi security for more protection
  • Support for Power over Ethernet means less wires, for cleaner and easier deployment
  • Features an IP66 rating, boasting water-resistant and dust-tight housings
€210.64 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Highlights
The DAP-3711 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.

TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3711 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3711 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3711 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.

Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.

Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3711 features state-of-the-art hardware, including a high-gain 15 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 5 km away.

Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

Features
5 GHz Yes
Maximum data transfer rate 867 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Ethernet LAN data rates 100,1000 Mbit/s
Frequency band 5.745 - 5.825 GHz
Bandwidth 0.08 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Channels quantity 2 channels
Fit AP mode features Wireless distribution system (WDS)
VLAN support Yes
Maximum outdoor range 5000 m
Transmitting power (CE) 27 dBm
Security
Security algorithms 128-bit AES
MAC address filtering Yes
IP address filtering Yes
Service Set Identifier (SSID) features SSID broadcast
DHCP snooping Yes
Management features
Syslog Yes
Firmware upgradeable Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) Yes
AC input voltage 24 V
Power consumption (typical) 15 W
Design
Placement Pole
Product colour White
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP66
Reset button Yes
LED indicators LAN, Power, Signal strength, WLAN
Certification CE, FCC
Antenna
Antenna type Internal
Antenna gain level (max) 15 dBi
Weight & dimensions
Width 288 mm
Depth 45 mm
Height 88 mm
Weight 600 g
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) -40 - 65 °C
Storage temperature (T-T) -40 - 85 °C
Storage relative humidity (H-H) 0 - 90%
Logistics data
Harmonized System (HS) code 85176990
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
