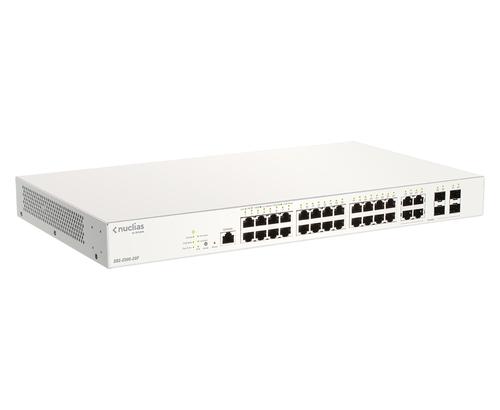

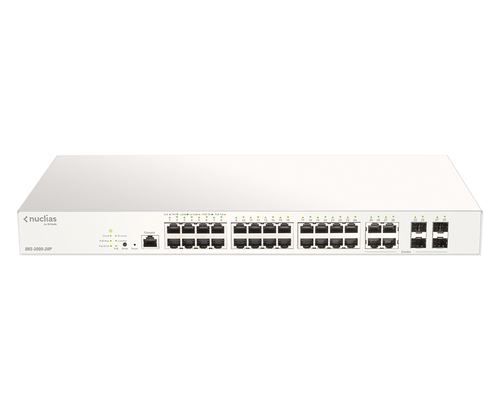

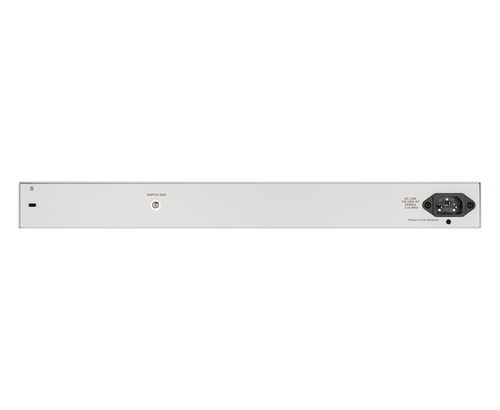

D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 193W
- Brand
- D-Link
- Product code
- DBS-2000-28P
- SKU
- 9R4R29QGFYYGR
- EAN/GTIN
- 790069442964
- 24 x 10/100/1000BASE-T PoE ports
- 4 x 10/100/1000BASE-T ports
- 193W PoE power budget
- Supports IEEE 802.3at PoE
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Product Info
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3ad, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Packet buffer memory | 4.1 MB |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | WPA, WPA2 |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 500 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 469262 h |
| Technical details | |
| Shipping (inner) case height | 39.3 cm |
| Shipping (inner) case width | 29.5 cm |
| Shipping (inner) case length | 53.9 cm |
| Shipping (inner) case net weight | 15.1 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 403.5 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 131.4 cm |
| Pallet gross weight (sea) | 660 kg |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 2.1 m |
| Shipping (inner) case gross weight | 16 kg |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 263.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 193 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Heat dissipation | 900.36 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.75 kg |
| Packaging data | |
| Package width | 365 mm |
| Package depth | 521 mm |
| Package height | 92 mm |
| Package weight | 5.04 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
