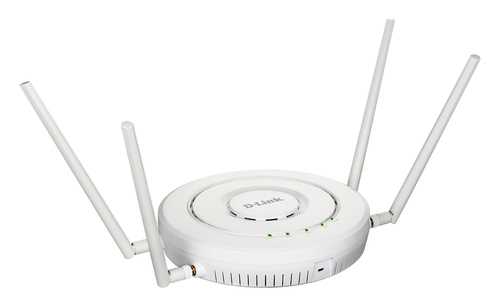

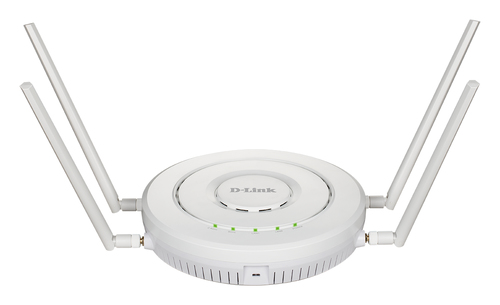

D-Link DWL-8620APE wireless access point

DWL-8620APE - 790069441417

D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE)

Brand: D-Link
Product code: DWL-8620APE
SKU: 619CDQXZBAG0X
EAN/GTIN: 790069441417

2.4 GHz
5 GHz
Maximum data transfer rate: 2533 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Power over Ethernet (PoE)
Antennas quantity: 4

€482.62 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Wireless AC2600 Wave2 4X4 MU-MIMO Dual Band Unified Access Point with External Antennas

D-Link DWL-8620APE. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2533 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 24.24 W

The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.

Specifications

Features

2.4 GHz Yes

5 GHz Yes

Maximum data transfer rate 2533 Mbit/s

Ethernet LAN data rates 10,100,1000 Mbit/s

Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

Channels quantity 165 channels

Automatic channel selection Yes

MIMO Yes

Wi-Fi Multimedia (WMM)/(WME) Yes

VLAN support Yes

Band steering Yes

Airtime Fairness (ATF) Yes

Quality of Service (QoS) support Yes

Mean time between failures (MTBF) 460185 h

Security

Security algorithms AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise

MAC address filtering Yes

Number of SSID supported 32

Auto Wireless Distribution System (WDS) Yes

Protocols

Management protocols SNMP v1/v2c/v3

Management features

Web-based management Yes

Ports & interfaces

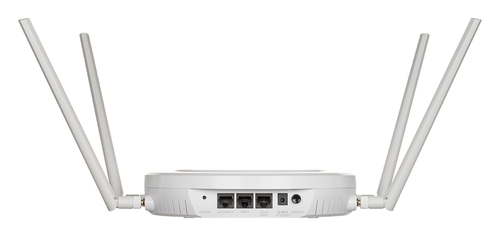

Ethernet LAN (RJ-45) ports 2

DC-in jack Yes

Power

Power over Ethernet (PoE) Yes

Output voltage 12 V

Output current 2.5 A

Power consumption (max) 24.24 W

Design

Placement Ceiling, Wall

Product colour White

Reset button Yes

Certification CE; EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893; FCC; IC; cUL+UL; CB; RCM; NCC; BSMI;

Internal No

Antenna

Antennas quantity 4

Technical details

Shipping (inner) case length 44.9 cm

Shipping (inner) case width 31.2 cm

Shipping (inner) case height 32.8 cm

Shipping (inner) case net weight 7.5 kg

Products per shipping (inner) case 5 pc(s)

Pallet gross weight (air) 226.3 kg

Master (outer) cases per pallet (air) 24 pc(s)

Products per pallet (air) 120 pc(s)

Pallet gross length 110 cm

Pallet gross width 120 cm

Pallet height (air) 144.7 cm

Pallet gross weight (sea) 276.9 kg

Master (outer) cases per pallet (sea) 30 pc(s)

Products per pallet (sea) 150 pc(s)

Pallet height (sea) 177.5 cm

Shipping (inner) case gross weight 8.37 kg

Weight & dimensions

Width 220 mm

Depth 220 mm

Height 47 mm

Weight 920 g

Packaging data

Package width 295 mm

Package depth 296 mm

Package height 94 mm

Package weight 1.5 kg

Operational conditions

Operating relative humidity (H-H) 10 - 90%

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -20 - 65 °C

Storage relative humidity (H-H) 5 - 95%

Logistics data

Harmonized System (HS) code 85176990
