D-Link DWL-6620APS wireless access point

D-Link DWL-6620APS wireless access point 1300 Mbit/s White Power over Ethernet (PoE)


Brand
D-Link
Product code
DWL-6620APS
SKU
17PHOLJULS90T
EAN/GTIN
790069436819
  • 802.11ac Wave 2, up to 1.3 Gbps
  • 2x2 Internal D-Link Smart Antennas
  • Up to 32 virtual access points per access point
  • 802.11k Fast Roaming, MU-MIMO and QoS
  • Link aggregation
€461.58 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Wave 2 has landed. Connect to more.
Unparalleled performance makes the DWL‑6620APS Wireless AC1300 Wave 2 Unified Access Point a must‑have upgrade that allows your wireless customers in high‑density areas to reliably connect to more, with faster throughput and flexibility. Perfect for medium to large‑scale Wi‑Fi networks.

Smart Antenna Technology
D‑Link’s Smart Antenna technology processes algorithms used to identify spatial signal signatures such as Direction Of Arrival, and uses them to calculate beamforming vectors which are then used to target the wireless client and achieve the best possible throughput.
The fast channel selection feature scans all channels and rapidly selects the one with the least interference. And the Null Steering capability curtails the power in the direction of interference to mitigate its influence. With these capabilities the D-Link Smart Antenna strengthens the connection reliability in real-time and delivers an optimised wireless user experience.

Greater Speed & Connectivity
It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic.

Efficiency multiplied
Support for 802.11ac Wave 2 MU-MIMO technology enables the access point to communicate with multiple clients simultaneously, resulting in significantly improved network capacity and throughput.

Dual‑Band Wireless for efficient performance
The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.

Airtime fairness ensures that equal airtime is given to each client, providing improved performance even when slower devices are connected.

Centrally Manage your Wireless Network
When deployed in combination with D-Link Wireless Controllers (DWC-1000/DWC-2000), up to 1,024 DWL-6620APS access points can be centrally managed. Once the APs are discovered by the controller, any configuration can be pushed to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management1 allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.

Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays
Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 1300 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 2.4 - 2.4835; 5.15 - 5.85 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Channels quantity 165 channels
VLAN support Yes
Wireless isolation Yes
Security
Security algorithms AES, TKIP, WPA-Enterprise, WPA2-Enterprise
MAC address filtering Yes
Number of SSID supported 32
Management features
Web-based management Yes
Ports & interfaces

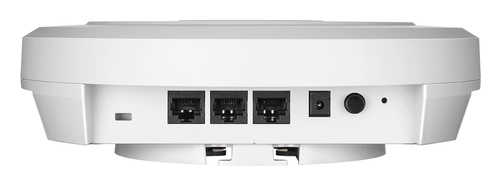

Ethernet LAN (RJ-45) ports 2
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
Output voltage 12 V
Output current 2 A
Power consumption (max) 16.32 W
Design
Product colour White
Housing material Plastic
On/off switch Yes
Reset button Yes
Certification CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043
Internal No
Antenna
Antennas quantity 2
Technical details
Shipping (inner) case length 56.5 cm
Shipping (inner) case width 34.3 cm
Shipping (inner) case height 27.5 cm
Shipping (inner) case net weight 7.19 kg
Products per shipping (inner) case 6 pc(s)
Pallet gross weight (air) 219.9 kg
Master (outer) cases per pallet (air) 24 pc(s)
Products per pallet (air) 144 pc(s)
Pallet gross length 110 cm
Pallet gross width 120 cm
Pallet height (air) 123.5 cm
Pallet gross weight (sea) 366.2 kg
Master (outer) cases per pallet (sea) 42 pc(s)
Products per pallet (sea) 252 pc(s)
Pallet height (sea) 2.06 m
Shipping (inner) case gross weight 8.1 kg
Weight & dimensions
Width 220 mm
Depth 220 mm
Height 55.5 mm
Weight 614 g
Packaging data
Package width 243 mm
Package depth 235 mm
Package height 90 mm
Package weight 1.2 kg
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Logistics data
Harmonized System (HS) code 85176990
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
