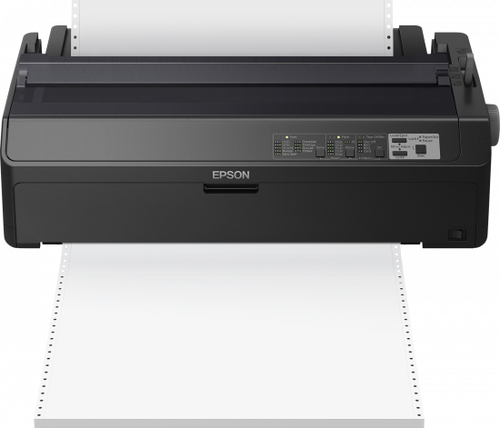

Epson LQ-2090IIN dot matrix printer 550 cps
- Brand
- Epson
- Product code
- C11CF40402A1
- SKU
- DCQQQMPX2UX5X
- EAN/GTIN
- 8715946651392
- Fast print speed: USD speed of 550 characters per second at 10 characters per inch
- Increased reliability: Mean time between failure of 25,000 power-on hours
- Increased number of copies: Now original plus six copies
- Network capability: Supports both serial and Ethernet connections
- Same consumables: Uses the same ribbons as existing models
Product Info
Fast, networked 24-pin, 136-column dot matrix printer that offers outstanding reliability and an extremely low TCO.
The LQ-2090IIN is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers built-in network capability with an incredibly low TCO.
Fast print speed
The LQ-2090IIN offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.
Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.
Same consumables
This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.
Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.
| Printing | |
|---|---|
| Maximum printing width (columns) | 136 |
| Maximum print speed | 550 cps |
| Character pitch | 10 cpi |
| Character density | 10 cpi |
| Built-in barcodes | Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E |
| Paper handling | |
| Paper tray media types | Envelopes, Labels |
| Continuous paper thickness range | 0.12 - 0.46 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.46 mm |
| Single sheet thickness range | 0.065 - 0.014 mm |
| Features | |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 55 dB |
| Country of origin | Indonesia |
| Ports & interfaces | |
| Standard interfaces | Ethernet, Parallel, USB |
| Endurance | |
| Print head | 24-pin |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 25000 h |
| Power | |
| Power consumption (typical) | 49 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 612 mm |
| Depth | 375 mm |
| Height | 177 mm |
| Weight | 9.4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 451 mm |
| Package depth | 735 mm |
| Package height | 295 mm |
| Package weight | 12.2 kg |
| Logistics data | |
| Products per pallet | 14 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 4.59 m |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 3 pc(s) |
| Products per pallet (UK) | 21 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 4.59 m |
