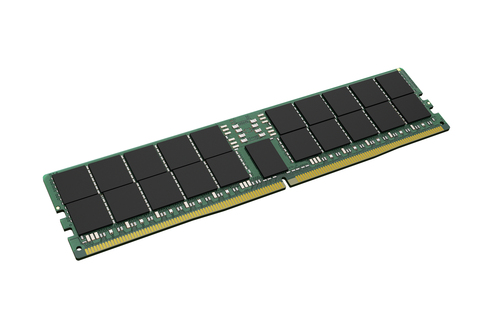

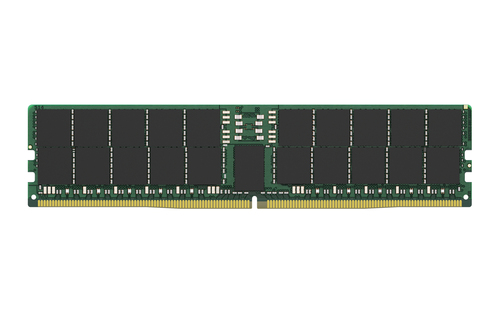

Kingston Technology KSM56R46BD4PMI-96MBI memory module

KSM56R46BD4PMI-96MBI - 740617340266

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC

Brand: KINGSTON VRAM
Product code: KSM56R46BD4PMI-96MBI
SKU: ZQKCYEHT5ZSZU
EAN/GTIN: 740617340266

On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
RoHS Compliant and Halogen-Free

€3609.48 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit, Micron B IDT/Renesas

Kingston Technology KSM56R46BD4PMI-96MBI. Component for: PC/Server, Internal memory: 96 GB, Memory layout (modules x size): 1 x 96 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Features

Buffered memory type Registered (buffered)

On-Die ECC Yes

CAS latency 46

Internal memory 96 GB

Memory layout (modules x size) 1 x 96 GB

Internal memory type DDR5

Memory data transfer rate 5600 MT/s

Component for PC/Server

Memory form factor 288-pin DIMM

ECC Yes

Memory ranking 2

Memory voltage 1.1 V

Module configuration 12288M x 80

Row cycle time 48 ns

Refresh row cycle time 295 ns

Row active time 32 ns

SPD profile Yes

Programming power voltage (VPP) 1.8 V

Lead plating Gold

Backlight No

JEDEC standard Yes

Operational conditions

Operating temperature (T-T) 0 - 95 °C

Storage temperature (T-T) -55 - 100 °C

Sustainability

Sustainability compliance Yes

Sustainability certificates RoHS

Doesn't contain Halogen

Weight & dimensions

Width 133.3 mm

Height 31.2 mm
