Kingston Technology KSM56T46BD8KM-32HA memory module

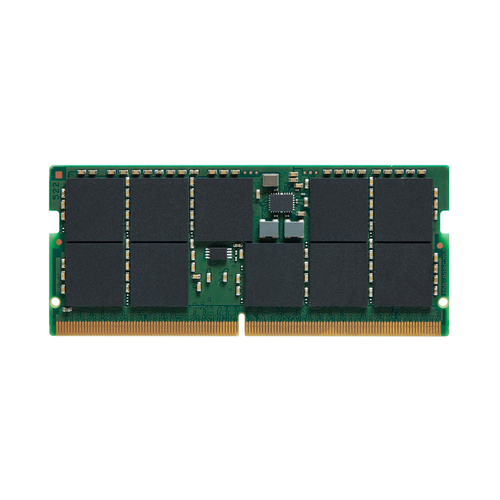

Kingston Technology KSM56T46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 ECC
- Brand
- KINGSTON VRAM
- Product code
- KSM56T46BD8KM-32HA
- SKU
- 9WYGIDCTWKZ7F
- EAN/GTIN
- 740617335989
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
€595.95
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Kingston's KSM56T46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM
uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC | Yes |
| CAS latency | 46 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR5 |
| Memory clock speed | 5600 MHz |
| Component for | Server |
| Memory form factor | 262-pin SO-DIMM |
| ECC | Yes |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Product colour | Black, Green |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 69.6 mm |
| Depth | 3.7 mm |
| Height | 31.2 mm |
