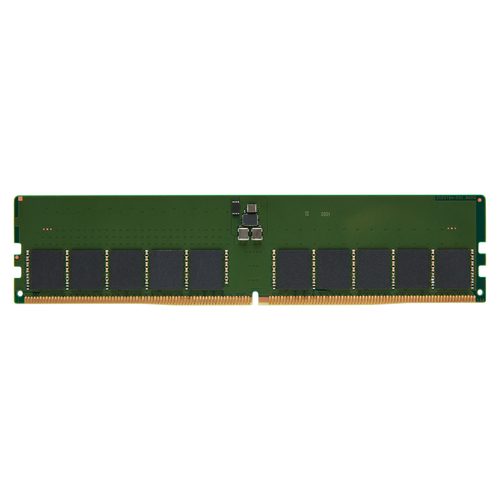

Kingston Technology KSM56E46BD8KM-32HA memory module

KSM56E46BD8KM-32HA - 740617336023

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 ECC

Brand: KINGSTON VRAM
Product code: KSM56E46BD8KM-32HA
SKU: JDWGQDEADAV34
EAN/GTIN: 740617336023

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x72 ECC (x36, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

€1019.82 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

32GB, DDR5, 5600MT/s, ECC, Unbuffered, DIMM, CL46, 2Rx8, 1.1V, 288-pin, 16Gbit, Hynix A

Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Features

Buffered memory type Unregistered (unbuffered)

On-Die ECC Yes

CAS latency 46

Internal memory 32 GB

Memory layout (modules x size) 1 x 32 GB

Internal memory type DDR5

Memory clock speed 5600 MHz

Component for Server

Memory form factor 288-pin DIMM

ECC Yes

Memory ranking 2

Memory voltage 1.1 V

Module configuration 4096M x 72

Row cycle time 48 ns

Refresh row cycle time 295 ns

Row active time 32 ns

Row Precharge Time (TRP) 16

SPD profile Yes

Programming power voltage (VPP) 1.8 V

Product colour Black, Green

Lead plating Gold

JEDEC standard Yes

Operational conditions

Operating temperature (T-T) 0 - 95 °C

Storage temperature (T-T) -55 - 100 °C

Sustainability

Sustainability compliance Yes

Sustainability certificates RoHS

Doesn't contain Halogen

Weight & dimensions

Width 133.3 mm

Height 31.2 mm
