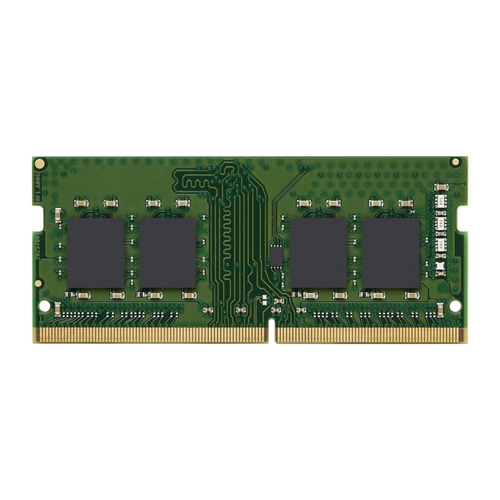

Kingston Technology ValueRAM KVR32S22S8/8 memory module
KVR32S22S8/8 - 740617296099
Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4
- Brand
- KINGSTON VRAM
- Product Family
- ValueRAM
- Product code
- KVR32S22S8/8
- SKU
- ILHAKGSKY7EXV
- EAN/GTIN
- 740617296099
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
€132.92
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
8GB, DDR4, 3200MHz, Non-ECC, CL22, 1.2V
Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22
ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory
8 GB
Memory layout (modules x size)
1 x 8 GB
Internal memory type
DDR4
Memory clock speed
3200 MHz
Component for
Laptop
Memory form factor
260-pin SO-DIMM
ECC
No
Memory voltage
1.2 V
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
Country of origin
Taiwan
Lead plating
Gold
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Sustainability certificates
RoHS
Doesn't contain
Halogen
Weight & dimensions
Width
69.6 mm
Height
30 mm
Logistics data
Harmonized System (HS) code
84733020
