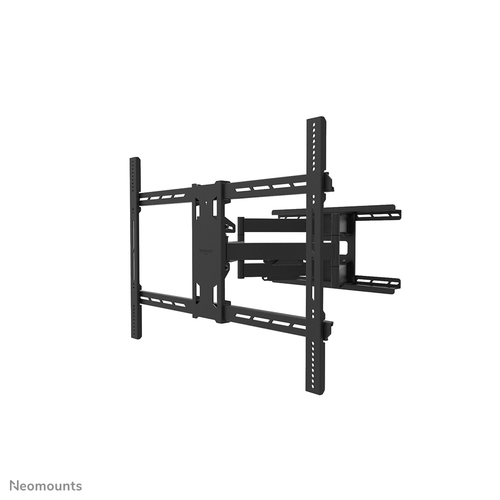

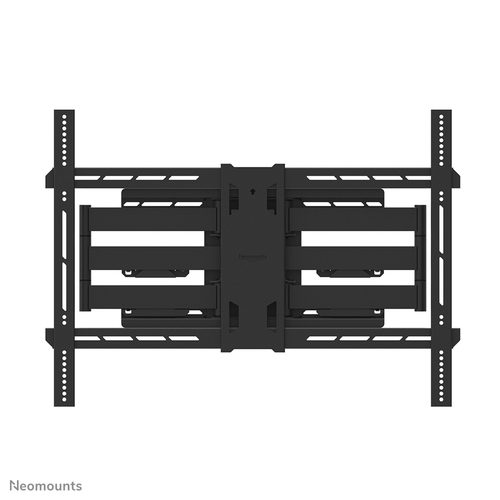

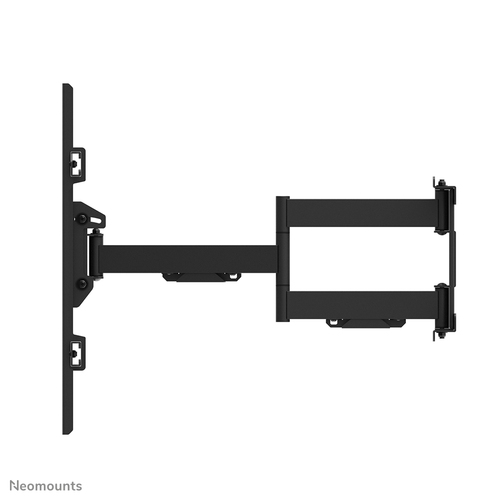

Neomounts WL40S-950BL18 Heavy duty wall mount 55-110" - full motion
- Brand
- NEOMOUNTS
- Product code
- WL40S-950BL18
- SKU
- P9GE4Q1WCZK06
- EAN/GTIN
- 8717371449575
- Maximum weight capacity: 125 kg
- Minimum screen size: 139.7 cm (55") Maximum screen size: 2.79 m (110")
- Number of displays supported: 1
- Mounting type: Wall
- Maximum VESA mount: 800 x 600 mm
- Height adjustment Tilt adjustment
- Cable management
- Black
Product Info

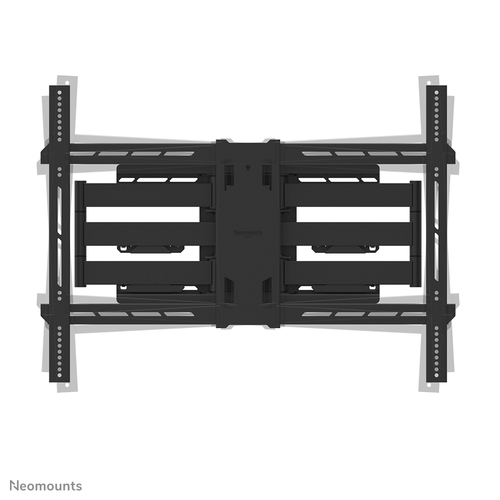

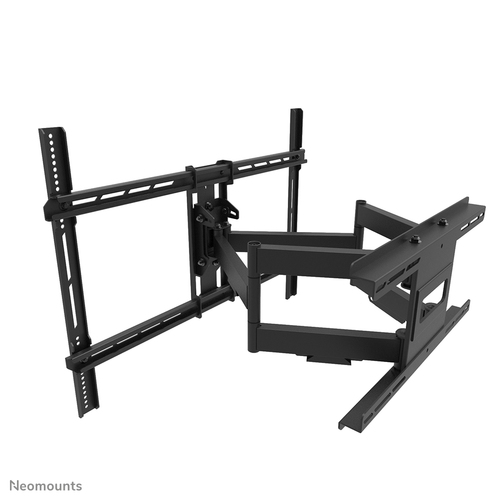

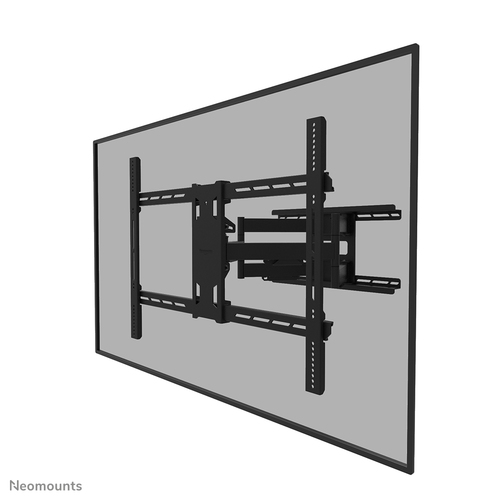

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.

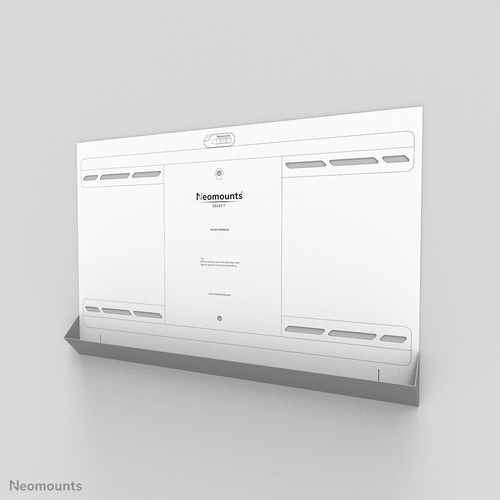

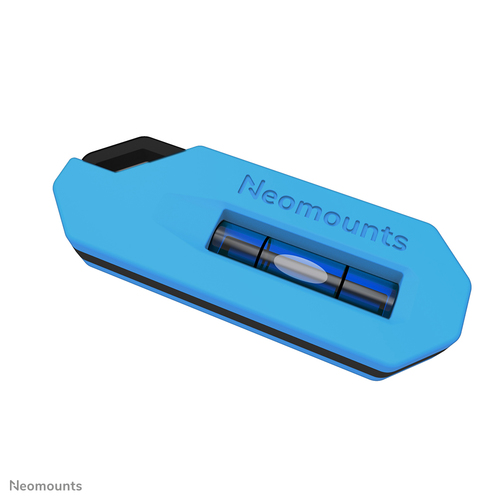

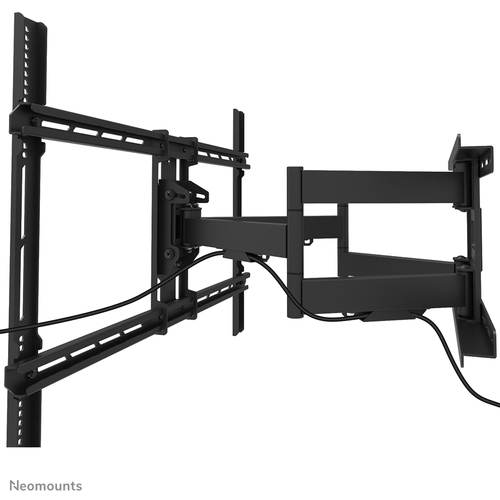

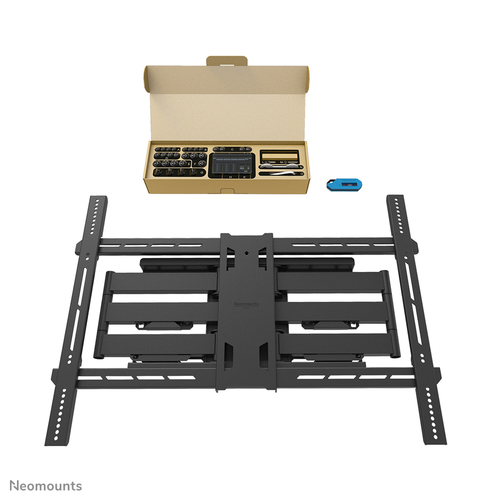

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
| Mounting | |
|---|---|
| Minimum screen size | 139.7 cm (55") |
| Maximum weight capacity | 125 kg |
| Maximum screen size | 2.79 m (110") |
| Suitable for TV | Yes |
| Minimum VESA mount | 300 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 400,600 x 600,600 x 300,600 x 500,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600 |
| Number of displays supported | 1 |
| Mounting type | Wall |

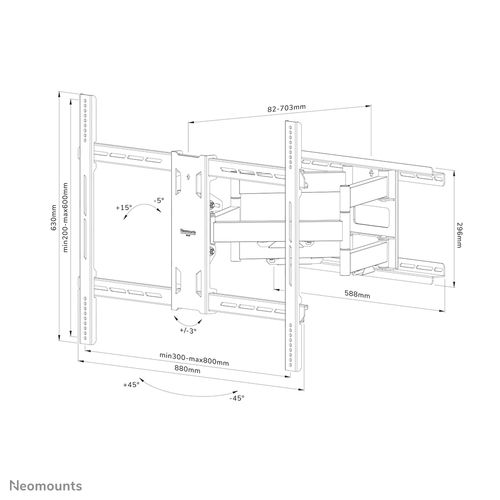

| Distance to the wall (min) | 8.2 cm |
| Distance to the wall (max) | 70.3 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Tilt angle range | -15 - 5° |
| Swivel angle range | -45 - 45° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 880 mm |
| Depth | 82 mm |
| Height | 630 mm |
| Package width | 450 mm |
| Package depth | 100 mm |
| Package height | 950 mm |
| Package net weight | 22 kg |

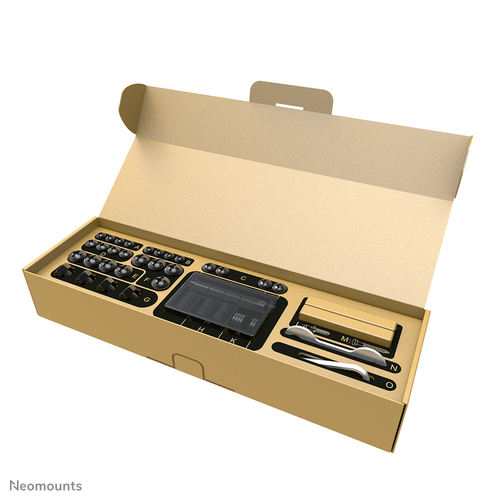

| Packaging content | |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 100 mm |
| Master (outer) case height | 950 mm |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 20.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 20 pc(s) |
| Other features | |
| Country of origin | China |
