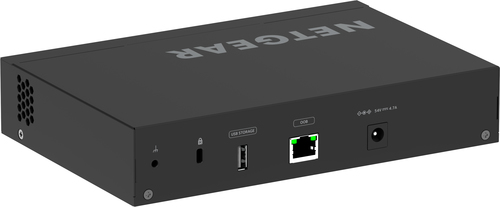

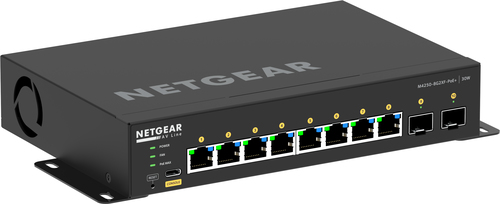

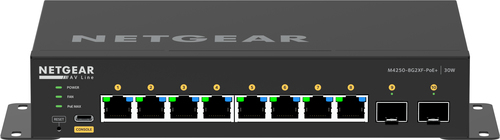

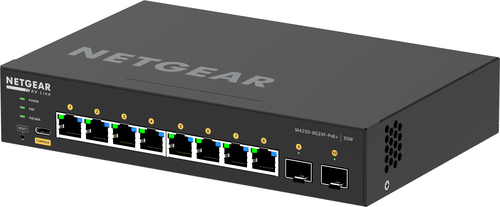

NETGEAR GSM4210PX-100EUS network switch

GSM4210PX-100EUS - 606449160222

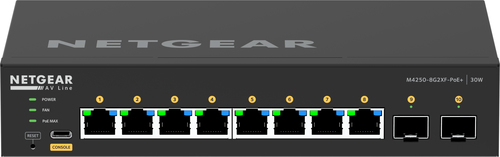

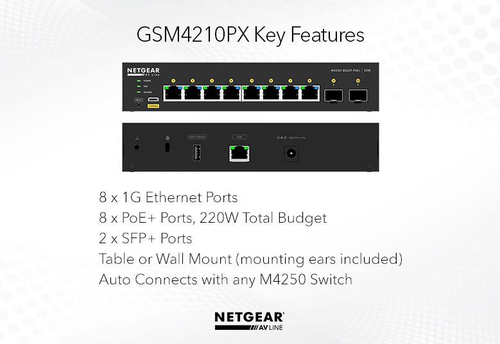

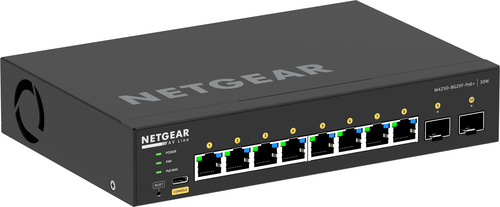

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch

Brand: Netgear
Product code: GSM4210PX-100EUS
SKU: APDZQWKYETHDX
EAN/GTIN: 606449160222

Managed L2/L3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 16000 entries Switching capacity: 24 Gbit/s
Access Control List (ACL)
Rack mounting
AC/DC Power supply included Power over Ethernet (PoE)

€1200.45 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

8x1G PoE+ 220W and 2xSFP+ Managed Switch

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features

Switch type Managed

Switch layer L2/L3

Quality of Service (QoS) support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x

Full duplex Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

VLAN support Yes

Virtual LAN features MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity 24 Gbit/s

MAC address table 16000 entries

Store-and-forward Yes

Security

DHCP features DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

Authentication MAC-based authentication

Authentication type RADIUS

Multicast features

Multicast support Yes

IPv4 multicast entries 2000

Design

Rack mounting Yes

Product colour Black

LED indicators PoE, Power, Status

Performance

Built-in processor Yes

Processor model ARM Cortex-A9

Processor frequency 1250 MHz

Internal memory 2048 MB

Noise level 30.06 dB

Power

Power source AC/DC

Power supply included Yes

AC input voltage 200 - 240 V

AC input frequency 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 8

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 220 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 0 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 3000 m

Heat dissipation 559.555 BTU/h

Weight & dimensions

Width 210 mm

Depth 140 mm

Height 40 mm

Weight 967 g

Packaging data

User guide Yes

Manual Yes
