Neomounts NM-D775DXWHITE Monitor arm 10-32" - gas spring - Topfix - 180°-stop
- Brand
- NEOMOUNTS
- Product code
- NM-D775DXWHITE
- SKU
- HUKWYCN0C39FP
- EAN/GTIN
- 8717371446864
- Maximum weight capacity: 8 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment
- Cable management
- White
Product Info

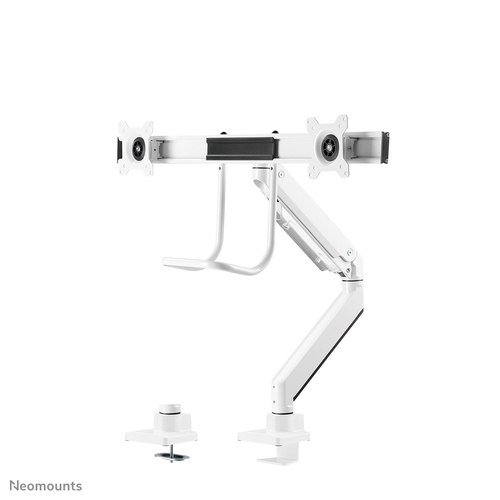

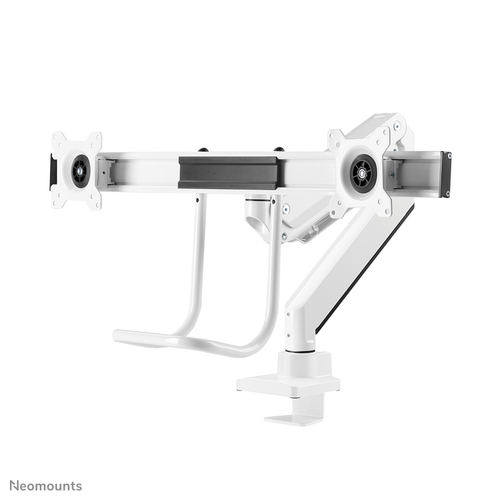

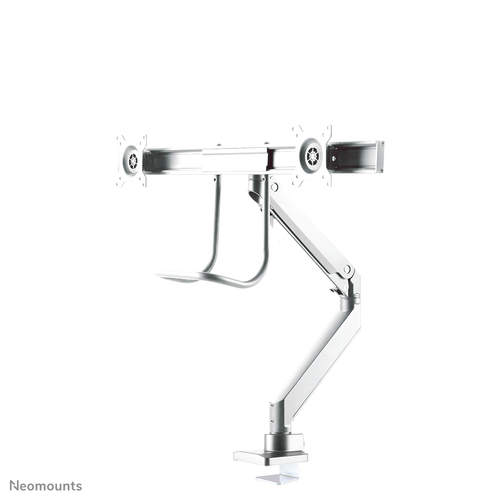

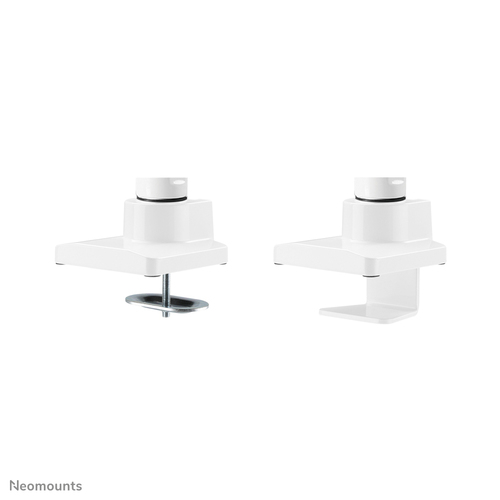

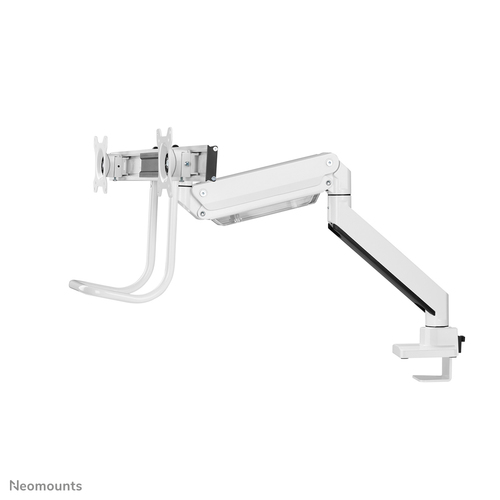

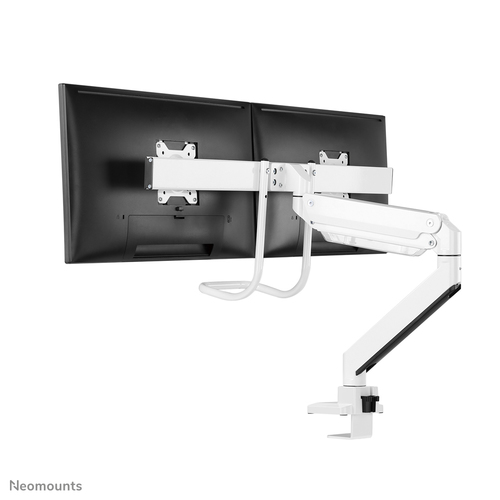

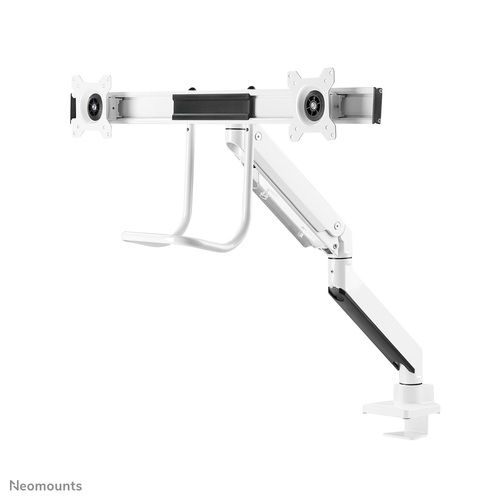

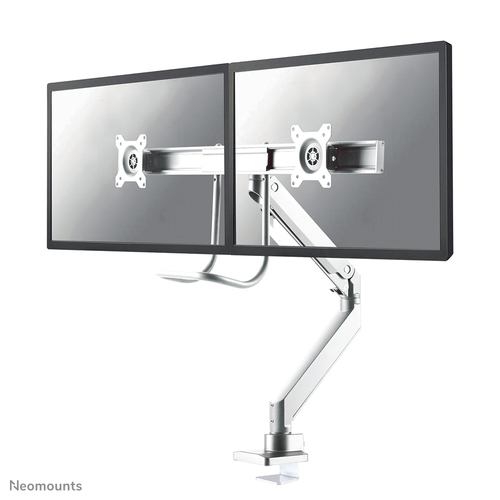

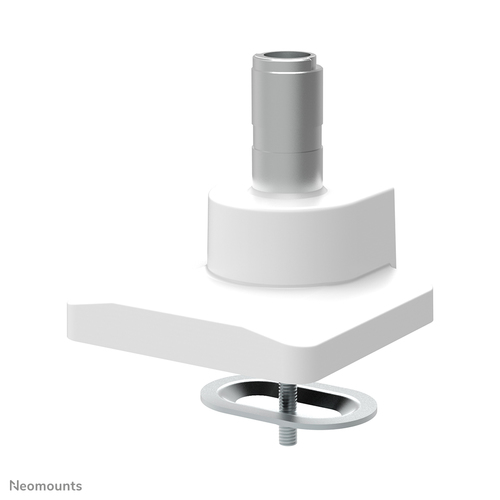

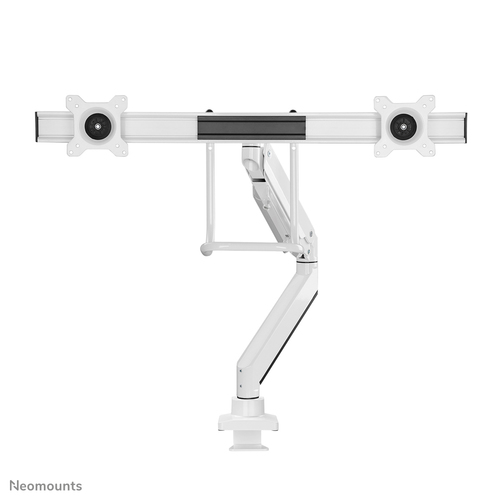

The Neomounts NM-D775DXWHITE is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

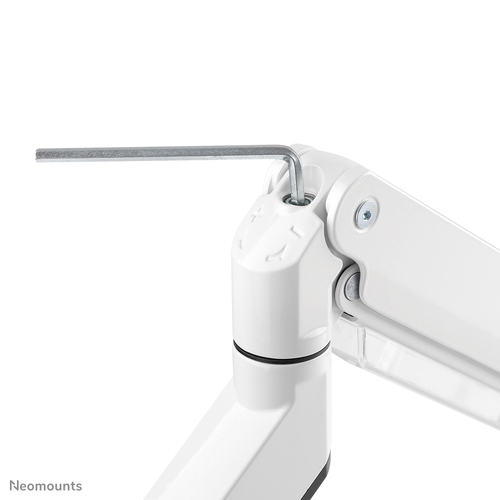

Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXWHITE with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

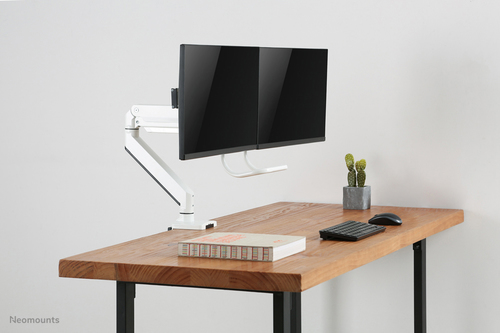

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |

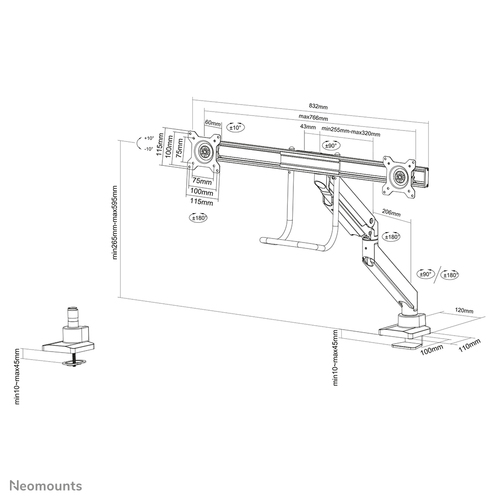

| Height adjustment range | 260 - 600 mm |
| Depth adjustment range | 0 - 630 mm |
| Tilt angle range | 0 - 20° |
| Swivel angle | 360° |
| Swivel angle range | -180 - 180° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Product colour | White |
| Weight & dimensions | |
| Height | 600 mm |
| Package width | 225 mm |
| Package depth | 150 mm |
| Package height | 895 mm |
| Package net weight | 8.95 kg |
| Logistics data | |
| Master (outer) case width | 910 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 8.95 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 8.95 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 22 pc(s) |
| Other features | |
| Country of origin | China |
