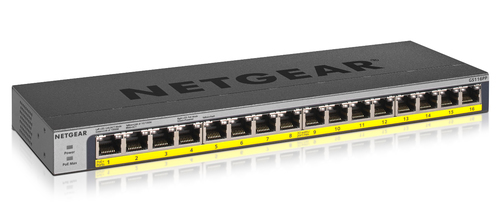

NETGEAR GS116PP

NETGEAR GS116PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black


Brand
Netgear
Product code
GS116PP-100EUS
SKU
M8M8KVH66I3RP
EAN/GTIN
606449133332
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • MAC address table: 4000 entries Switching capacity: 32 Gbit/s
  • Rack mounting
  • DC/PoE Power over Ethernet (PoE)
€217.51 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

NETGEAR GS116PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting

Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency
Unmanaged Gigabit switches are built with Top Quality components to assure a long life. Unmanaged switches are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP)
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE Power. Thanks to the interchangeable external Power Supply and with a built-in PoE selector they allow you to increase or decrease the PoE budget at any time.

The flexible mounting system gives you the flexibility to place them in a desktop environment, mounted in a rack (accessories included) or wall-mounted.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G support No
Ethernet LAN data rates 10,100,1000 Mbit/s
Data transmission
Switching capacity 32 Gbit/s
MAC address table 4000 entries
Design
Rack mounting Yes
Product colour Black
LED indicators Yes
Number of fans 1 fan(s)
Certification CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Performance
Buffer size 1000 KB
Mean time between failures (MTBF) 2088514 h
Power
Power source DC/PoE
DC input voltage 54 V
Input current 3.7 A
Power consumption (typical) 200 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Total Power over Ethernet (PoE) budget 183 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Heat dissipation 680.58 BTU/h
Weight & dimensions
Width 286 mm
Depth 102 mm
Height 27 mm
Weight 880 g
Logistics data
Harmonized System (HS) code 85176990
