Neomounts NM-D135DSILVER Monitor arm 10-27"
- Brand
- NEOMOUNTS
- Product code
- NM-D135DSILVER
- SKU
- LQ6IVYK4E87HU
- EAN/GTIN
- 8717371445256
- Maximum weight capacity: 8 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Manual Height adjustment
- Silver
Product Info

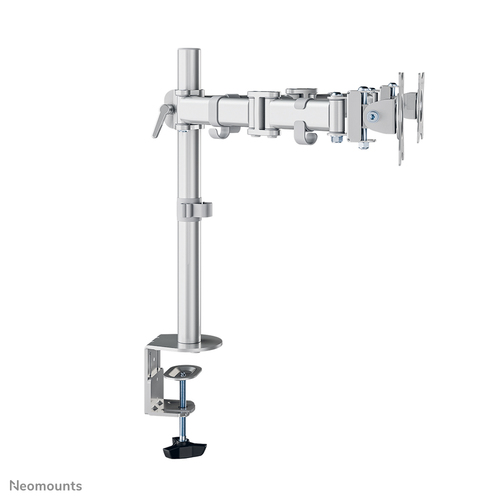

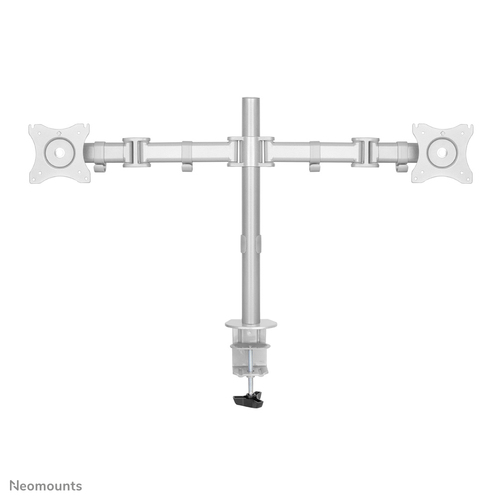

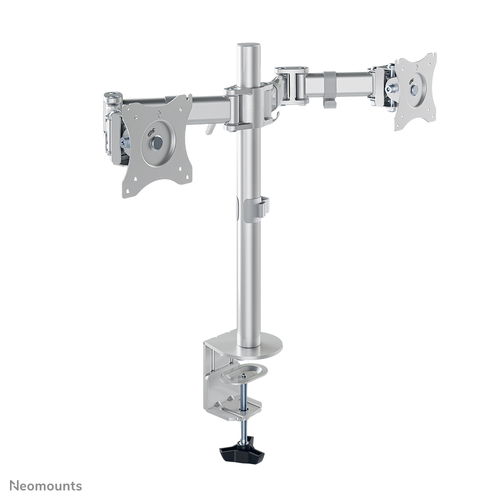

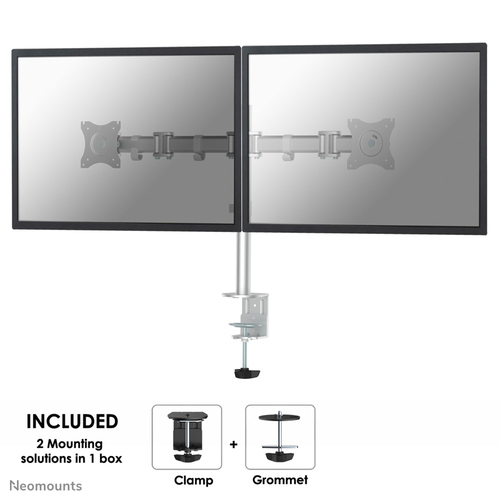

The Neomounts desk mount, model NM-D135DSILVER is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

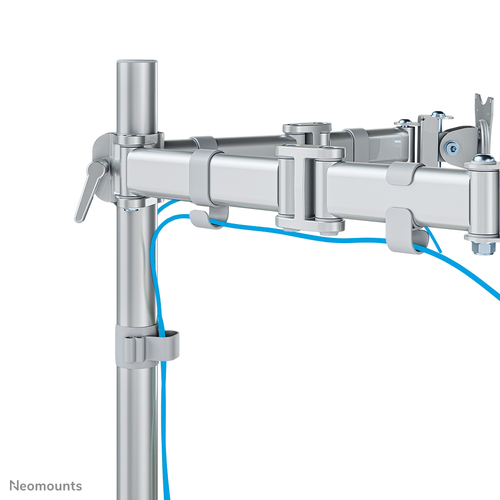

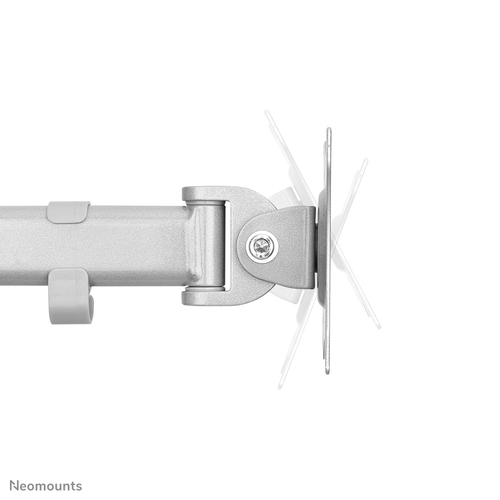

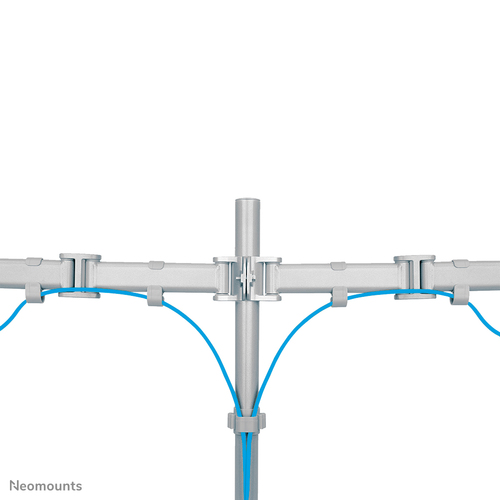

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable 0 6 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135DSILVER has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

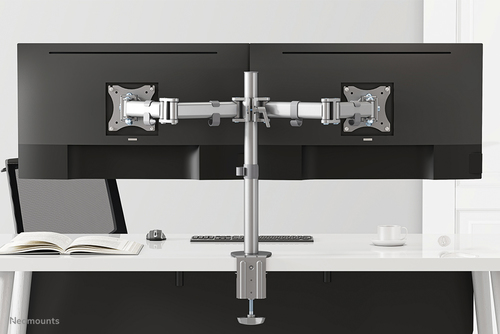

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

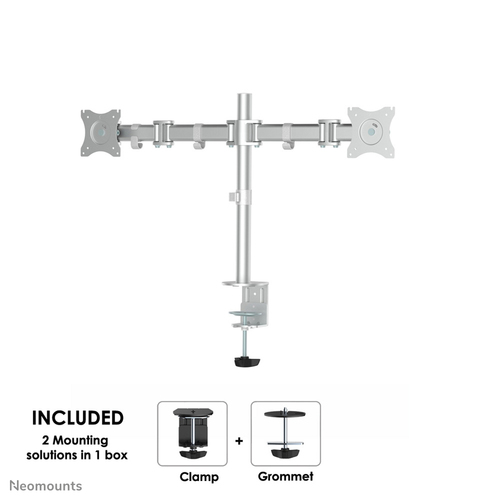

All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Bolt-through |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 43 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 400 mm |
| Tilt angle range | 0 - 90° |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Design | |
| Product colour | Silver |
| Weight & dimensions | |

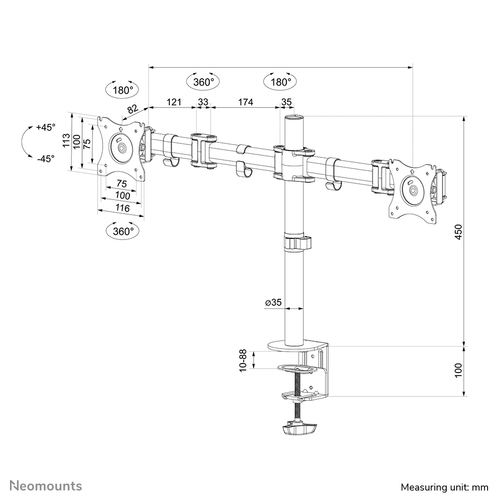

| Depth | 427 mm |
| Height | 415 mm |
| Package width | 150 mm |
| Package depth | 130 mm |
| Package height | 473 mm |
| Package net weight | 4.44 kg |
| Logistics data | |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 370 mm |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 17.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 120 pc(s) |
| Other features | |
| Country of origin | China |
