NETGEAR XCM8948 network switch module
XCM8948-10000S - 606449101072
NETGEAR XCM8948 network switch module Gigabit Ethernet
- Brand
- Netgear
- Product code
- XCM8948-10000S
- SKU
- 0CUIXSDWV39XM
- EAN/GTIN
- 606449101072
- Gigabit Ethernet 10,100,1000 Mbit/s
- Data transfer rate: 1 Gbit/s
- Access Control List (ACL)
- Quality of Service (QoS) support
Product Info

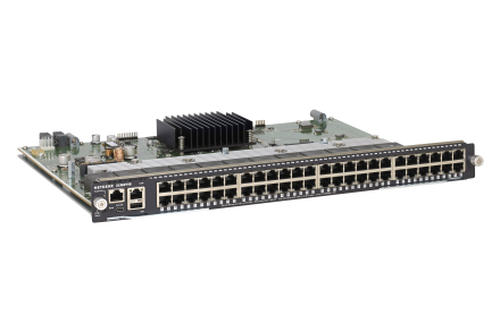

I/O Blade, 48 x 10/100/1000BASE-T RJ45
NETGEAR XCM8948. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T. Data transfer rate: 1 Gbit/s. Security algorithms: 802.1x RADIUS, HTTPS, SSH, SSL/TLS, Compatibility: Netgear M6100. Weight: 7.12 kg
The NETGEAR Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
PoE, PoE+ and UPOE available as an option with XCM89P or XCM89UP daughter card.
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Data transmission | |
| Data transfer rate | 1 Gbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 48 |
| Performance | |
| Queues per port | 7 |
| Compatibility | Netgear M6100 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 7.12 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
