Neomounts tv wall mount
- Brand
- NEOMOUNTS
- Product code
- LED-W500SILVER
- SKU
- 642RLJP7TV27T
- EAN/GTIN
- 8717371443849
- Maximum weight capacity: 30 kg
- Minimum screen size: 81.3 cm (32") Maximum screen size: 152.4 cm (60") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Silver
Product Info

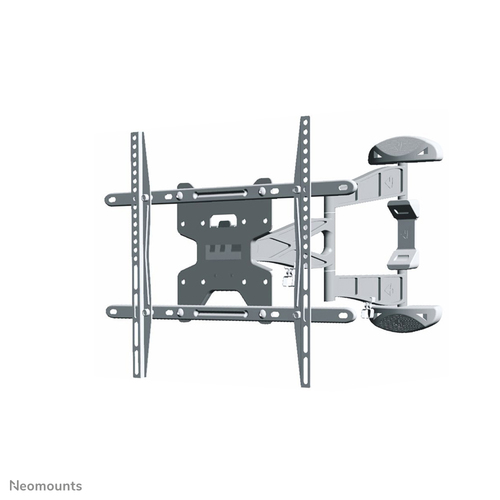

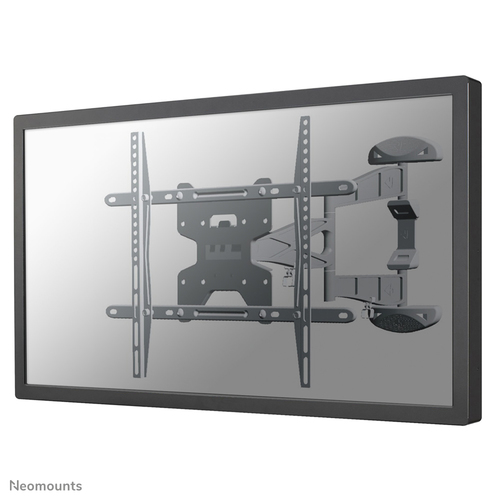

The Neomounts wall mount, model LED-W500SILVER is a full swing tilt- and swivel wall mount for flat screens up to 60" (152 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomountss' tilt (10°), rotation (6°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 4 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts LED-W500SILVER has three pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 30 kg |
| Maximum screen size | 152.4 cm (60") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt angle range | 0 - 20° |
| Swivel angle | 180° |
| Angle of rotation | 6° |
| Distance to the wall (max) | 50 cm |
| Distance to the wall (min) | 4 cm |
| Design | |
| Product colour | Silver |
| Technical details | |
| Country of origin | Taiwan |
| Package net weight | 5.2 kg |
| Packaging data | |
| Package width | 580 mm |
| Package depth | 380 mm |
| Package height | 70 mm |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 600 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 18.2 kg |
| Master (outer) case net weight | 15.7 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 72 pc(s) |
