Neomounts DS70S-950WH2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
- Brand
- NEOMOUNTS
- Product code
- DS70S-950WH2
- SKU
- QOMXTQ22IM581
- EAN/GTIN
- 8717371441555
- Maximum weight capacity: 18 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 88.9 cm (35")
- Number of displays supported: 2
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management Easy to install
- Aluminium White
Product Info

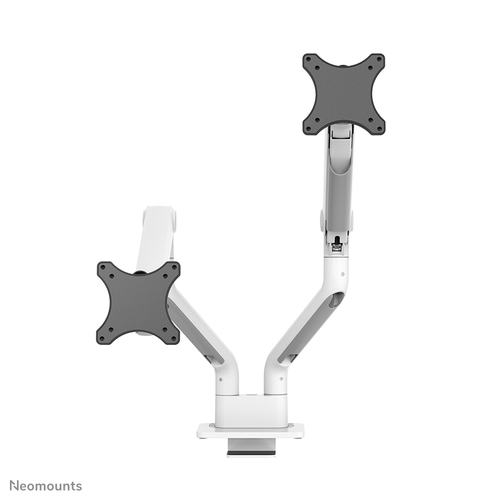

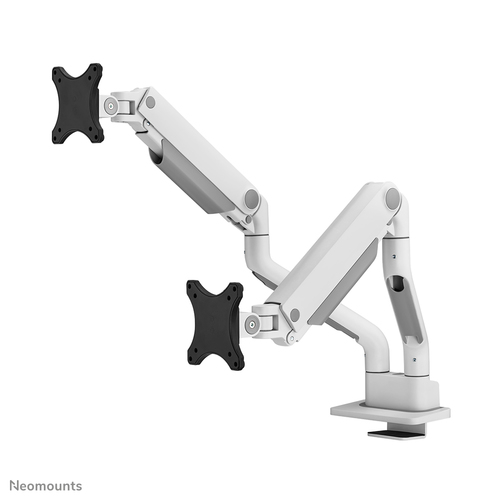

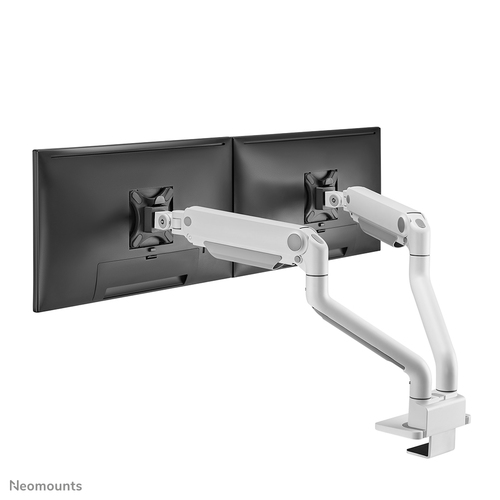

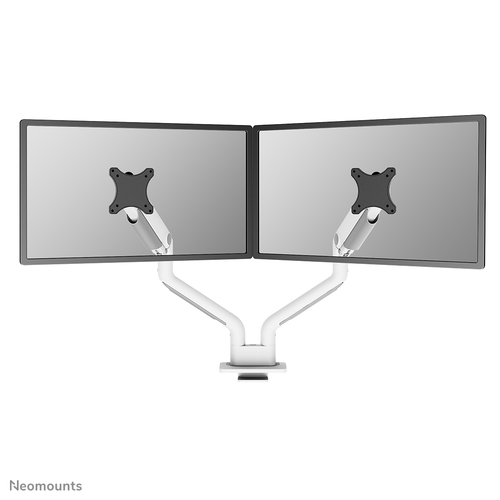

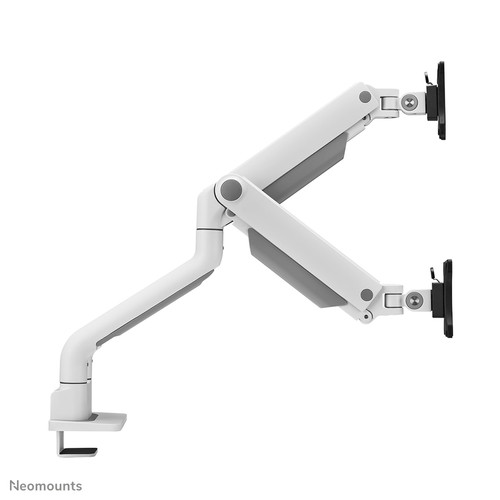

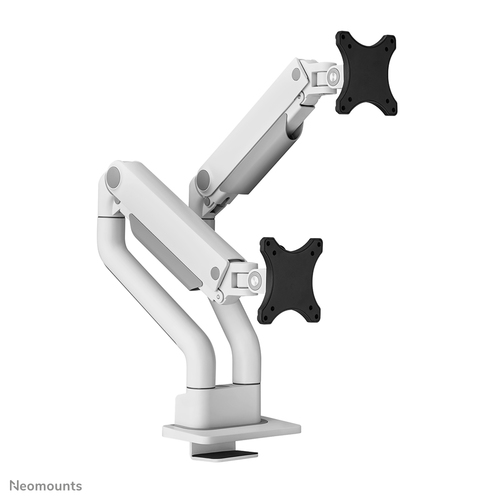

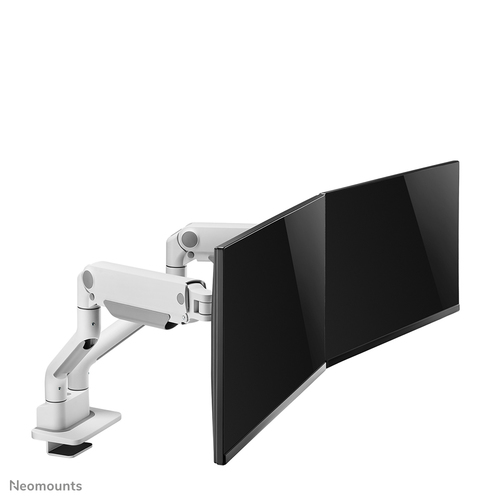

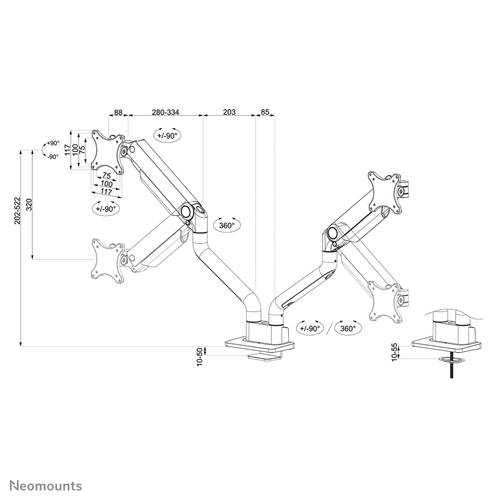

The Neomounts DS70S-950WH2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950WH2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

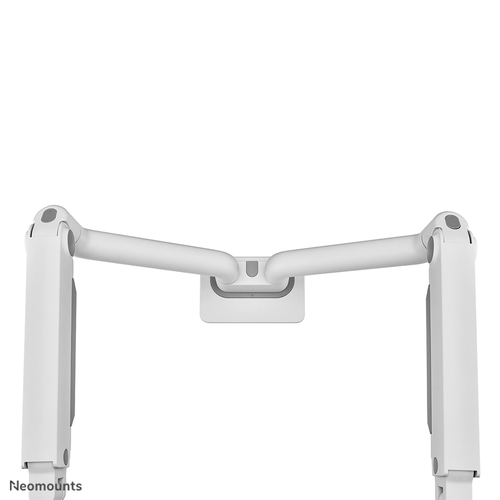

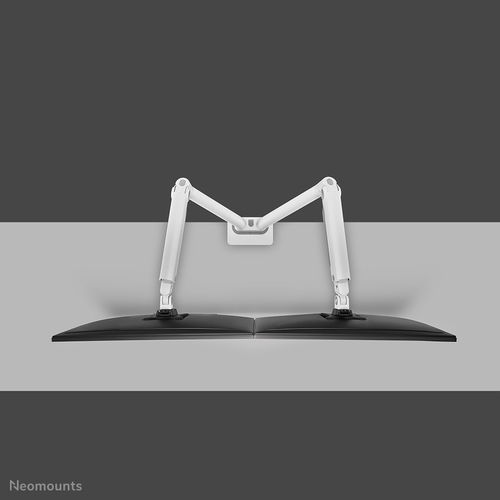

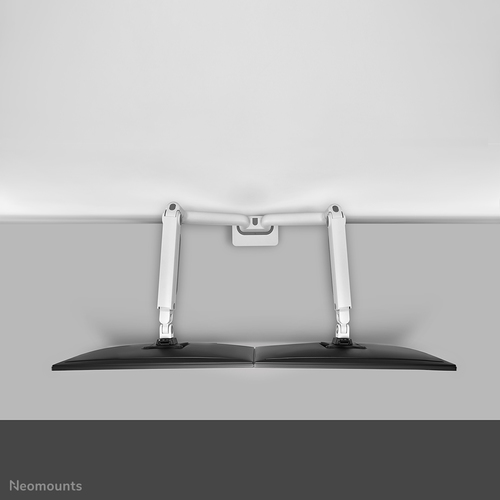

The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

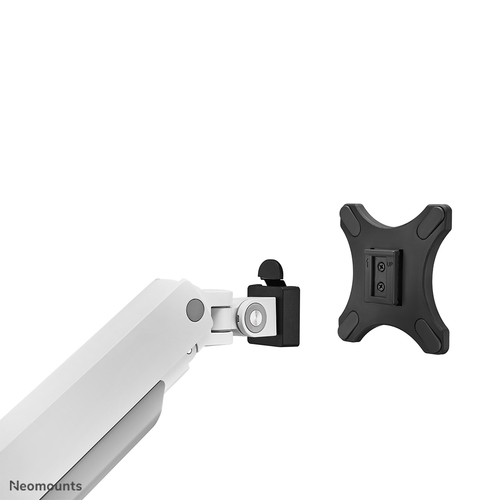

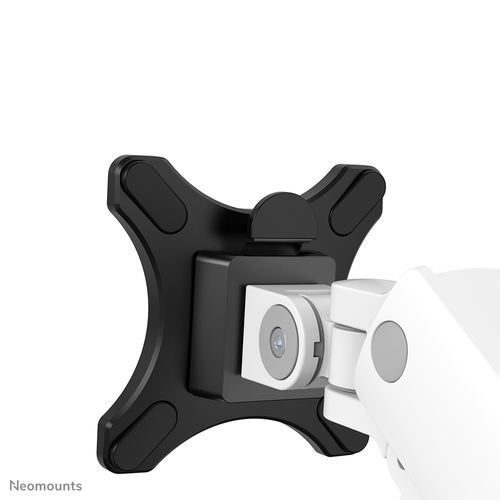

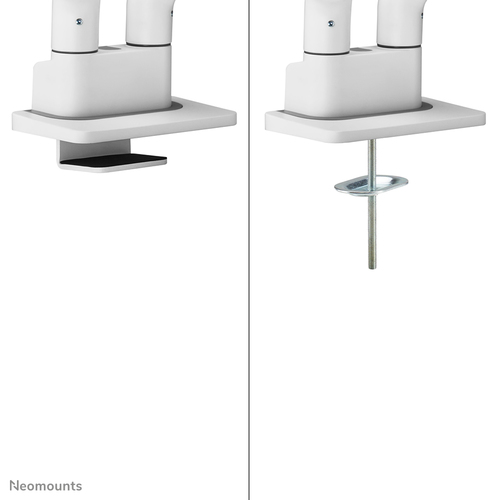

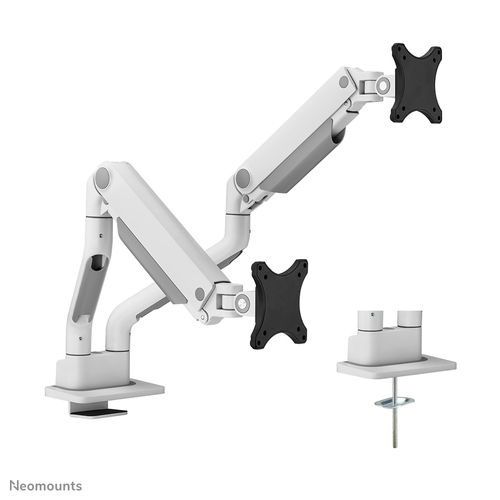

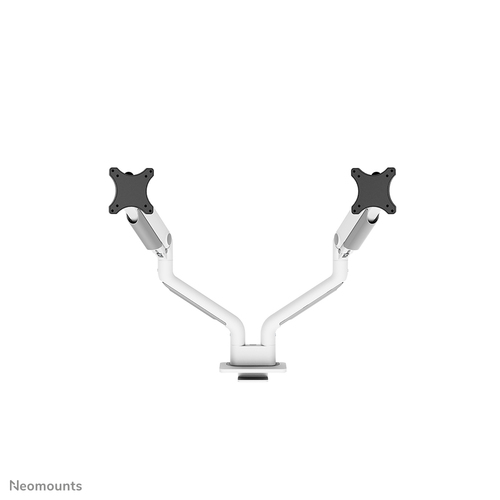

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

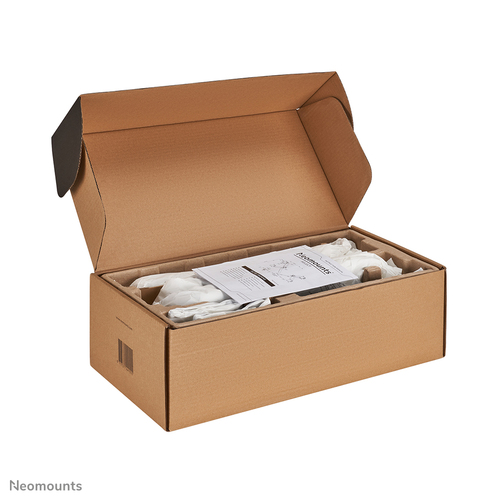

The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
| Mounting | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 18 kg |
| Maximum screen size | 88.9 cm (35") |
| Mounting | Clamp/Grommet |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 2 |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Mounting type | Desk |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 20.2 - 52.2 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 8.8 - 62.5 mm |
| Tilt angle range | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Angle of rotation | 180° |
| Number of arms | 2 |
| Cable management | Yes |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | White |
| Easy to install | Yes |
| Technical details | |
| Warranty period | 10 year(s) |
| Weight & dimensions | |
| Width | 186 mm |
| Depth | 656 mm |
| Height | 579 mm |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package net weight | 7.9 kg |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 505 mm |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 14 kg |
| Harmonized System (HS) code | HS7326909890 |
| Products per pallet (EU) | 48 pc(s) |
| Other features | |
| Country of origin | China |
