Neomounts WL30S-910BL16 TV pillar mount 40-75" - fixed - lockable - diam. 25-100 cm - portrait
- Brand
- NEOMOUNTS
- Product code
- WL30S-910BL16
- SKU
- V5NT1H3FYG1UD
- EAN/GTIN
- 8717371449520
- Maximum weight capacity: 50 kg
- Minimum screen size: 101.6 cm (40") Maximum screen size: 190.5 cm (75")
- Minimum VESA mount: 200 x 100 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Black
Product Info

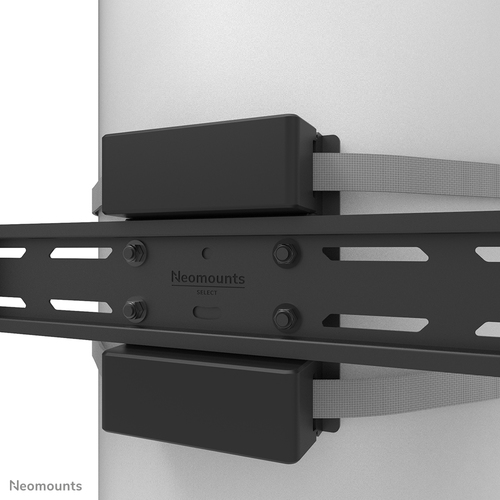

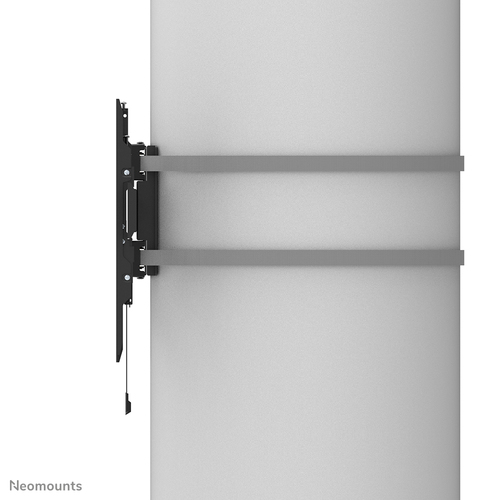

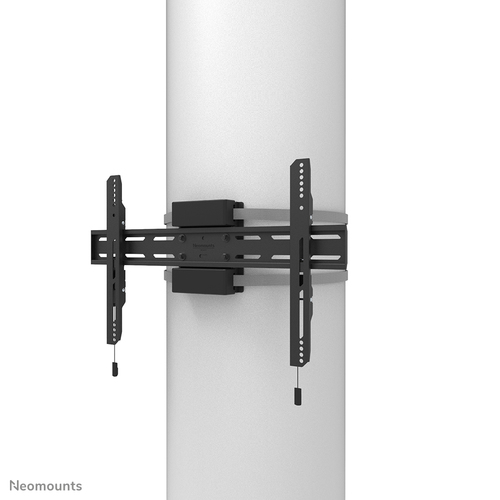

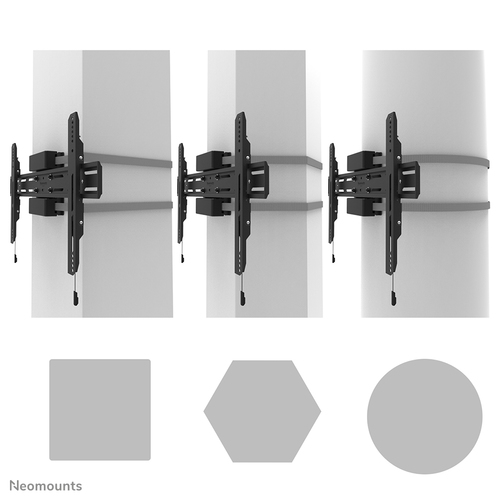

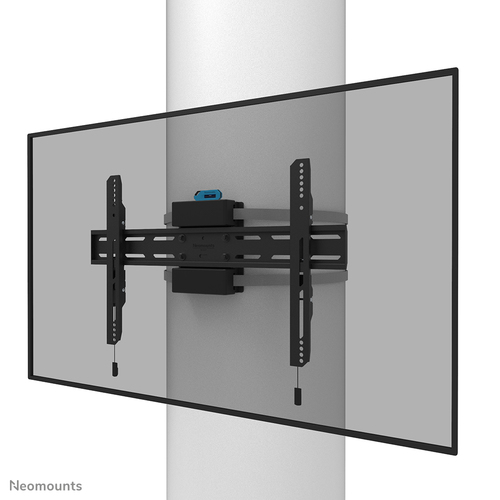

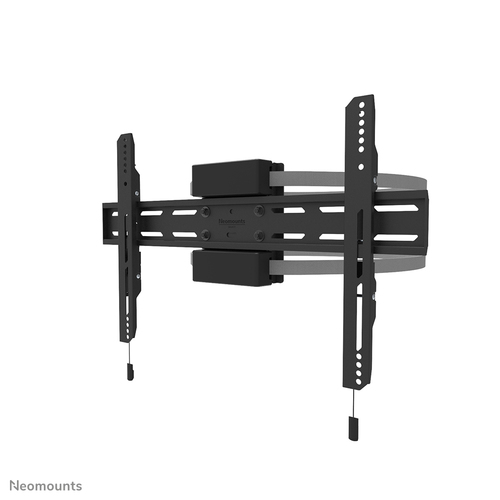

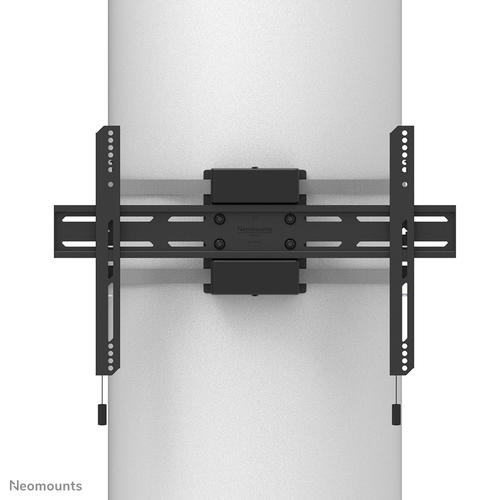

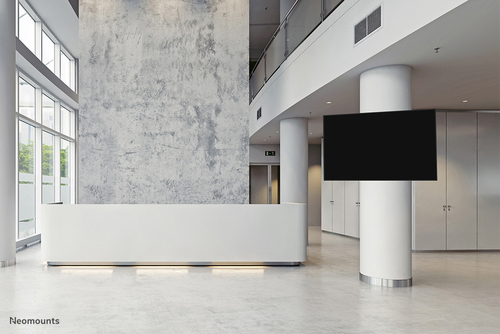

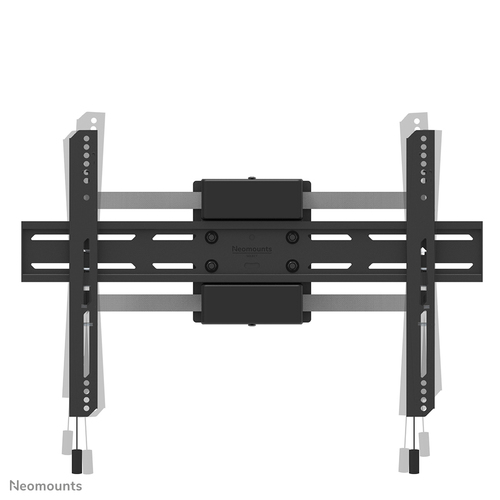

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.

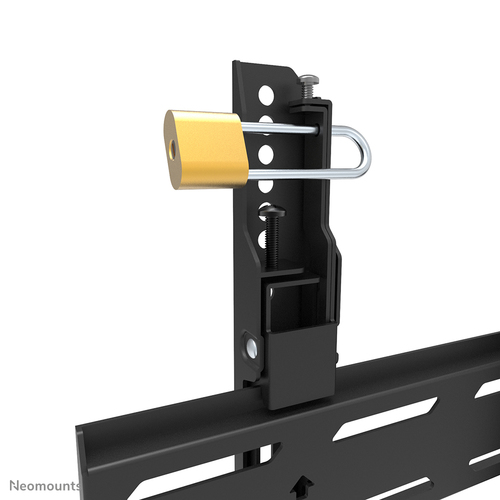

The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).

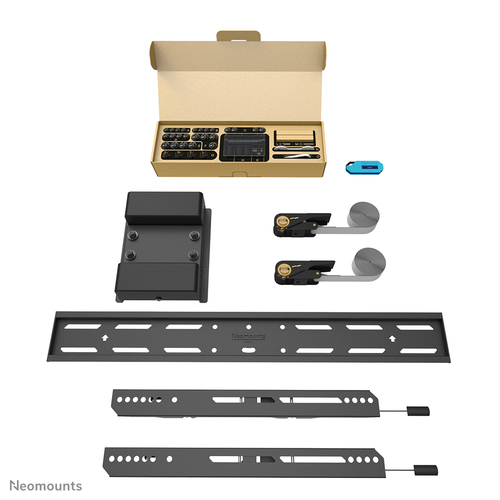

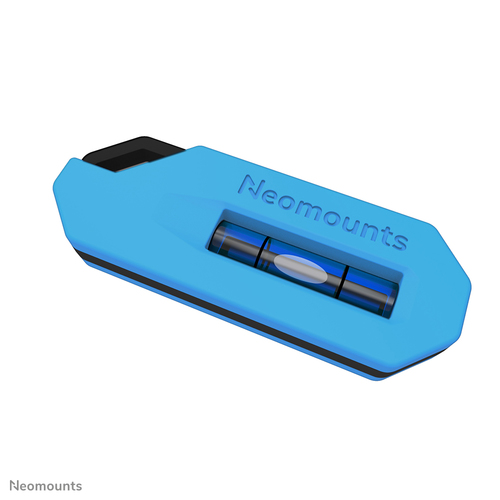

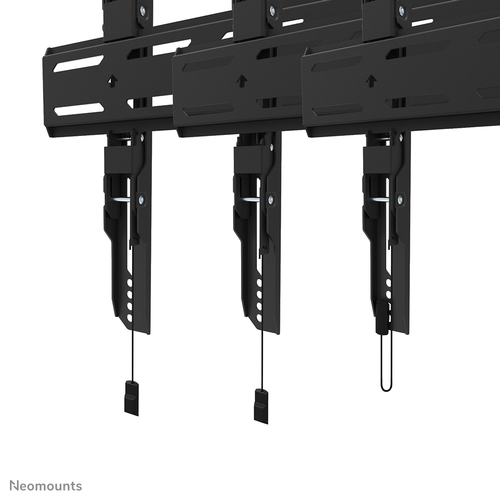

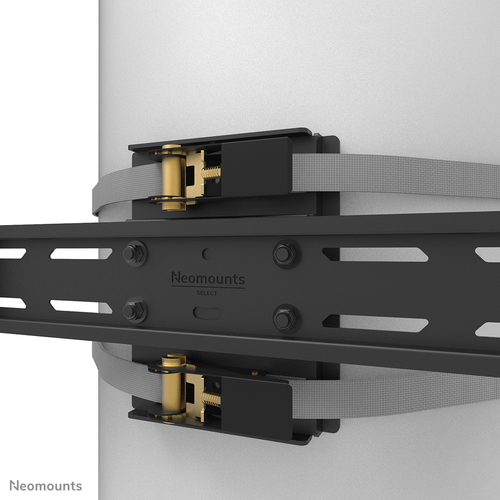

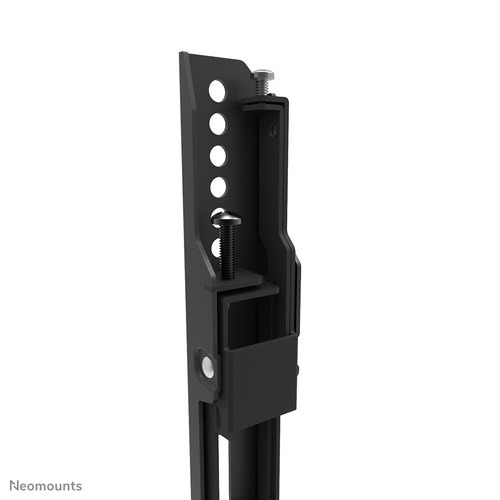

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
| Mounting | |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 50 kg |
| Maximum screen size | 190.5 cm (75") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Pole |
| Ergonomics | |
| Pivot angle | -3 - 3° |
| Cable management | No |
| Distance to the wall (max) | 6.7 cm |
| Design | |
| Product colour | Black |
| Accepts padlock | Yes |
| Technical details | |
| Country of origin | China |
| Package net weight | 5.3 kg |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Warranty period | 5 year(s) |
| Weight & dimensions | |

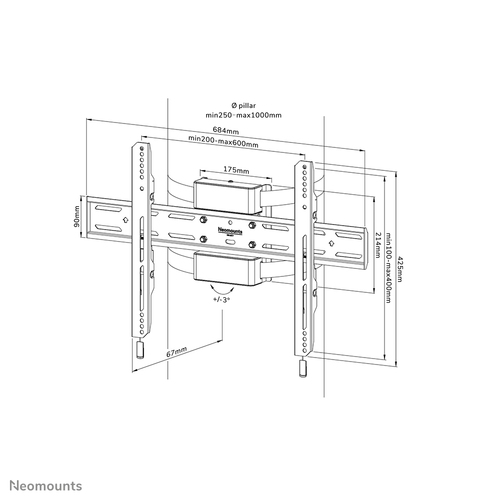

| Width | 684 mm |
| Depth | 67 mm |
| Height | 425 mm |
| Packaging data | |
| Package width | 238 mm |
| Package depth | 74 mm |
| Package height | 900 mm |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 258 mm |
| Master (outer) case height | 920 mm |
| Master (outer) case net weight | 16.8 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 48 pc(s) |
