Neomounts DS75-450BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
- Brand
- NEOMOUNTS
- Product code
- DS75-450BL2
- SKU
- VX3O00JTNCXSI
- Maximum weight capacity: 8 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- Black
Product Info

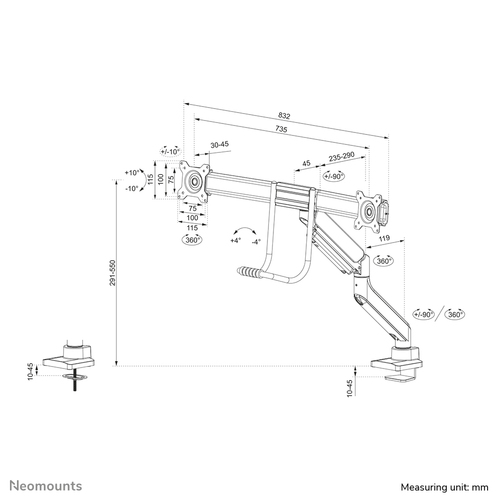

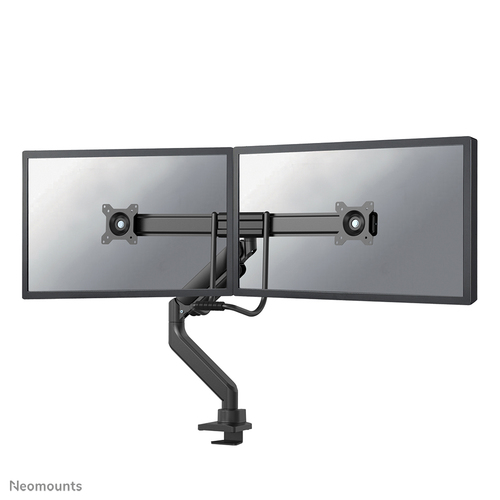

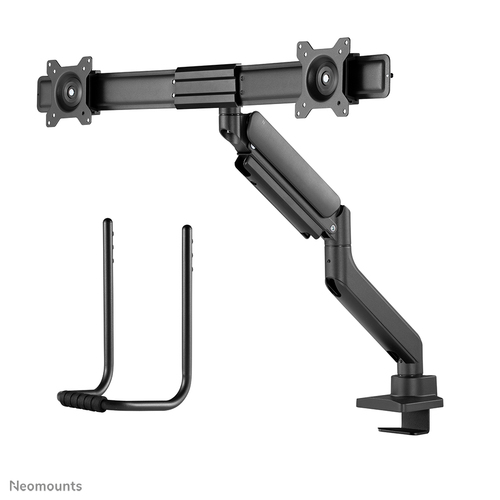

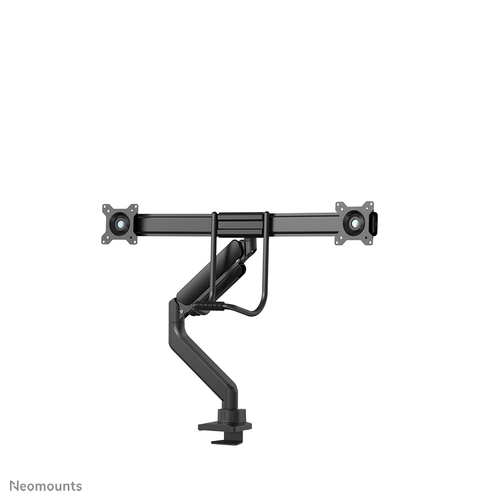

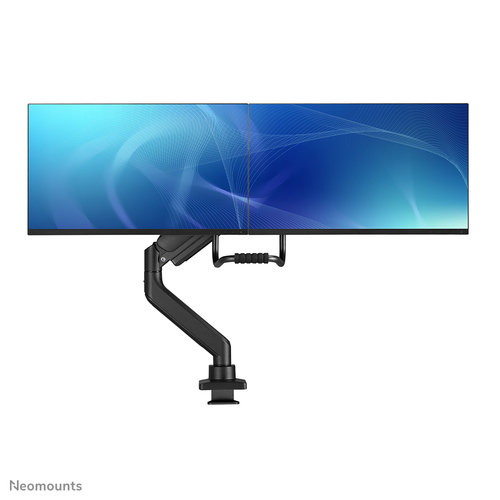

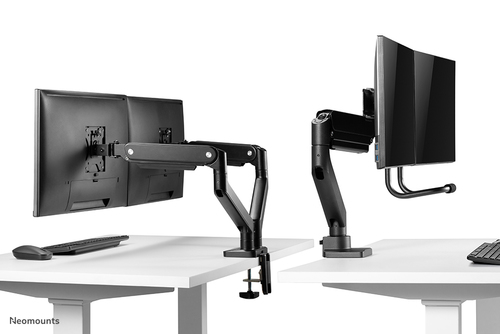

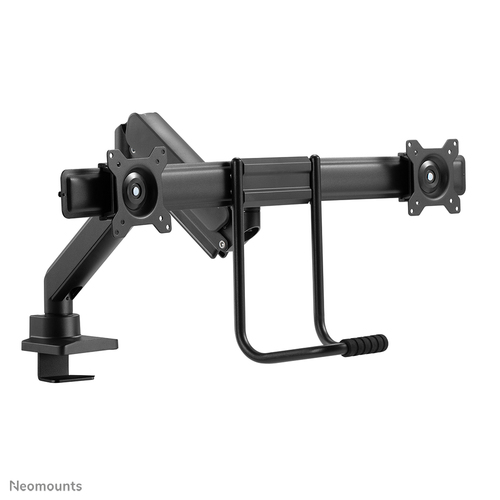

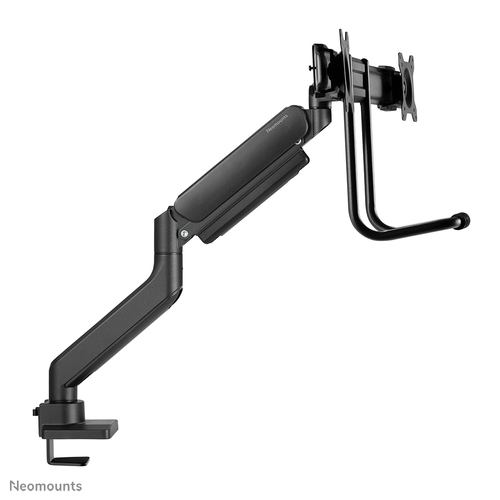

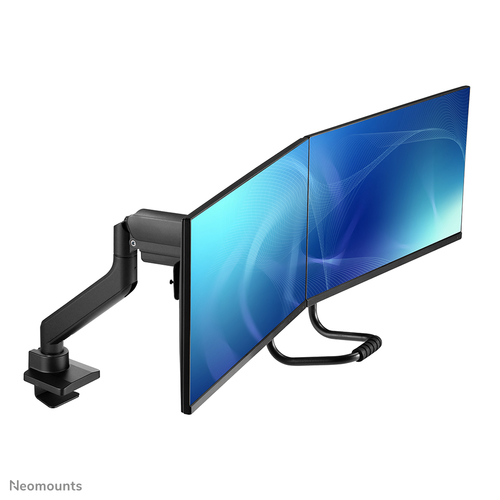

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.

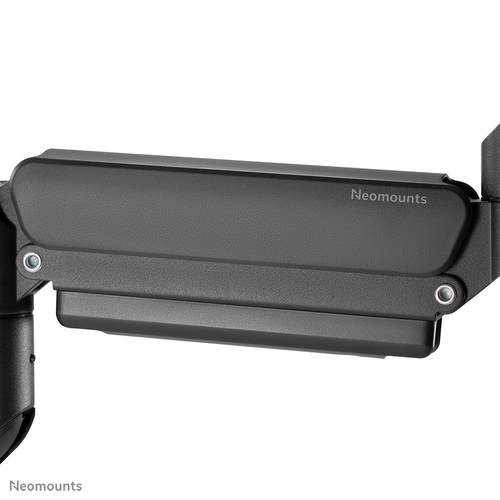

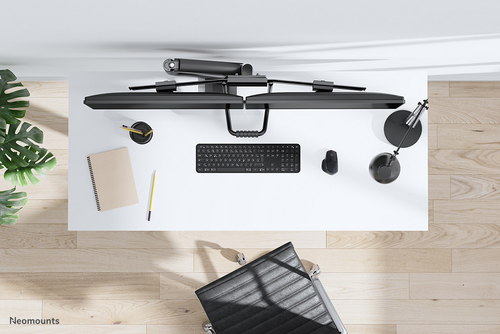

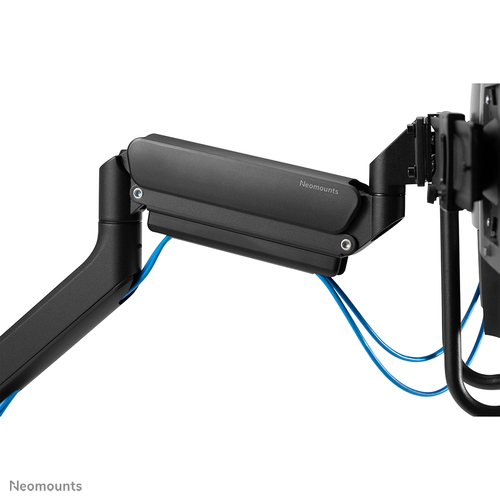

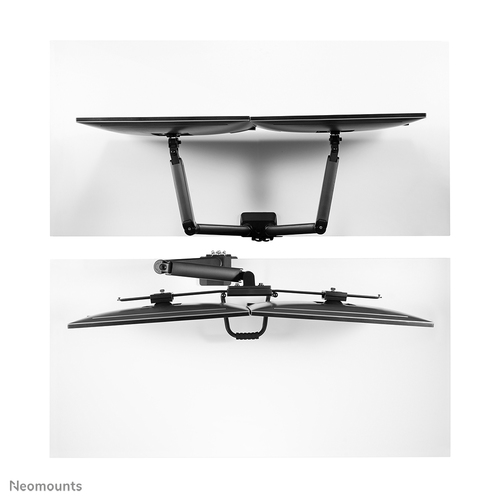

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

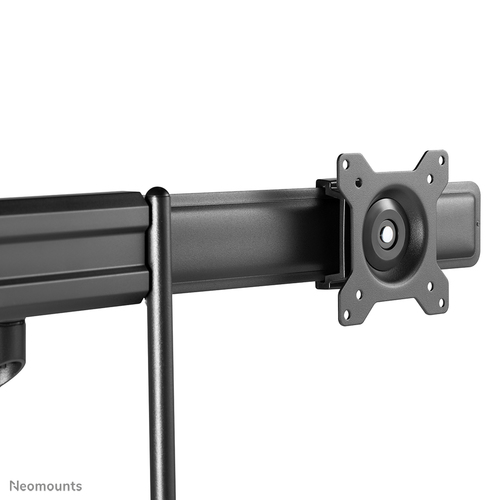

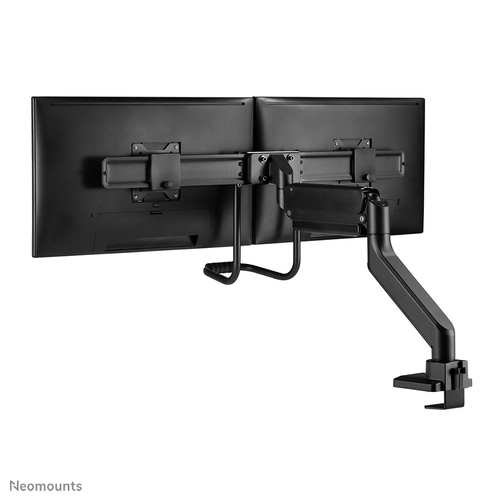

The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
| Mounting | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Ergonomics | |
| Height adjustment | Yes |

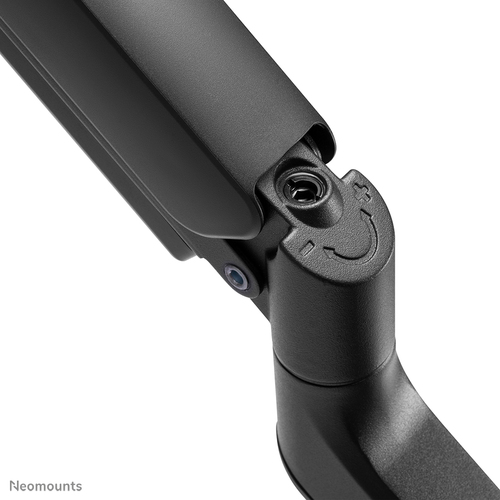

| Height adjustment type | Gas spring |
| Height adjustment range | 277 - 560 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 505 mm |
| Tilt angle range | -10 - 10° |
| Swivel angle | 20° |
| Swivel angle range | -10 - 10° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 761 mm |
| Depth | 115 mm |
| Height | 646 mm |
| Package width | 320 mm |
| Package depth | 152 mm |
| Package height | 445 mm |
| Package net weight | 7.9 kg |
| Packaging content | |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 460 mm |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 14.3 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Other features | |
| Country of origin | China |
