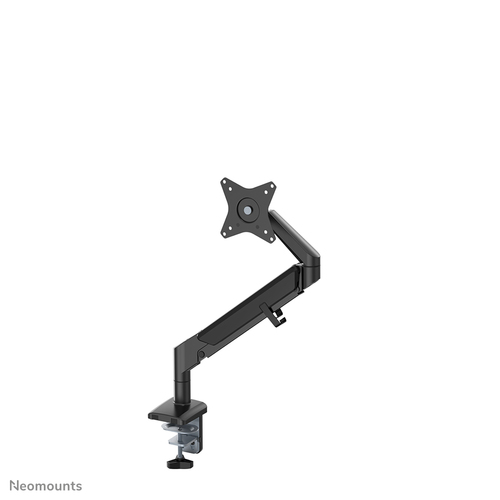

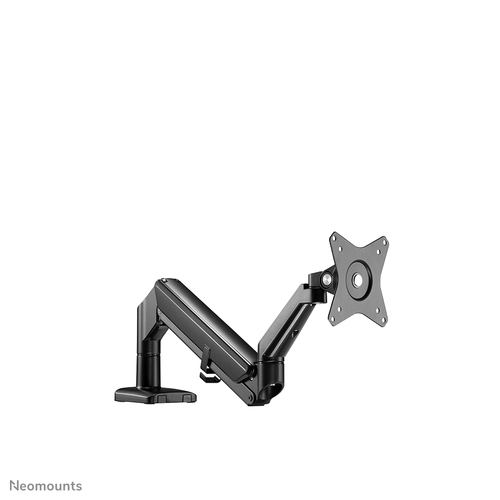

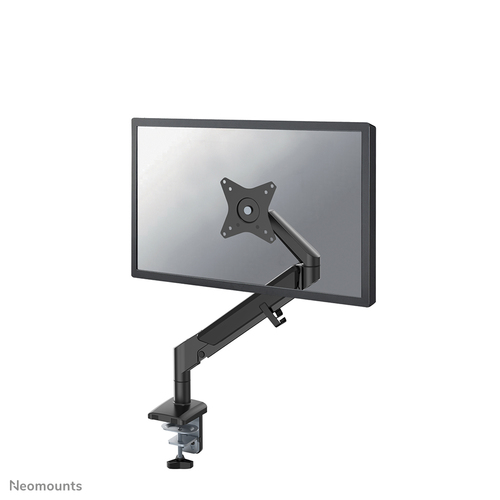

Neomounts DS70-810BL1 monitor mount / stand

Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop


Brand
NEOMOUNTS
Product code
DS70-810BL1
SKU
QJR9E8D8UJUCJ
EAN/GTIN
8717371449216
  • Maximum weight capacity: 9 kg
  • Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
  • Number of displays supported: 1
  • Clamp/Bolt-through Mounting type: Desk
  • Maximum VESA mount: 100 x 100 mm
  • Gas spring Height adjustment Tilt adjustment
  • Cable management
  • Black
€141.71 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

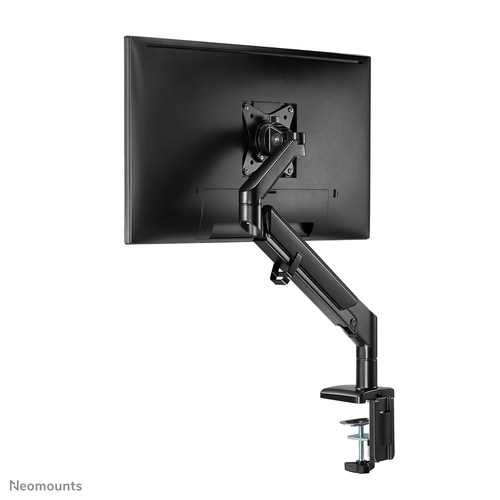

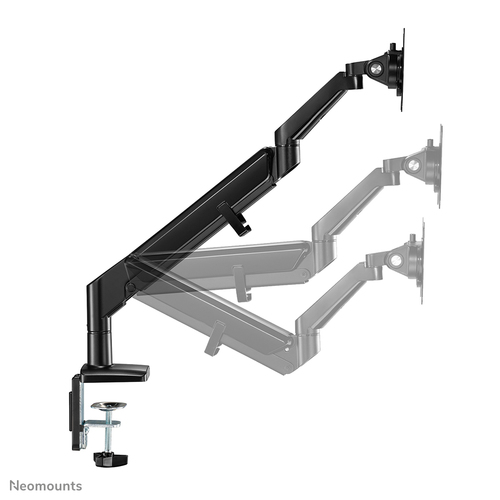

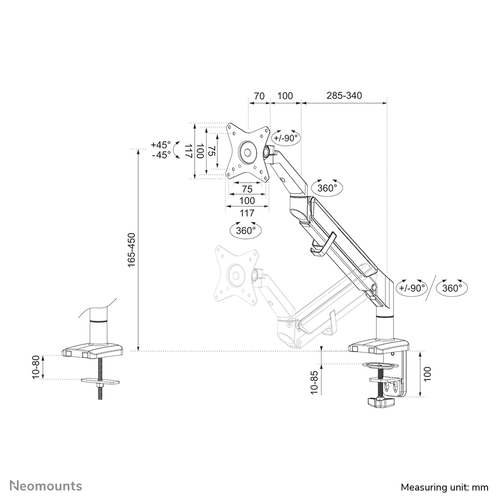

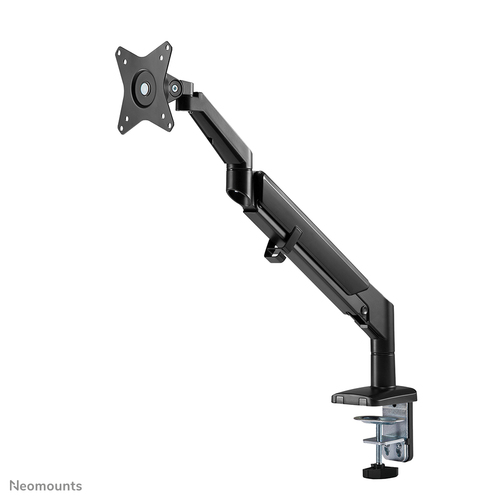

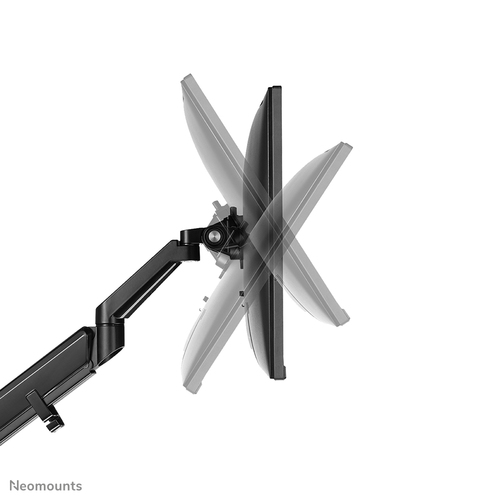

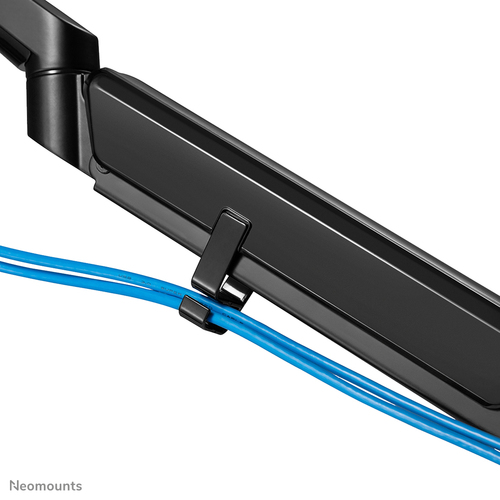

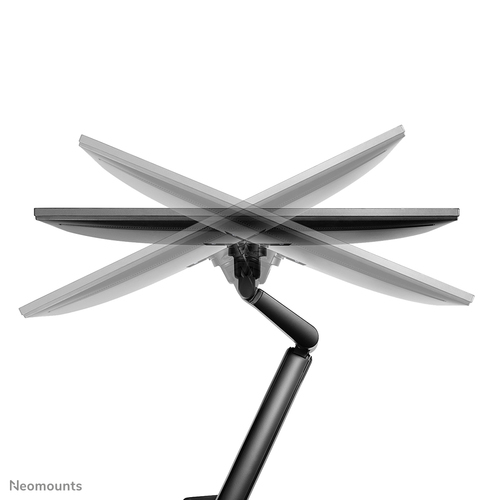

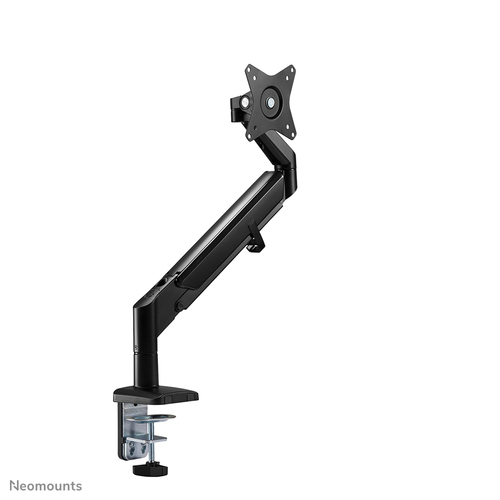

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

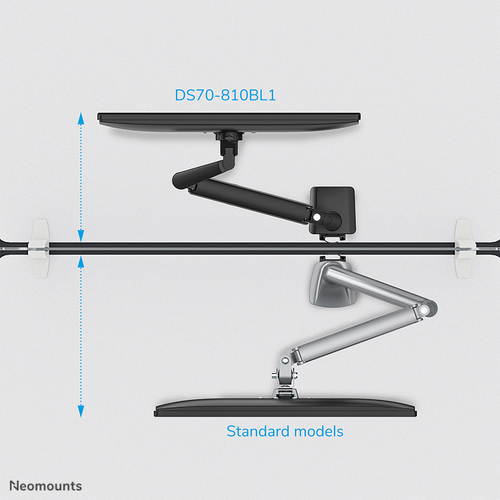

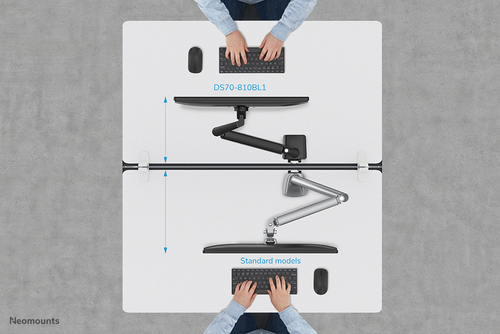

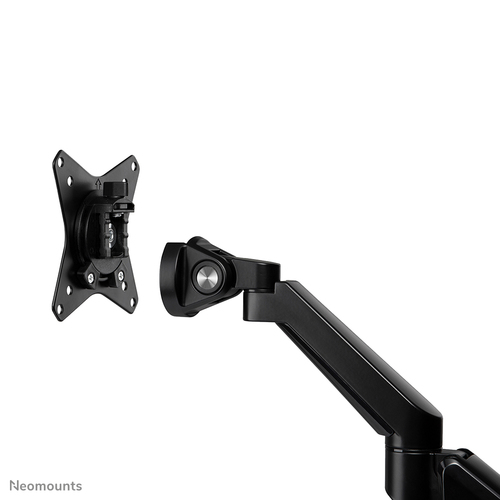

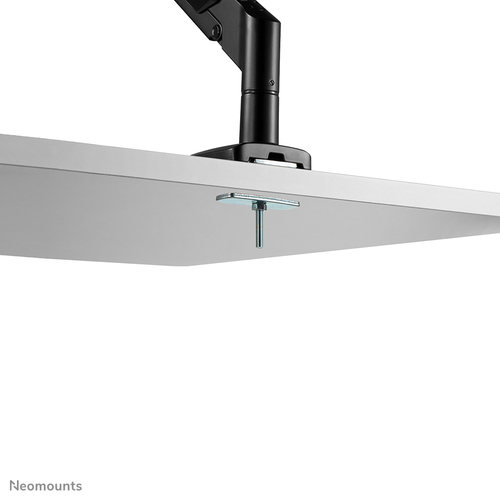

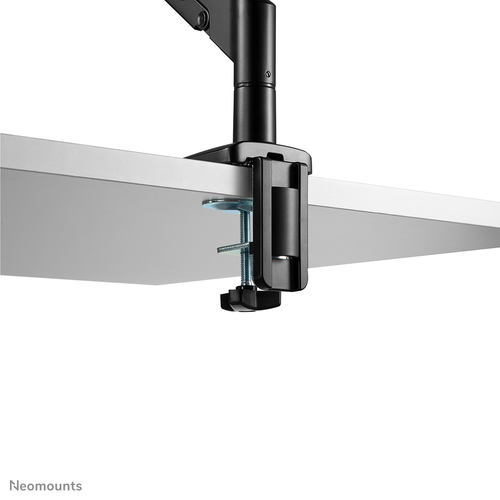

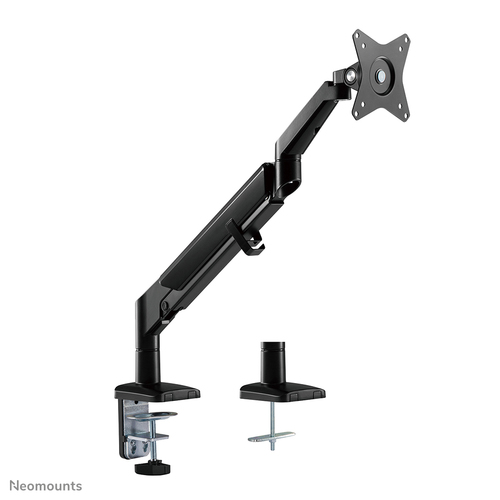

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Mounting
Minimum screen size 43.2 cm (17")
Maximum weight capacity 9 kg
Maximum screen size 81.3 cm (32")
Mounting Clamp/Bolt-through
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75,100 x 100 mm
Number of displays supported 1
Mounting type Desk
Ergonomics
Height adjustment Yes

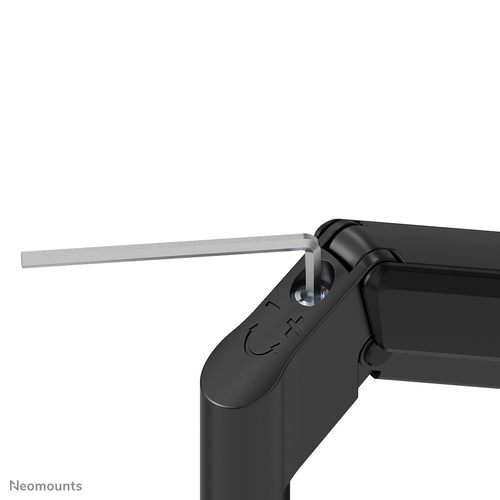

Height adjustment type Gas spring
Height adjustment range 265 - 550 mm
Adjustable depth Yes
Depth adjustment range 0 - 490 mm
Tilt angle range -45 - 45°
Swivel angle range -90 - 90°
Angle of rotation 180°
Cable management Yes
Rotating Yes
Tilt adjustment Yes
Design
Product colour Black
Orientation Landscape/Portrait
Weight & dimensions
Width 117 mm
Depth 555 mm
Height 615 mm
Package width 222 mm
Package depth 117 mm
Package height 400 mm
Package net weight 3.6 kg
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Master (outer) case width 465 mm
Master (outer) case length 415 mm
Master (outer) case height 370 mm
Products per master (outer) case 6 pc(s)
Master (outer) case net weight 18 kg
Harmonized System (HS) code 7326909890
Products per pallet (EU) 72 pc(s)
Other features
Country of origin China
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
