Neomounts WL40S-840BL12 TV mount wall 32-55" - full motion - fast installation
- Brand
- NEOMOUNTS
- Product code
- WL40S-840BL12
- SKU
- HFR42H0QUQ2UI
- EAN/GTIN
- 8717371448806
- Maximum weight capacity: 40 kg
- Minimum screen size: 81.3 cm (32") Maximum screen size: 139.7 cm (55") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 200 x 200 mm
- Number of displays supported: 1
- Tilt adjustment
- Cable management
- Black
Product Info

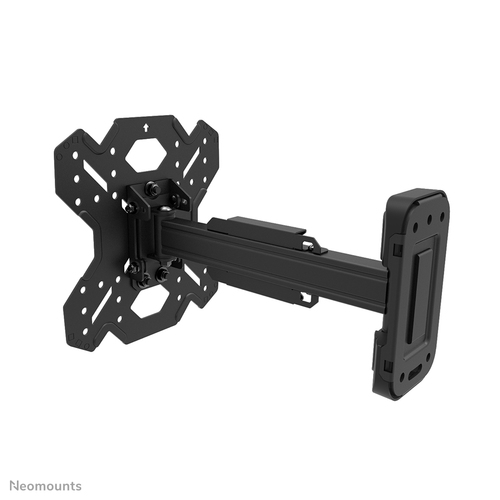

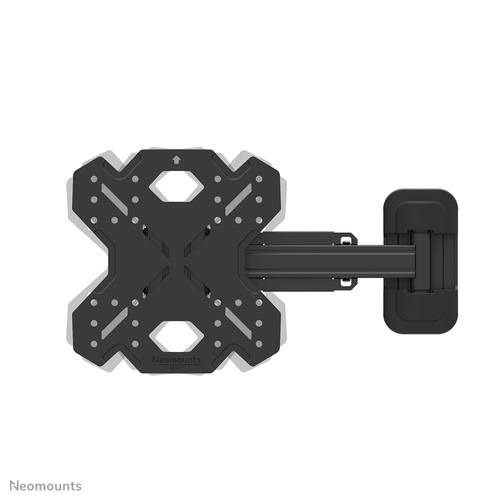

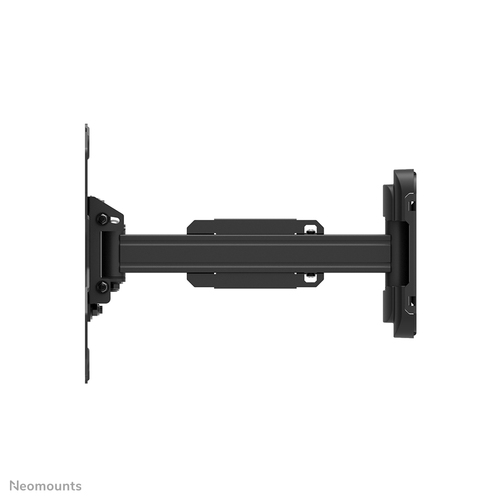

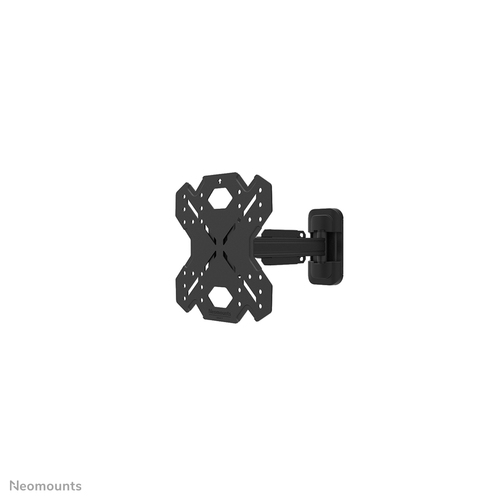

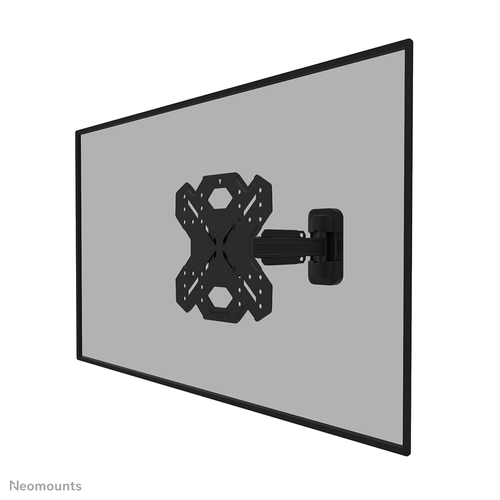

The Neomounts WL40S-840BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (30°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

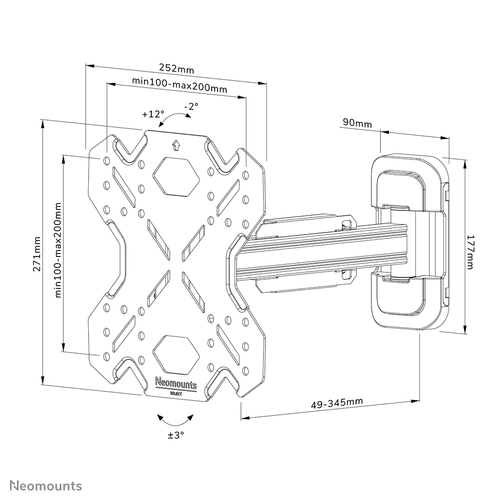

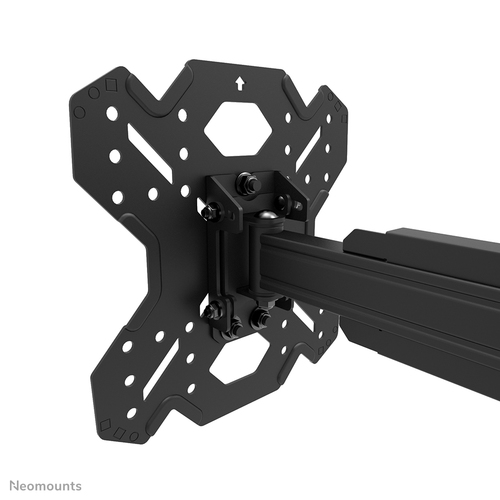

The LEVEL 850 wall mount has a depth of 4,9-34,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200mm.

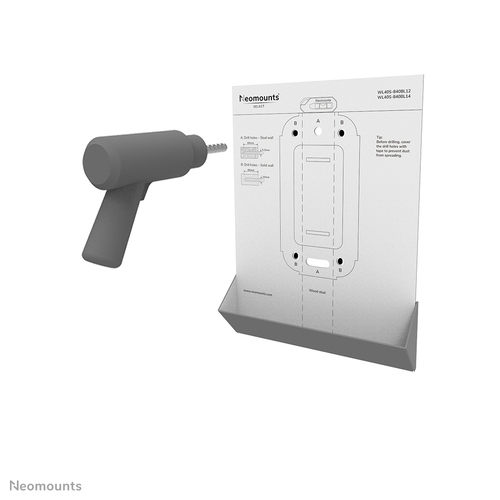

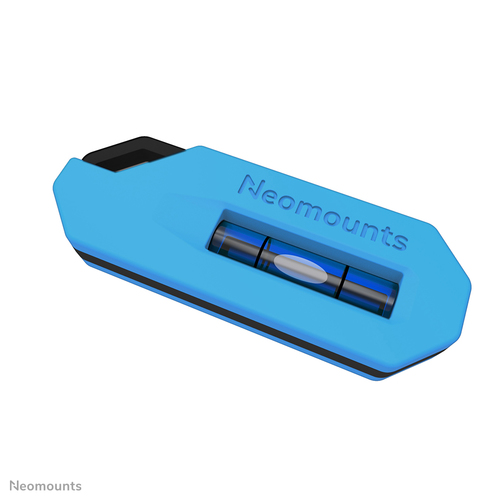

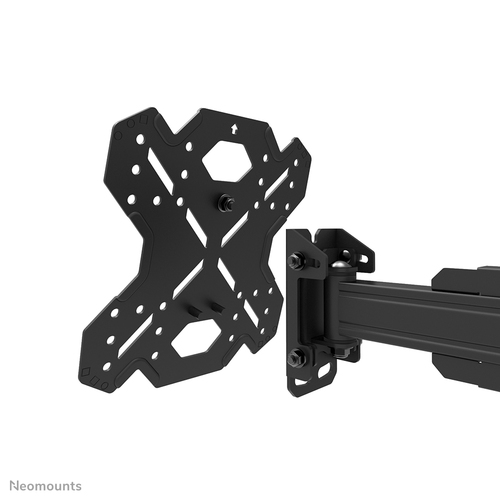

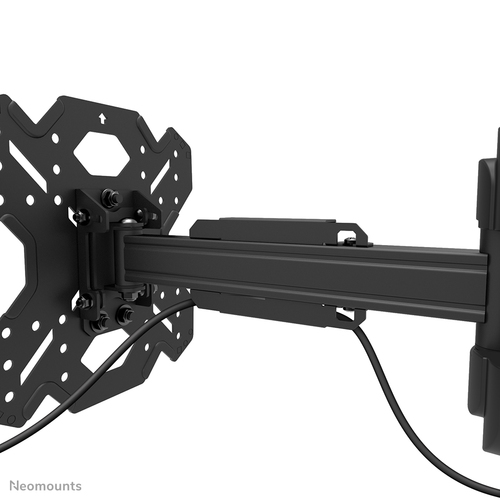

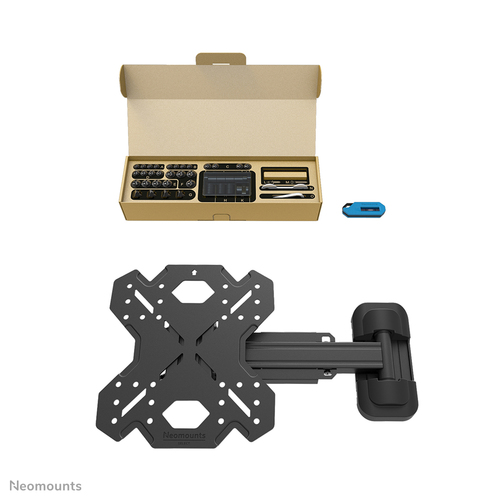

The WL40S-840BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 40 kg |
| Maximum screen size | 139.7 cm (55") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,200 x 100,200 x 200 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivel angle | 30° |
| Cable management | Yes |
| Distance to the wall (max) | 34.5 cm |

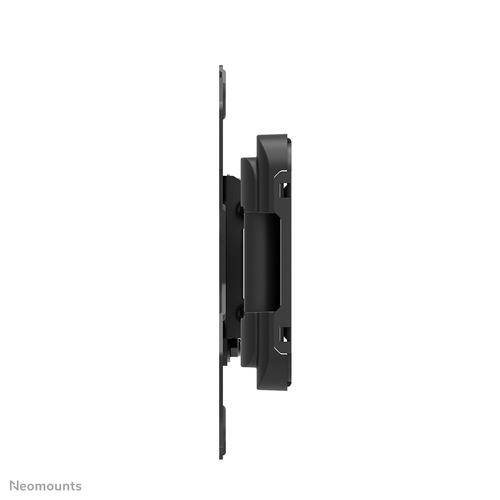

| Distance to the wall (min) | 4.9 cm |
| Design | |
| Product colour | Black |
| Technical details | |
| Country of origin | China |
| Package net weight | 4.1 kg |
| Quantity per pack | 1 pc(s) |

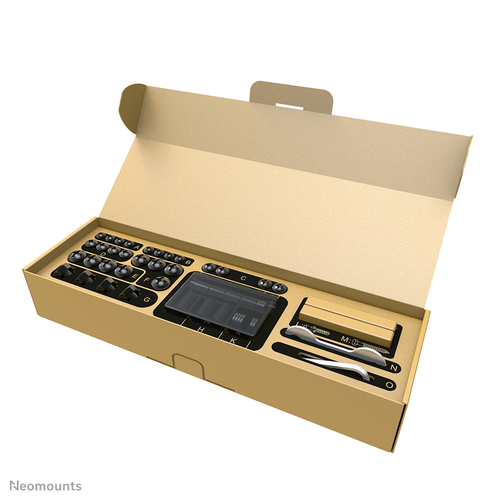

| Packaging content | |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Weight & dimensions | |
| Width | 252 mm |
| Depth | 49 mm |
| Height | 271 mm |
| Packaging data | |
| Package width | 511 mm |
| Package depth | 332 mm |
| Package height | 62 mm |
| Logistics data | |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 267 mm |
| Master (outer) case height | 352 mm |
| Master (outer) case net weight | 13 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 96 pc(s) |
