Neomounts FPMA-HAW100HC Medical monitor arm wall 10-32" - h 0-170 cm - gas spring
- Brand
- NEOMOUNTS
- Product code
- FPMA-HAW100HC
- SKU
- BH9GYY1ET05NJ
- EAN/GTIN
- 8717371443184
- Maximum weight capacity: 12 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 1
- Mounting type: Wall
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment
- Cable management
- White
Product Info

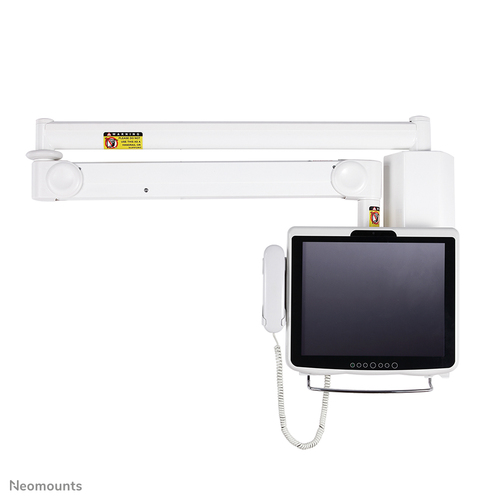

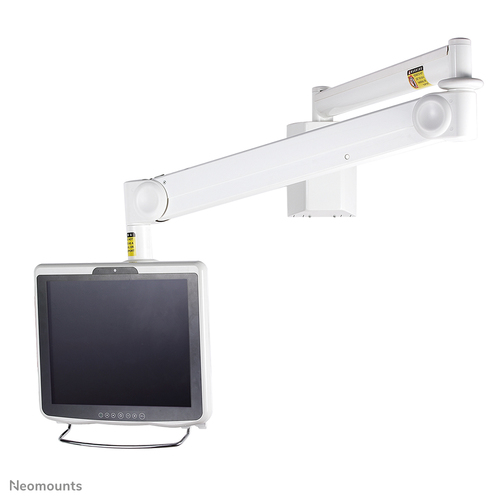

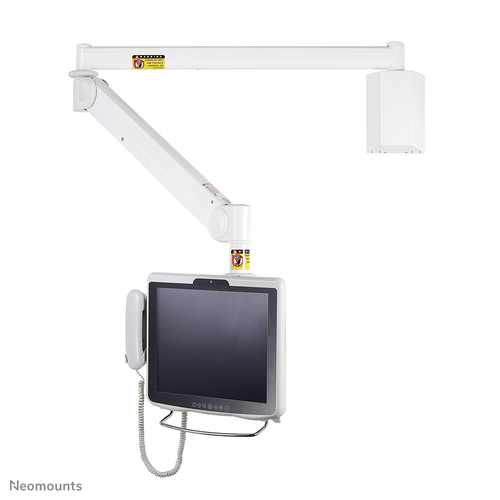

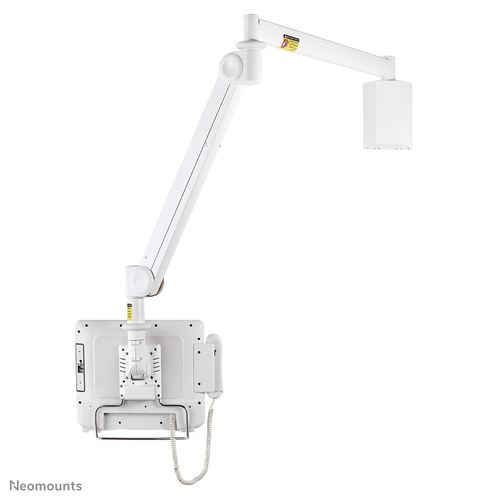

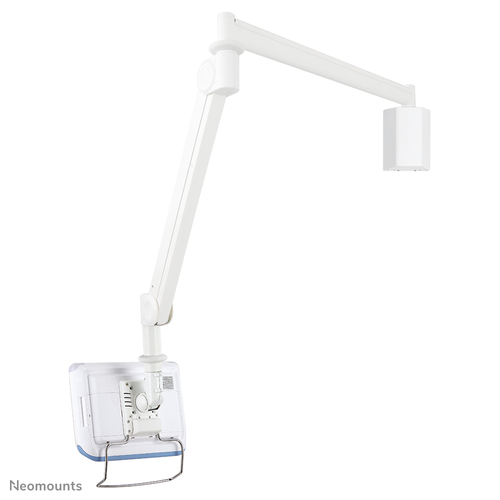

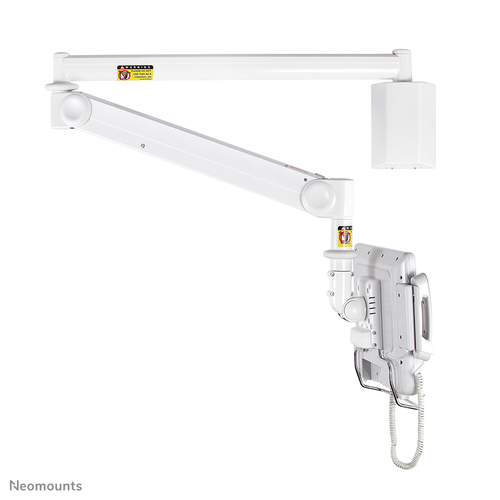

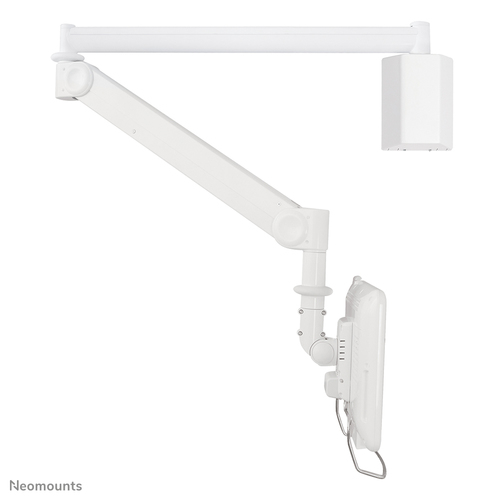

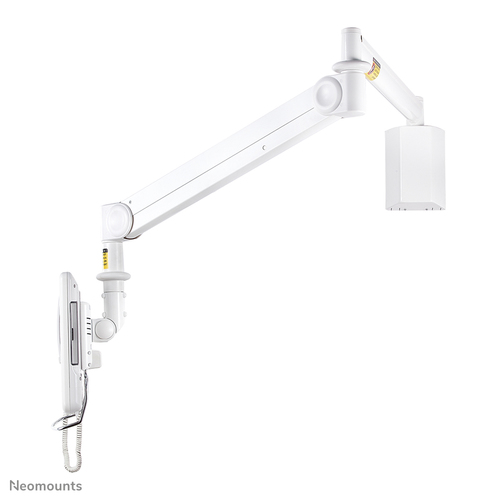

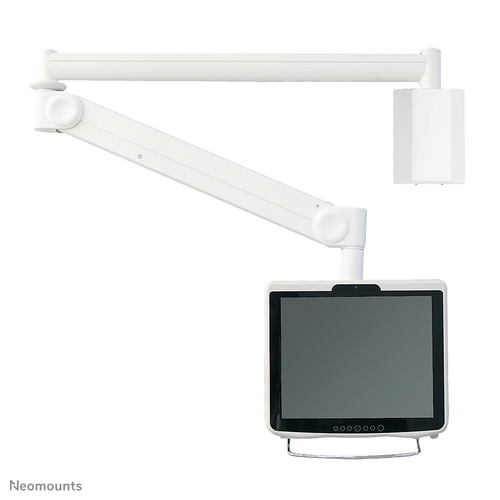

The Neomounts wall mount, model FPMA-HAW100HC is a tilt- and swivel wall mount for medical flat screens up to 32". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

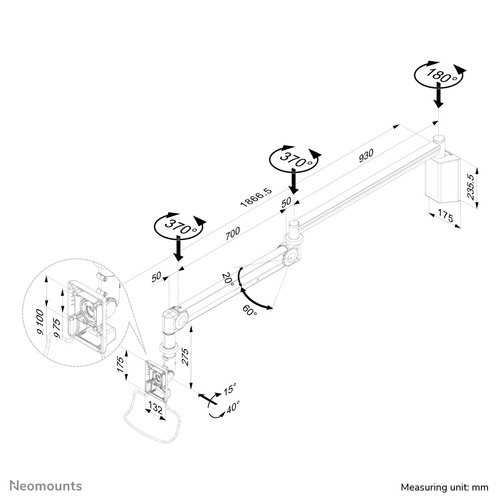

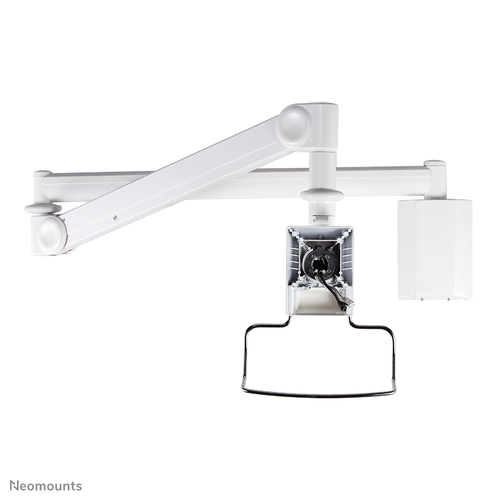

Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW100HC has two pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 6 - 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 12 kg |
| Maximum screen size | 81.3 cm (32") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Distance to the wall (max) | 170 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 1700 mm |
| Tilt angle range | 0 - 55° |
| Swivel angle | 370° |
| Swivel angle range | 0 - 270° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Design | |
| Product colour | White |
| Weight & dimensions | |
| Depth | 1870 mm |
| Height | 1700 mm |
| Package width | 1010 mm |
| Package depth | 300 mm |
| Package height | 400 mm |
| Package net weight | 14.2 kg |
| Logistics data | |
| Master (outer) case width | 1010 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 18.4 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 14.2 kg |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 8 pc(s) |
| Other features | |
| Country of origin | Taiwan |
