Neomounts tv wall mount
- Brand
- NEOMOUNTS
- Product code
- LED-W420BLACK
- SKU
- 5I4L0L3I4UPT6
- EAN/GTIN
- 8717371446321
- Maximum weight capacity: 35 kg
- Minimum screen size: 58.4 cm (23") Maximum screen size: 139.7 cm (55") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 400 x 400 mm
- Number of displays supported: 1
- Black
Product Info

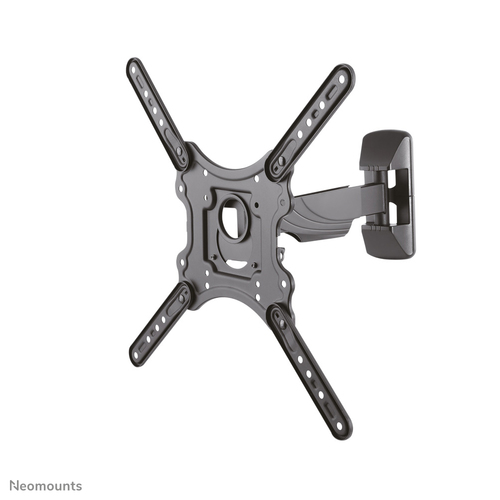

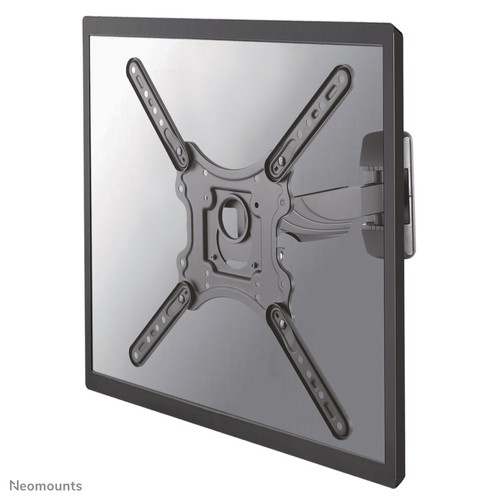

The Neomounts wall mount, model LED-W420BLACK is a full swing tilt- and swivel wall mount for flat screens up to 55". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomountss' tilt (12°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 6 to 28 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts NM-W440BLACK has three pivot points and is suitable for screens up to 55". The weight capacity of this product is 35 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.

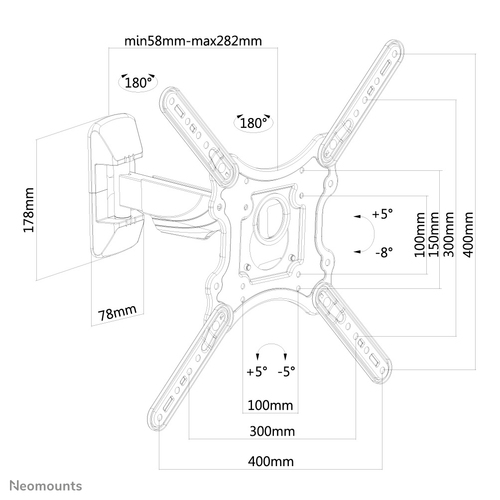

| Mounting | |
|---|---|
| Minimum screen size | 58.4 cm (23") |
| Maximum weight capacity | 35 kg |
| Maximum screen size | 139.7 cm (55") |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,400 x 400 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt angle range | 0 - 12° |
| Swivel angle | 180° |
| Angle of rotation | 10° |
| Distance to the wall (max) | 28 cm |
| Distance to the wall (min) | 6 cm |
| Design | |
| Product colour | Black |
| Technical details | |
| Country of origin | China |
| Package net weight | 2.6 kg |
| Packaging data | |
| Package width | 234 mm |
| Package depth | 56 mm |
| Package height | 400 mm |
| Logistics data | |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 310 mm |
| Master (outer) case gross weight | 25.7 kg |
| Master (outer) case net weight | 21.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 150 pc(s) |
