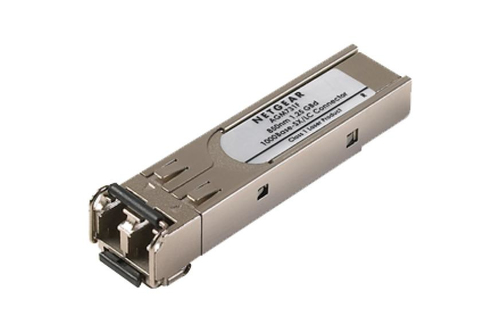

NETGEAR AGM731F network transceiver module

AGM731F - 606449029734

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches

Brand: Netgear
Product code: AGM731F
SKU: SBUB19IITC1X7
EAN/GTIN: 606449029734

Gigabit Ethernet “short-reach” fiber connectivity
LC duplex connector
Fits into SFP interfaces of all Fully Managed Switches
Fits into SFP interfaces of all Smart Switches
Fits into SFP interfaces of JGS524F
Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables
Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables
Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables

€152.42 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

LC, SFP, 1000Base-SX, 1000m, 850nm, 500 mW, RoHS

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Metal, Mean time between failures (MTBF): 87658 h. Input voltage: 3.3 V, Power consumption (typical): 0.5 W. Compliance certificates: CE, RoHS, Safety: UL 1950, CSA 22.2 No.60 950. Width: 57 mm, Depth: 13.8 mm, Height: 8.5 mm

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.

Specifications

Performance

SFP transceiver type Fiber optic

Maximum data transfer rate 1250 Mbit/s

Interface type SFP

Multi-mode fiber (MMF) supported Yes

Fiber optic connector LC

Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm

SFP transceiver standard SX

Maximum transfer distance 1000 m

Wavelength 850 nm

Ethernet LAN Yes

Networking standards IEEE 802.3z

Fiber ethernet cabling technology 1000BASE

Duplex system Full

Features

Product colour Silver

Housing material Metal

Mean time between failures (MTBF) 87658 h

Safety UL 1950, CSA 22.2 No.60 950

Power

Input voltage 3.3 V

Power consumption (typical) 0.5 W

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -10 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Weight & dimensions

Width 57 mm

Depth 13.8 mm

Height 8.5 mm

Packaging data

Number of products included 1 pc(s)

Technical details

Sustainability certificates CE, RoHS

Logistics data

Harmonized System (HS) code 85369010
