NETGEAR M4500-48XF8C
XSM4556-100EUS - 606449145694
NETGEAR M4500-48XF8C Managed L2/L3/L4 1U Black
- Brand
- Netgear
- Product code
- XSM4556-100EUS
- SKU
- 2PJ1H48H6ZRTE
- EAN/GTIN
- 606449145694
- The M4500-48XF8C switch provides 48-port SFP28 (1G, 10G and 25G fiber) and 8-port QSFP28 (40G, 50G and 100G fiber)
- With 4Tbps non-blocking fabric and 2Bpps forwarding rate, M4500-48XF8C delivers L2/L3/L4 and IPv4/IPv6 rich services for Professional AV-over-IP installations (SDVoE-ready certified)

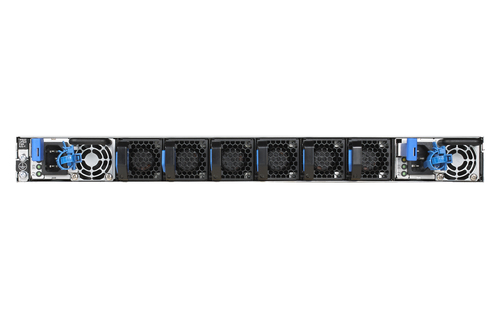

- Two modular power supplies are pre-installed for 1+1 power redundancy
- Six modular fan trays are pre-installed for 4+2 fan redundancy
- Line-rate spine and leaf topologies with the M4500-32C (32-port QSFP28 100G)
- Layer 3 feature set includes static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM
- Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300/M4500 switches
- Lifetime hardware warranty, Lifetime NBD and Lifetime online technical chat for investment protection and post-sales support
Product Info
M4500-48XF8C, 48 ports 1x25G; 1x10G; 1x1G, 1x10G default mode, RJ45 RS232 (Front), USB
NETGEAR M4500-48XF8C. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 4000 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U
The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
