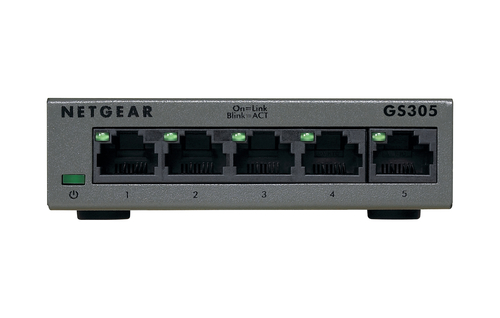

NETGEAR SOHO

GS305-300UKS - 606449140101

NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black

Brand: Netgear
Product code: GS305-300UKS
SKU: A75VL6KAJYZGH
EAN/GTIN: 606449140101

Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
Fanless design for silent operation
Desktop, wall-mountable or rack-mountable (GS324, GS348)

€37.51 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

5x 10/100/1000, RJ-45, DC 5 V, 0.7 A, 101 x 94 x 29 mm, 250 g

NETGEAR SOHO. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specifications

Management features

Switch type Unmanaged

Quality of Service (QoS) support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 5

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 5

Network

Networking standards IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support Yes

Full duplex Yes

Auto MDI/MDI-X Yes

Data transmission

Switching capacity 10 Gbit/s

MAC address table 2000 entries

Latency (1 Gbps) 2.6 µs

Jumbo frames support Yes

Jumbo frames 9216

Packet forwarding rate (1 Gbps) 1448000 pps

Packet buffer memory 0.128 MB

Security

Queue scheduling algorithms Weighted Round Robin (WRR)

Design

Rack mounting No

Stackable No

Product colour Black

Housing material Metal

LED indicators Activity, Link, Power

Wall mountable Yes

Certification CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD

Performance

Fanless Yes

Mean time between failures (MTBF) 3831422 h

Power

DC input voltage 5 V

Input current 0.7 A

Power consumption (max) 2.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 0 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Heat dissipation 7.35 BTU/h

Weight & dimensions

Width 101 mm

Depth 94 mm

Height 29 mm

Weight 250 g

Packaging data

Package width 142 mm

Package depth 238 mm

Package height 64 mm

Package weight 484 g

Logistics data

Harmonized System (HS) code 85176990
