Neomounts NM-D135D3BLACK Monitor arm 10-27"
- Brand
- NEOMOUNTS
- Product code
- NM-D135D3BLACK
- SKU
- HZGVYCIAWLFU9
- EAN/GTIN
- 8717371445836
- Maximum weight capacity: 8 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 3
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Manual Height adjustment
- Black
Product Info

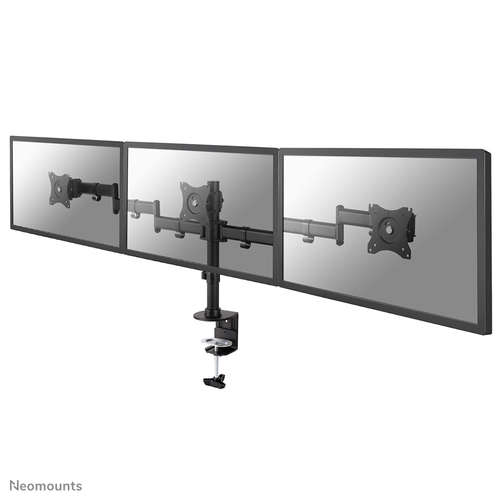

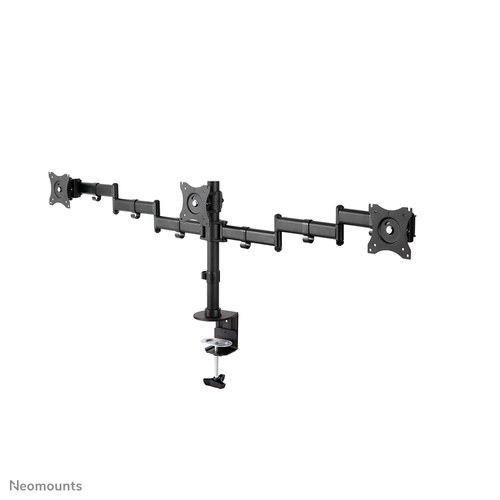

The Neomounts desk mount, model NM-D135D3BLACK is a tilt-, swivel and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 49,8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

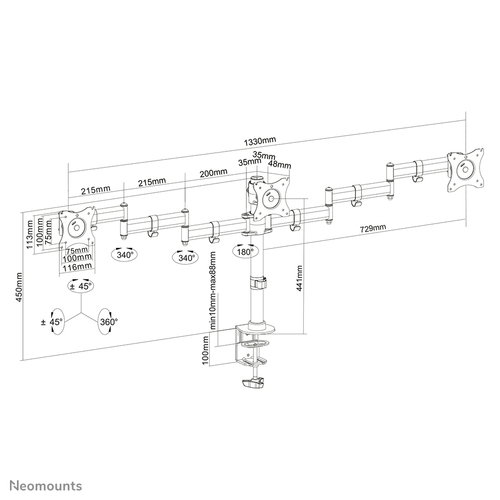

Neomounts NM-D135D3BLACK has four pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Bolt-through |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 3 |
| Mounting type | Desk |
| Distance to the wall (min) | 5 cm |
| Distance to the wall (max) | 63 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 400 mm |
| Tilt angle range | 0 - 90° |
| Swivel angle | 90° |
| Angle of rotation | 360° |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Depth | 729 mm |
| Height | 498 mm |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 620 mm |
| Logistics data | |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 285 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Other features | |
| Country of origin | China |
