Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
- Brand
- NEOMOUNTS
- Product code
- FPMA-HAW200
- SKU
- U04FC8UY5CTJ5
- Maximum weight capacity: 7 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 1
- Mounting type: Wall
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment
- Cable management
- White
Product Info

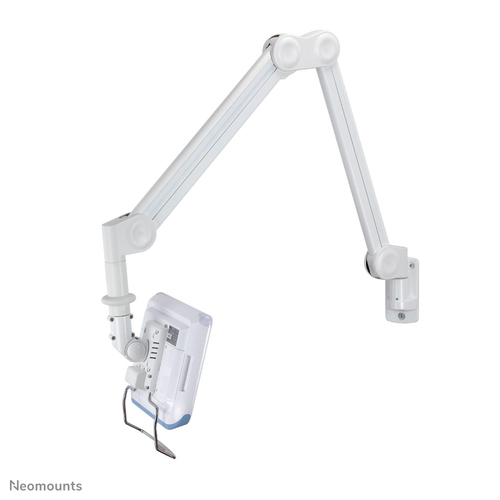

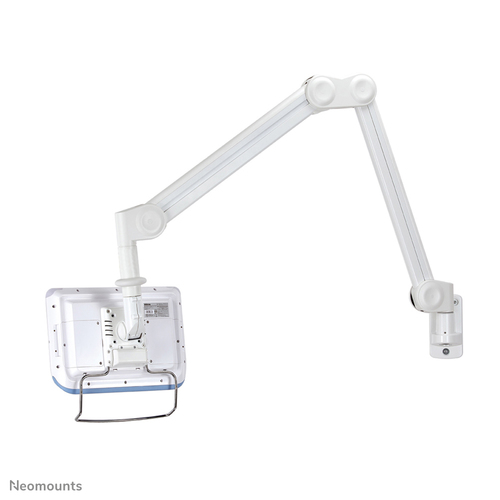

The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.
Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Distance to the wall (max) | 149 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 1490 mm |
| Tilt angle range | 0 - 55° |
| Swivel angle | 370° |
| Cable management | Yes |
| Design | |
| Product colour | White |
| Weight & dimensions | |
| Depth | 1490 mm |
| Height | 1490 mm |
| Package width | 1150 mm |
| Package depth | 160 mm |
| Package height | 430 mm |
| Package net weight | 8.55 kg |
| Logistics data | |
| Master (outer) case width | 1150 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 12.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 8.55 kg |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 12 pc(s) |
| Other features | |
| Country of origin | Taiwan |
