Neomounts tv wall mount
- Brand
- NEOMOUNTS
- Product code
- FPMA-W940
- SKU
- 8WWXAVZR4C1Q0
- EAN/GTIN
- 8717371442101
- Maximum weight capacity: 9 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 76.2 cm (30") Wall
- Minimum VESA mount: 75 x 75 mm Maximum VESA mount: 100 x 100 mm
- Number of displays supported: 1
- Height adjustment Gas spring
- Silver
Product Info

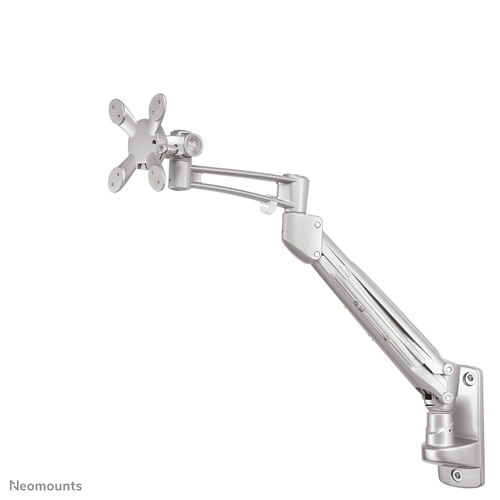

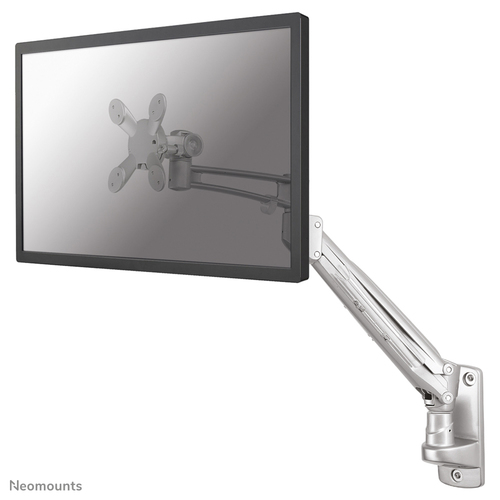

The Neomounts wall mount, model FPMA-W940 is a tilt-, swivel and rotatable wall mount for flat screens up to 30" (76 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

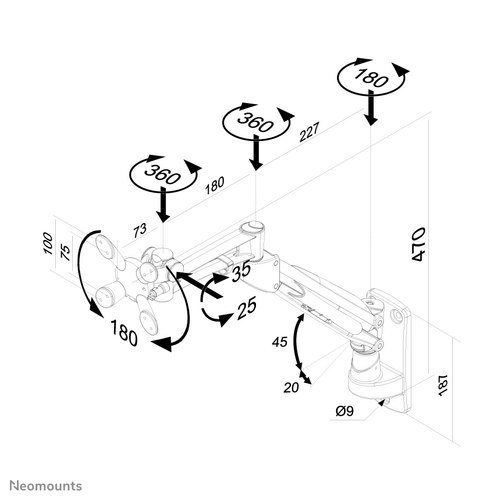

Neomounts's versatile tilt (60°), rotate (180°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 42 centimetres using a gas spring. Depth adjustable from 10 to 48 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts FPMA-W940 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 9 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 %26 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 76.2 cm (30") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 420 mm |
| Tilt angle range | 0 - 60° |
| Swivel angle | 360° |
| Angle of rotation | 180° |
| Distance to the wall (max) | 48 cm |
| Distance to the wall (min) | 10 cm |
| Design | |
| Product colour | Silver |
| Technical details | |
| Country of origin | Taiwan |
| Package net weight | 4 kg |
| Weight & dimensions | |
| Height | 420 mm |
| Packaging data | |
| Package width | 630 mm |
| Package depth | 130 mm |
| Package height | 330 mm |
| Logistics data | |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 130 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 4.5 kg |
| Master (outer) case net weight | 4 kg |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 30 pc(s) |
