Neomounts PLASMA-C100D Dual monitor/TV mount ceiling 37-75" - h 67-107 cm
- Brand
- NEOMOUNTS
- Product code
- PLASMA-C100D
- SKU
- NY3OWGINUD19D
- EAN/GTIN
- 8717371441739
- Maximum weight capacity: 50 kg Black
- Maximum screen size: 190.5 cm (75")
- Mounting type: Ceiling
- Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 800 x 450 mm
- Height adjustment
Product Info

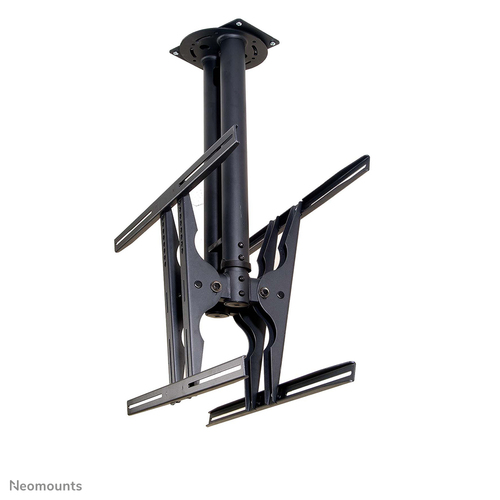

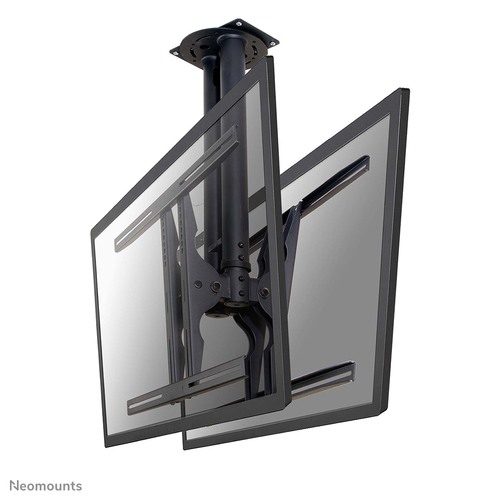

The Neomounts ceiling mount, model PLASMA-C100D is a dual-sided tilt- and swivel ceiling mount for flat screens up to 75" (191 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

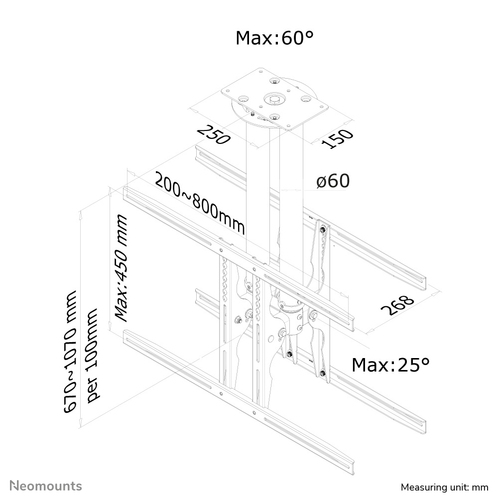

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 67 to 107 centimetres. If different heights are needed extension poles are available. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts PLASMA-C100D has one pivot point and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 100 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 200x200 to 800x450mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
By using extension poles (FPMA-CP100 up to FPMA-CP200) you can increase the distance to the ceiling. These can be ordered additionally. This pole replaces the original pole. Please note that to extend the PLASMA-C100D you will need two extension poles.
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37") |
| Maximum weight capacity | 50 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 450 mm |
| Number of displays supported | 2 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 670 - 1070 mm |
| Tilt angle range | 0 - 25° |
| Swivel angle | 60° |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Height | 1070 mm |
| Packaging data | |
| Package width | 950 mm |
| Package depth | 280 mm |
| Package height | 260 mm |
| Other features | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case net weight | 22 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 18 pc(s) |
| Master (outer) case width | 950 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 24.3 kg |
| Products per master (outer) case | 1 pc(s) |
