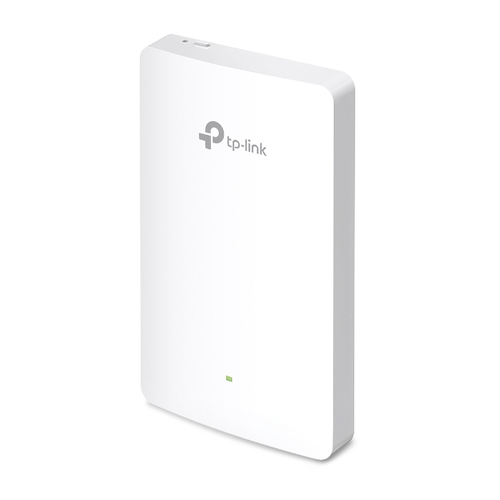

TP-Link Omada EAP615-WALL wireless access point
EAP615-WALL - 4897098682128
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP615-WALL
- SKU
- YR5FWIYTA0IUH
- EAN/GTIN
- 4897098682128
- Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
- Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag

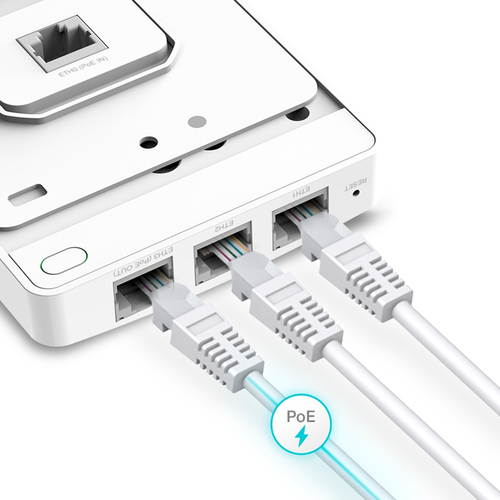

- Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
€112.12
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
IEEE 802.11ax/ac/n/g/b/, 2.4 / 5GHz, 574 / 1201Mbps, 802.3af/at PoE, 143 × 86 × 20 mm
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
The Smarter Cloud Solution for Business Networking.
AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

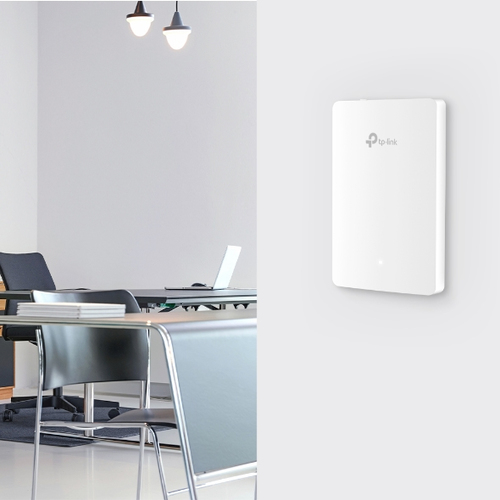

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
Specifications
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Automatic channel selection
Yes
Automatic channel scanning
Yes
MIMO
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
21 dBm
Security
Security algorithms
WPA, WPA2, WPA3
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Remote Authentication Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Protocols
STelnet using SSH v2
Yes
Management features
Syslog
Yes
Firmware upgradeable
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
Power
Power over Ethernet (PoE)
Yes
Design
Placement
Wall
Product colour
White
On/off switch
Yes
Reset button
Yes
LED indicators
Power
Certification
CE, FCC, RoHS
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
4 dBi
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
20 mm
Packaging data
Package width
385 mm
Package depth
495 mm
Package height
210 mm
Package weight
330 g
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Logistics data
Harmonized System (HS) code
85176990
