TP-Link CPE710 wireless access point 867 Mbit/s White Power over Ethernet (PoE)
- Brand
- TP-Link
- Product code
- CPE710
- SKU
- UA5EIAXPEV7R7
- EAN/GTIN
- 6935364053345
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

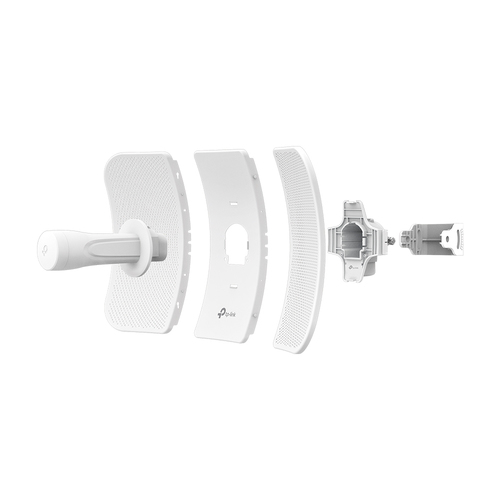

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Product Info
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
| Features | |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Channel bandwidth | 80 MHz |
| Automatic channel selection | Yes |
| MIMO | Yes |
| Wireless isolation | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Transmitting power | 27 dBmW |
| Security | |
| Security algorithms | HTTPS, SNMP, SSH, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| IGMP snooping | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Protocols | |
| Universal Plug and Play (UPnP) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 0.6 A |
| Design | |
| Placement | Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| LED indicators | Power |
| Certification | CE, FCC, RoHS, IC |
| Antenna | |
| Antenna gain level (max) | 23 dBi |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Weight & dimensions | |
| Width | 366 mm |
| Depth | 280 mm |
| Height | 207 mm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| PoE adapter included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
