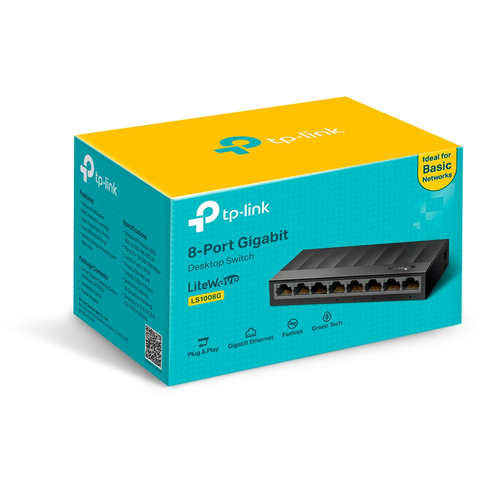

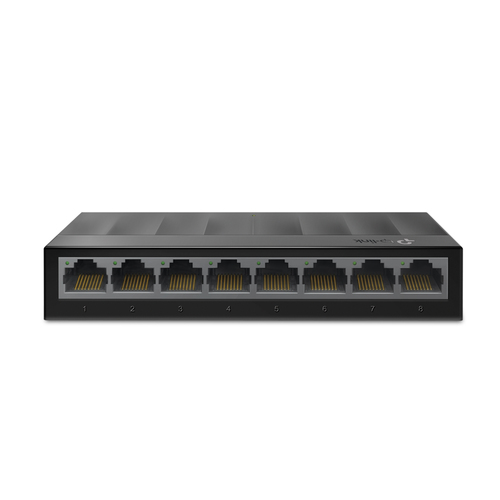

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch
- Brand
- TP-Link
- Product code
- LS1008G
- SKU
- RPE0SHKNIHZWW
- EAN/GTIN
- 6935364085513
- 8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed

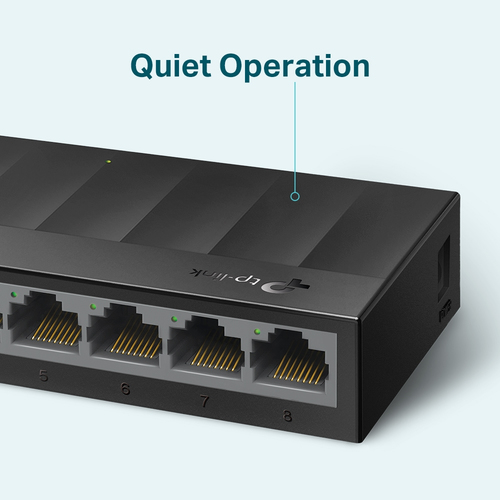

- Fanless design ensures quiet operation
Product Info
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

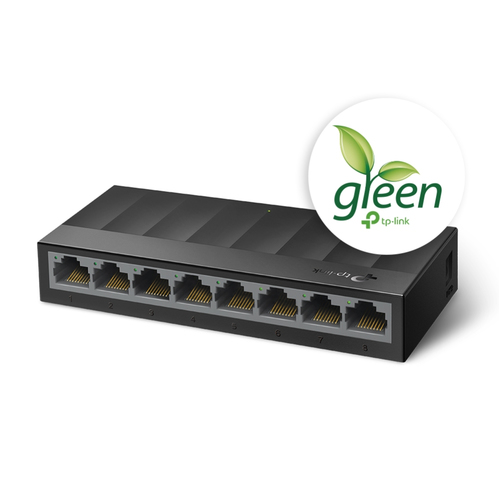

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

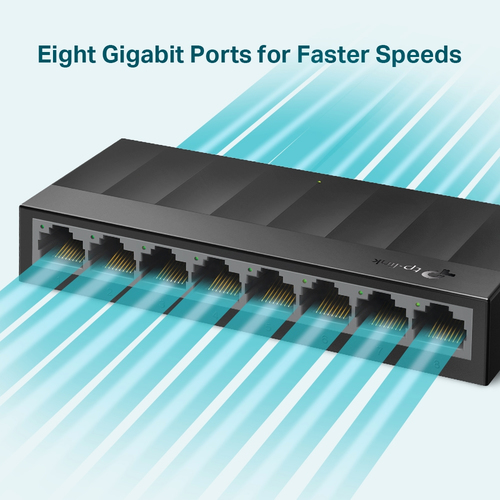

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 3.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 13.299 BTU/h |
| Weight & dimensions | |
| Width | 127 mm |
| Depth | 66.5 mm |
| Height | 23 mm |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| Package width | 90 mm |
| Package depth | 131 mm |
| Package height | 84 mm |
| Package weight | 220 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
