• InfiniteFix Product Image

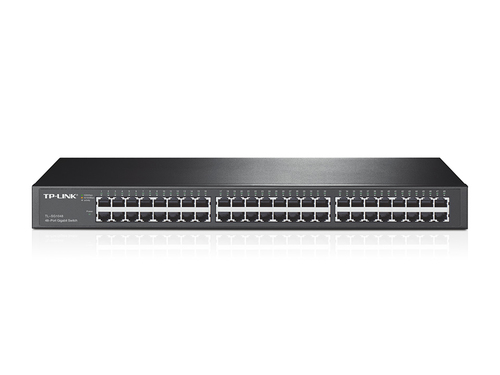

TP-Link TL-SG1048

TP-Link 48-Port Gigabit Rackmount Network Switch


Brand
TP-Link
Product code
TL-SG1048
SKU
8VD9IEXSITJZ6
EAN/GTIN
6935364020637
  • 48 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 18%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case
€260.29 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

What This Product Does
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

TP-LINK Green Technology
This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

High Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
Network
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex Yes
Half duplex Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Data transmission
Supported data transfer rates 10/100/1000 Mbps
Switching capacity 96 Gbit/s
Forwarding rate 71.4 Mpps
MAC address table 16000 entries
Store-and-forward Yes
Maximum data transfer rate 1 Gbit/s
Jumbo frames support Yes
Jumbo frames 12000
Protocols
Supported network protocols CSMA/CD, TCP/IP
Design
Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators Yes
Compatible products FCC, CE
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 32.29 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 32 - 104 °F
Heat dissipation 110.17 BTU/h
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
Packaging data
Cables included AC
User guide Yes
Package type Box
Rack mount kit Yes
Package width 528 mm
Package depth 336 mm
Package height 100 mm
Logistics data
Harmonized System (HS) code 85176990
Other features
Dimensions (WxDxH) 440 x 360 x 44 mm
Connectivity technology Wired
Bandwidth 96 Gbit/s
Connectivity LEDs Y
Dimensions (W x D x H) (imperial) 439.4 x 360.7 x 43.2 mm (17.3 x 14.2 x 1.7")
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
