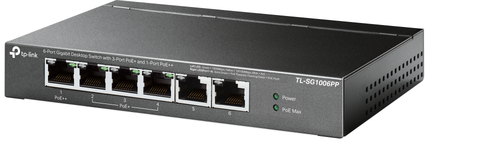

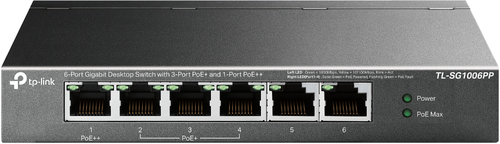

TP-Link TL-SG1006PP network switch
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- Brand
- TP-Link
- Product code
- TAPO C520WS
- SKU
- 212G4LSKD91NW
- EAN/GTIN
- 4895252500332
- 6× 10/100/1000 Mbps RJ45 ports

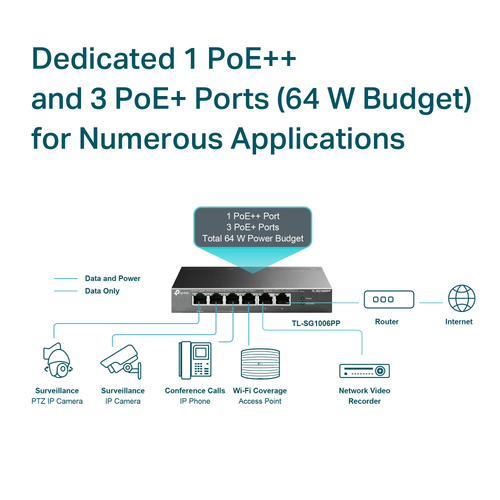

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*

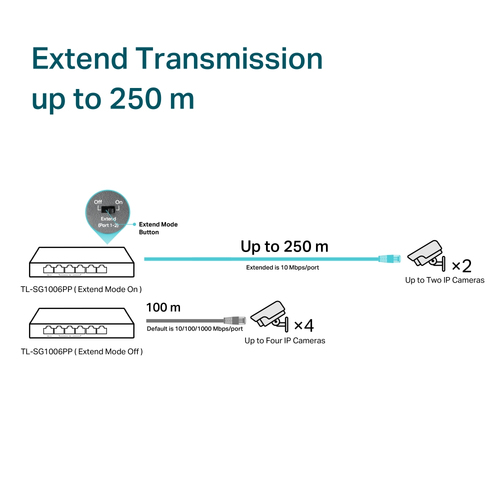

- Up to 250m data and power transmitting range under Extend Mode**

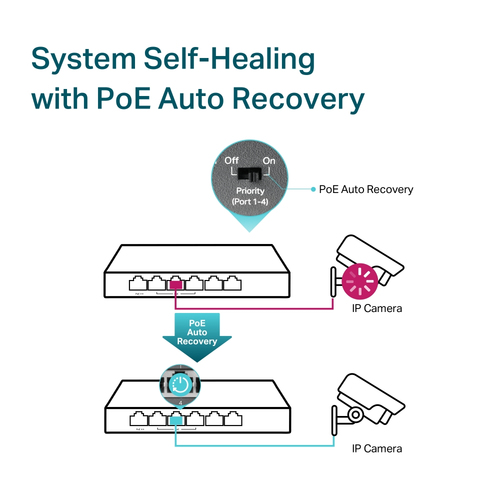

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

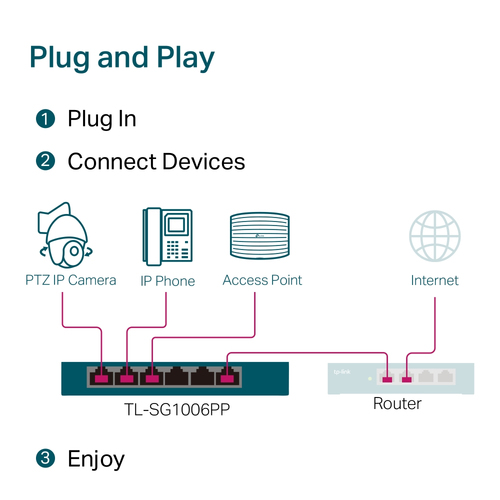

- Plug and Play, no configuration and installation required
€80.13
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC/PoE |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (typical) | 4.75 W |
| Power consumption (max) | 71.46 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 64 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 16.2 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
