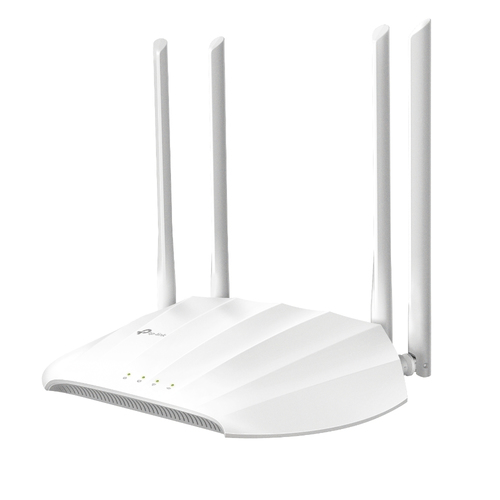

TP-Link TL-WA1201
TP-Link AC1200 Wireless Access Point
- Brand
- TP-Link
- Product code
- TL-WA1201
- SKU
- DN8WSRDVJ2LPG
- EAN/GTIN
- 6935364052836
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Captive Portal – Offers a designed portal page for heightened security and marketing
€58.23
(Inc. VAT)
(Delivery 2-4 working days)
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power (CE) | <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) |
| Transmitting power (FCC) | <30dBm(2.4GHz&5GHz) |
| Receiver sensitivity | 5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm , 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Device type identification | DHCP options |
| Auto Wireless Distribution System (WDS) | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| DHCP server | Yes |
| DHCP client | Yes |
| Supported network protocols | IPv4, IPv6 |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Design | |
| Placement | Table |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 4 |
| Performance | |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 145.5 mm |
| Height | 37 mm |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 255 mm |
| Package height | 69 mm |
| Package weight | 860 g |
| Package type | Box |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
