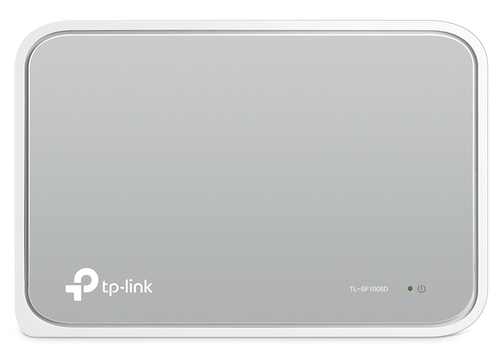

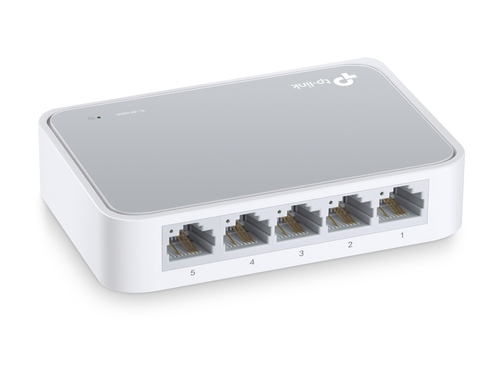

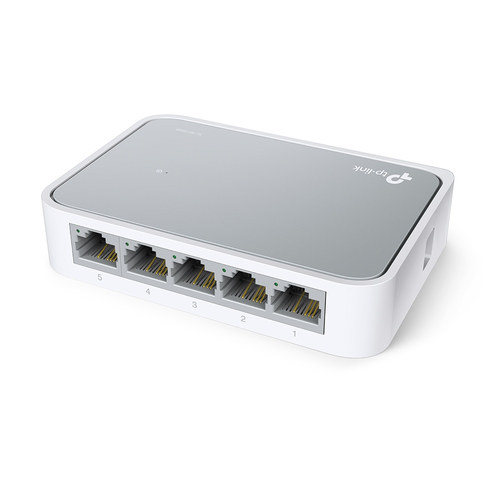

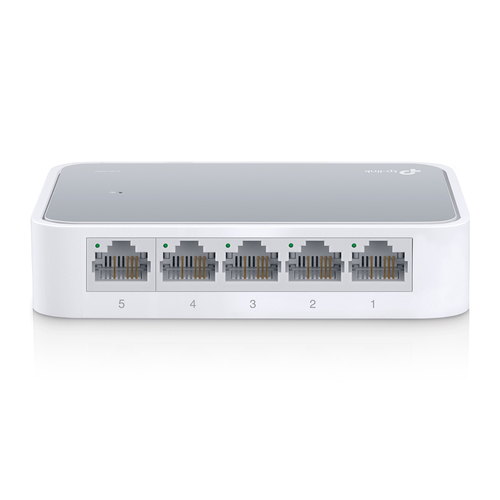

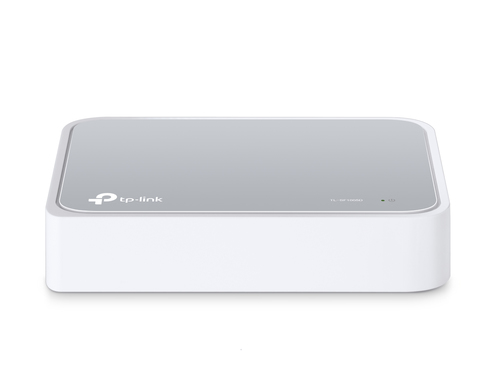

TP-Link 5-Port 10/100Mbps Desktop Network Switch
- Brand
- TP-Link
- Product code
- TL-SF1005D V15
- SKU
- Q32U8G5Q8VN8S
- EAN/GTIN
- 6935364083090
- 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 68%
- IEEE 802.3X flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Product Info
What This Product Does
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Certification | FCC, CE, RoHS |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 1.48 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 6.38 BTU/h |
| Weight & dimensions | |
| Width | 103.5 mm |
| Depth | 69.5 mm |
| Height | 22 mm |
| Packaging data | |
| Package width | 108 mm |
| Package depth | 91 mm |
| Package height | 85 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Connectivity LEDs | Y |
