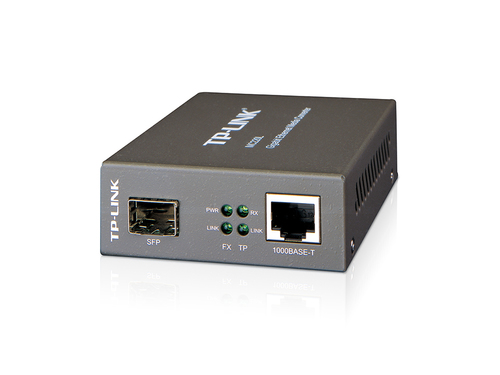

TP-Link Gigabit SFP Media Converter
- Brand
- TP-Link
- Product code
- MC220L
- SKU
- NPBZNLLDF5TZV
- EAN/GTIN
- 6935364081294
- Wired
- 1000 Mbit/s 10000 m
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode, Single-mode Fiber ports quantity: 1 SFP
- Black
Product Info
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 5e, 5 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Design | |
| Internal | No |
| LED indicators | Link |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Certification | FCC, CE |
| Power | |
| Power consumption (max) | 1.7 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 420 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| Full duplex | Yes |
